UPS INSTALLATION
Eaton 9355 UPS (10/15 kVA) User's Guide S 164201594 Rev D www.eaton.com/powerquality
20
4. Determine your equipment's grounding requirements according to
your local electrical code.
5. Verify that the UPS battery circuit breaker is in the OFF position
(see Figure 11).

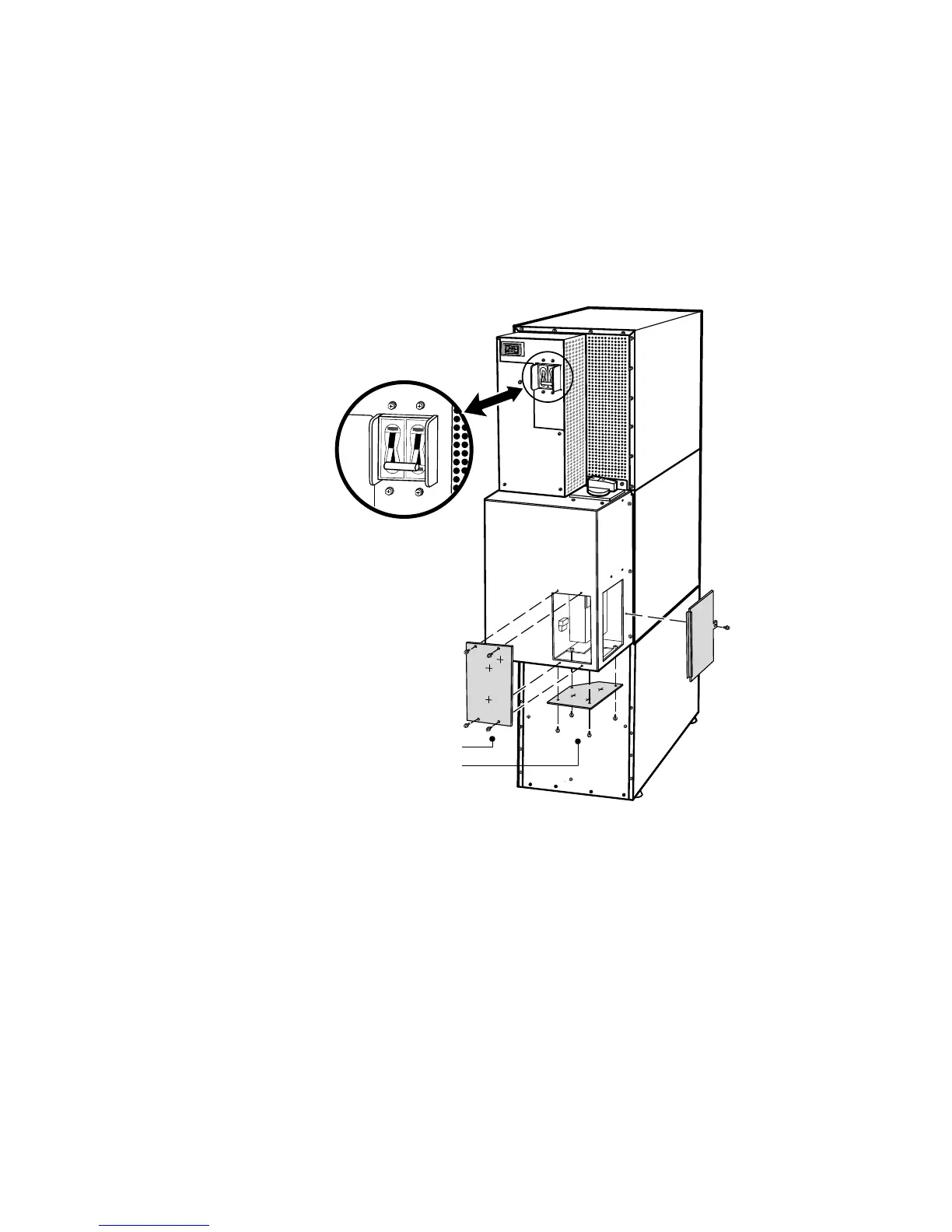

Battery Circuit Breaker
UPS Wiring
Access Cover
Conduit Landing Plates
Figure 11. UPS Rear View (3-High Shown)
6. For UPS only installations, continue to Step 7; for UPS installations
with an input isolation transformer, proceed to Step 10.
7. Remove the UPS wiring access cover and one of the conduit
landing plates and retain (see Figure 11).
8. Punch two holes in the conduit landing plate for the input and
output conduit using a Greenlee
®
punch or similar device.
9. Proceed to Step 12.
