Appendix C—Dimension drawings
POWERXL SERIES VFDS MN040060EN—September 2020 www.eaton.com
Approximate dimensions in inches (mm).

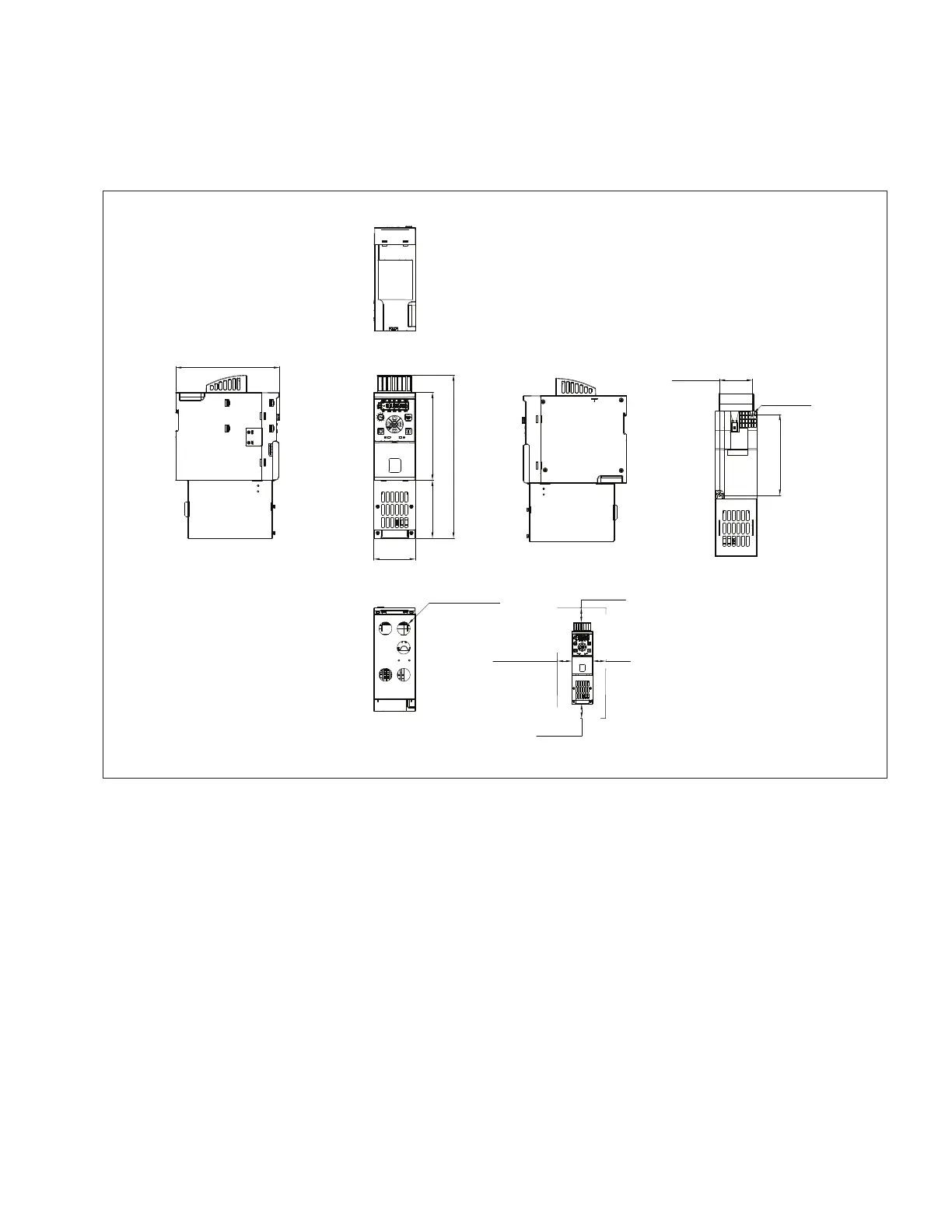

Figure 22. DM1 Pro FR1 with NEMA 1 kit dimension drawing.
Minimum Dimensions:
A = Free space on the left of drive
B = Free space on the right of drive
C = Free space above drive
D = Free space below drive
Notes:
A=0 for drive without option card
A=70mm for drive with option card
DM1 PRO FR1 With NEMA 1 Kit Dimension Drawing
281.97 [11.110]
57.5 [2.266]
Ø5.2 [Ø0.205]
140 [5.516]
72 [2.837]
152 [5.989]
100 [3.940]
5-Ø22.5 [Ø0.887]
180 [7.092]
C(50[1.969])
A(0/70[2.756])
B(0)
D(40[1.575])
