Chapter 2 - Keypad overview for DM1 Pro
POWERXL DM1 SERIES VARIABLE FREQUENCY DRIVES MN040049EN—September 2021 www.eaton.com
Menu navigation - remote keypad
This section provides basic instruction on navigating each
section in the menu structure from the remote keypad.

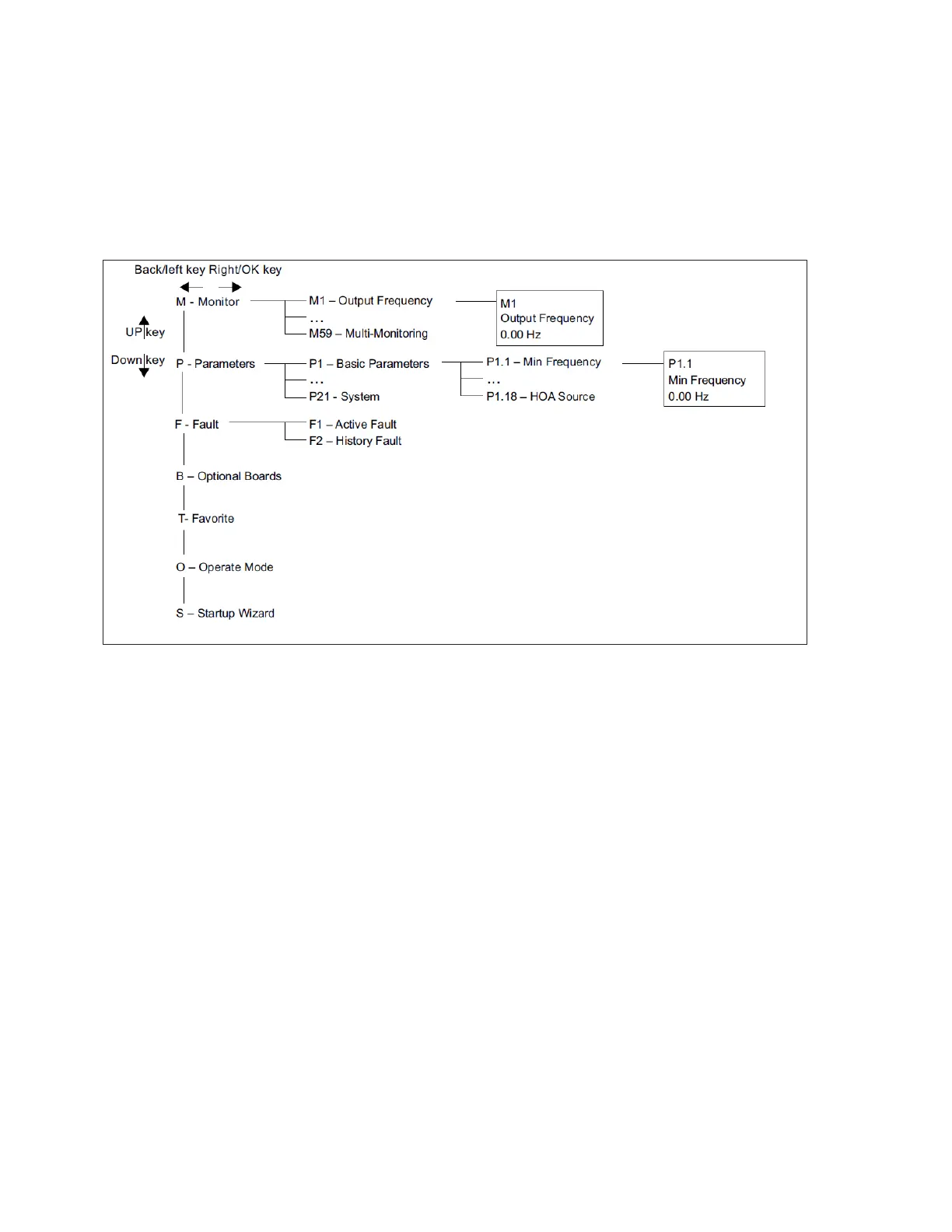

Figure 8. Remote keypad menu navigation.
