8. RACK MOUNT ADJUSTMENT

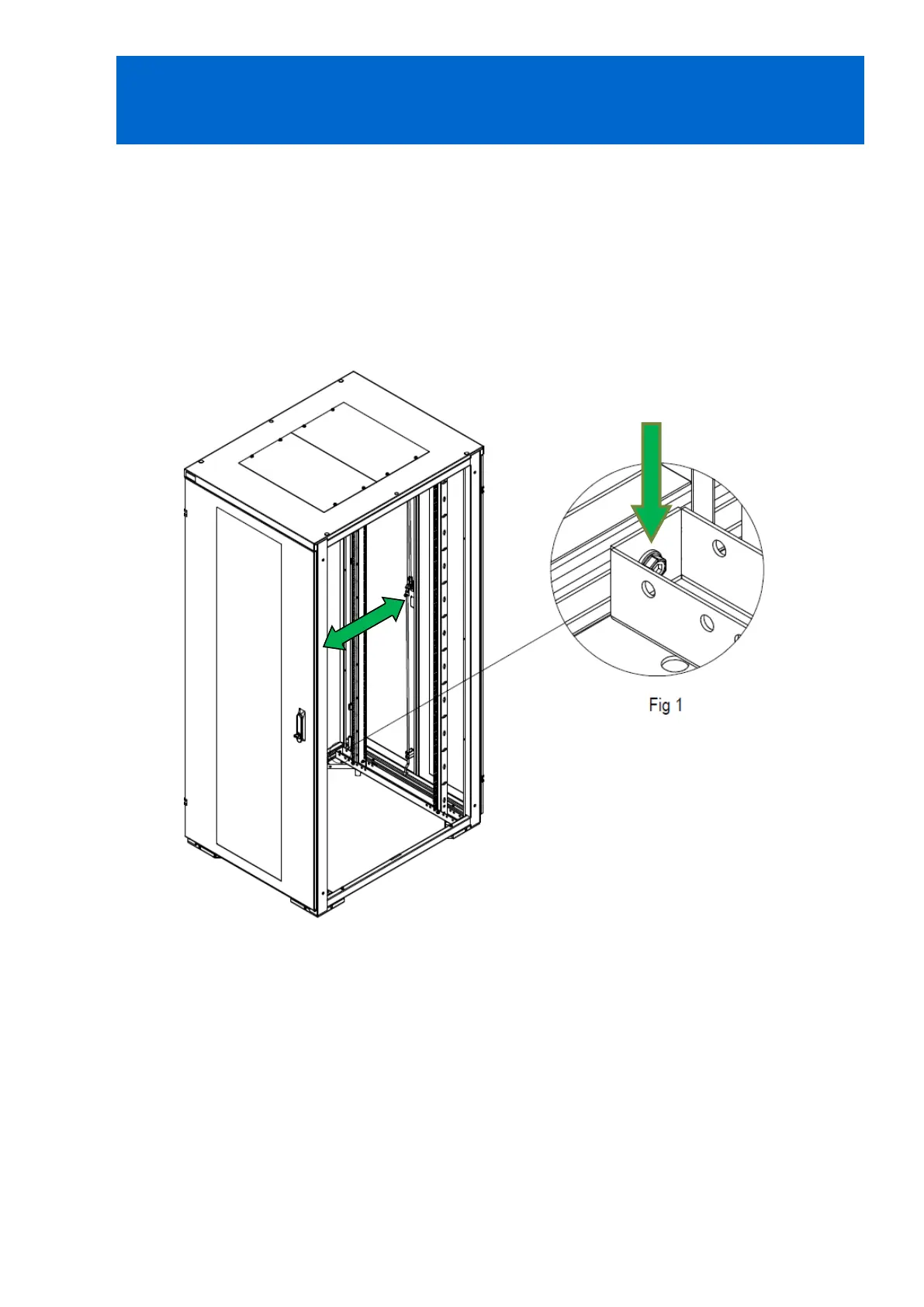

1. Loosen the four bolts using a 5mm Allen key, do not remove the bolt (Fig 1).
2. Slide rails to desired location.
3. Ensuring the rails are vertical, tighten the bolt with 5mm Allen key (Fig 1).
