6. BAYING THE ENCLOSURE

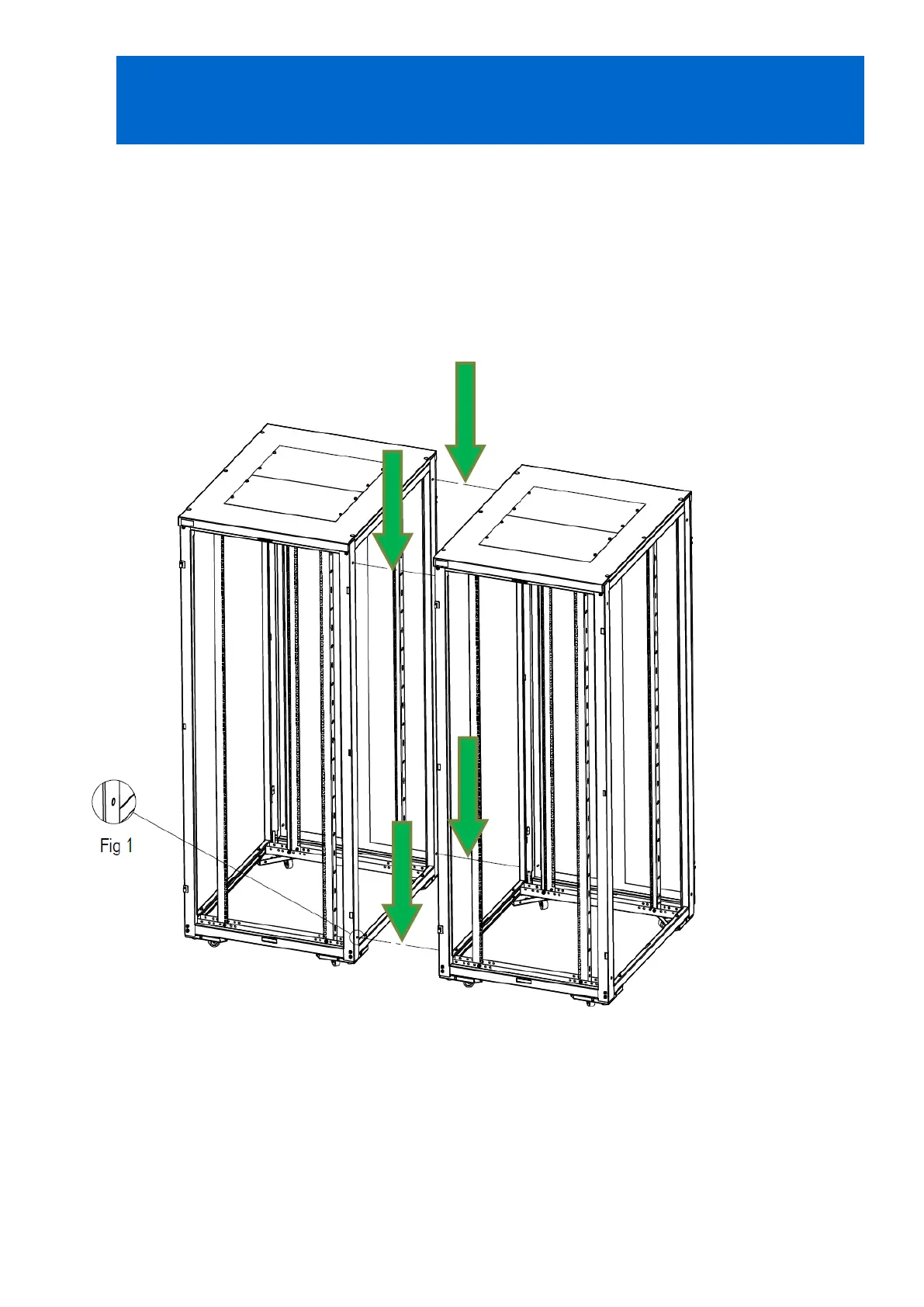

1. Remove 4 blanking grommits per enclosure (Fig 1).
2. Position and level the adjacent enclosure frames. Ensure that the frames are precisely
aligned both vertically and front-to-back.
3. Bolt the adjacent frames together with the 4 nuts, bolts, plain washers and serrated
washers included in the baying kit, part number NRA BTK.
IMAGE WITH DOORS AND SIDE PANELS REMOVED
RE Series Enclosure Installaon Guide Issue 8
