Eaton Ulusoy URING12-24 - LLF - SF6 User Manual

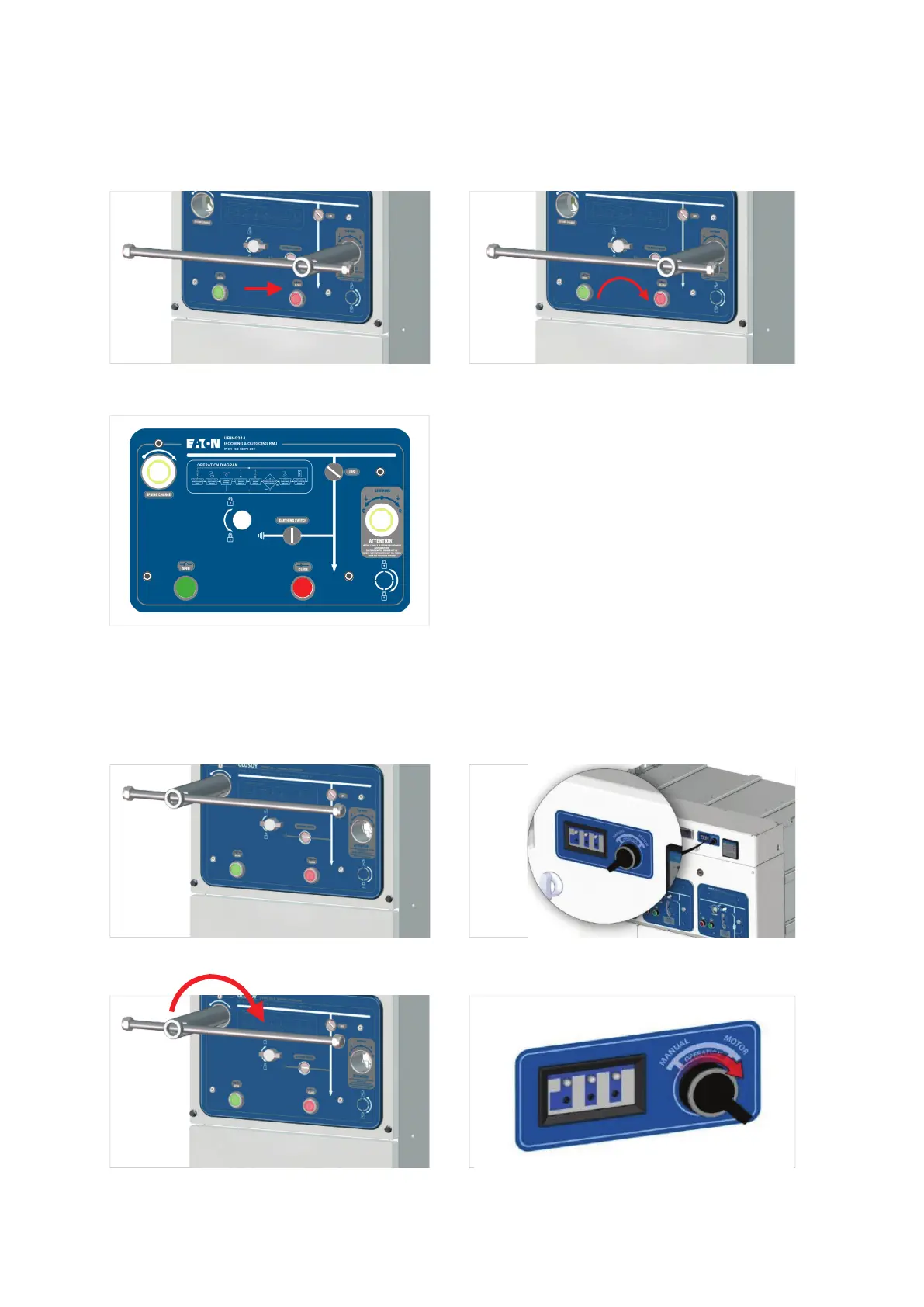

Insert the operating handle to the hole.
Remove the handle and check the position of the
earth indicator for open position.
Turn it clock-wise.
8.1.2 Opening the Earthing Switch
8.1.3 Charging Spring
Insert the handle to the spring charging hole.
Turn it anti-clock wise to charge the spring and
remove the handle.
Find manual-motor selection button.
Turn it from manual to motor position to charge the
spring, and spring should be charged by motor.
8 Ulusoy URING12-24 - LLF - SF Insulated Compact RMU Switchgear with Fuse User Manual May 2020 www.eaton.com
6
