URING12-24 RMU is a SF6 insulated ring main unit for the secondary distribution networks. URING12-24
can be supplied in a number of different congurations suitable for most switching applications in 12/24 kV
distribution network.
The URING12-24 RMU has a completely sealed system with a stainless steel tank containing all the live parts
and switching functions with SF6 gas. A sealed steel tank with constant atmospheric conditions ensures a
high level of reliability as well as personal safety and a virtually maintenance-free system. URING12-24 LLF
is 3 way unit in a single SF6 tank. Two incoming-outgoing unit with LBS and one transformer
protection unit with fuse combination. This is 3 way design. URING12-24 RMU can be designed up to 5 way
unit as extensible or non extensible system. Switching device in URING12-24 is three positioning (close-openearthed)
LBS. It has high number of switching operation and high short circuit withstand.
1

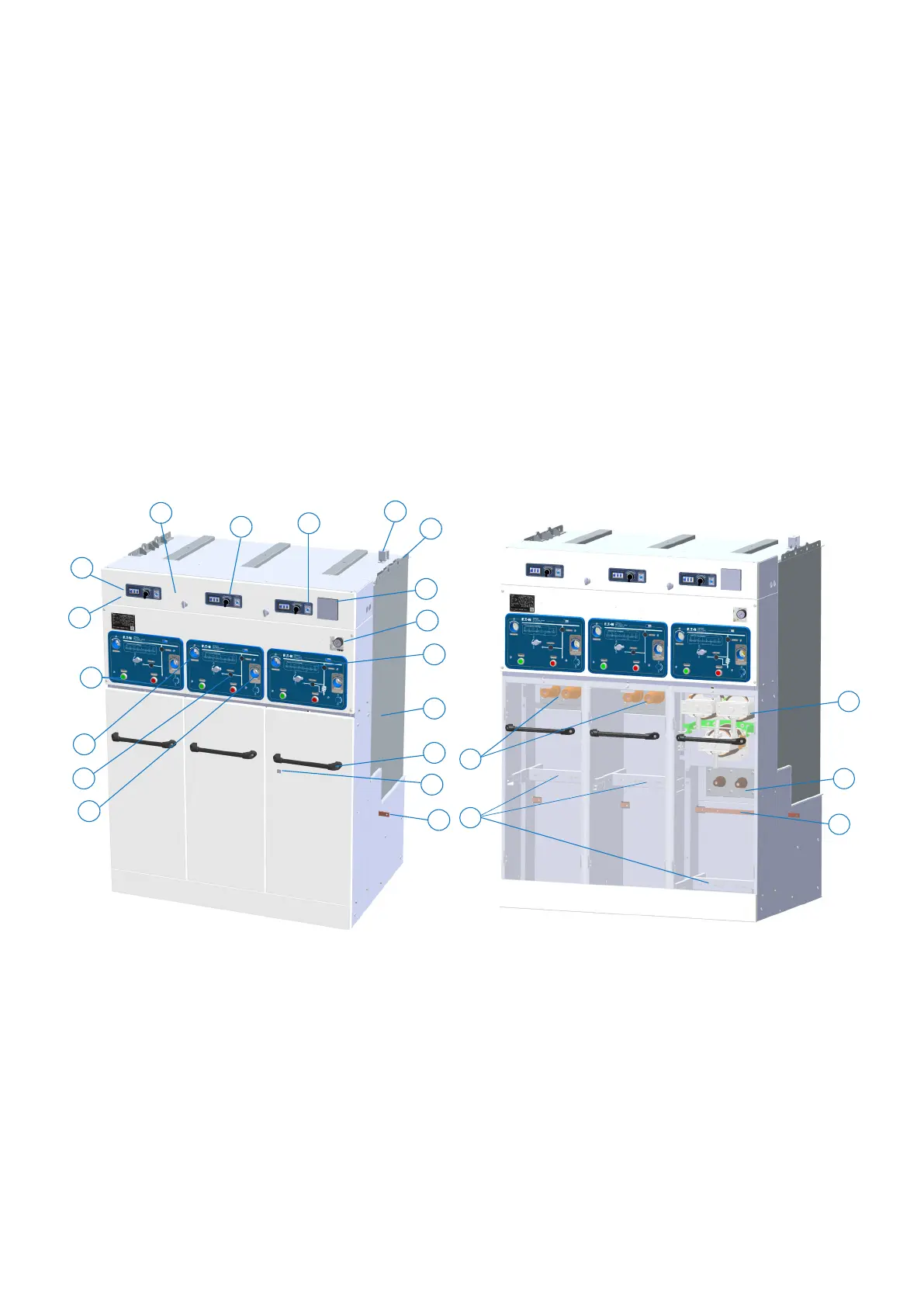

1 - LV Panel
2 - Voltage Indicator
3 - Manuel Opening & Closing Buttons
4 - Spring Charging Hole
5 - Switch & Earth Switch Position Indicator
6 - Earth Switch Operation Hole
13 - Annunciator
14 - Holes for Crain
15 - SF6 Valve
16 - Remote Controller Socket
17 - Motor & Manuel Selection Switch
18 - LV Panel Cover Button
19 - Cable Bushings (Interface-C)
20 - Cable Clamps
21 - MV Fuse Holders
22 - Cable Bushings (Interface-A)
23 - Earth Bar
7 - Earthing Bar
8 - Fuse Status Indicator
9 - Door Handle
10 - Stainless Steel SF6 Tank
11 - Operation Sequence
12 - Manometer
2
4
5
6
7
8
9
10
11
12
13
14
15
16
18
17
3
19
20
21
22
23
