8.1.4 Closing the LBS
8.2 CUTTING ENERGY
8.2.1 Opening the LBS

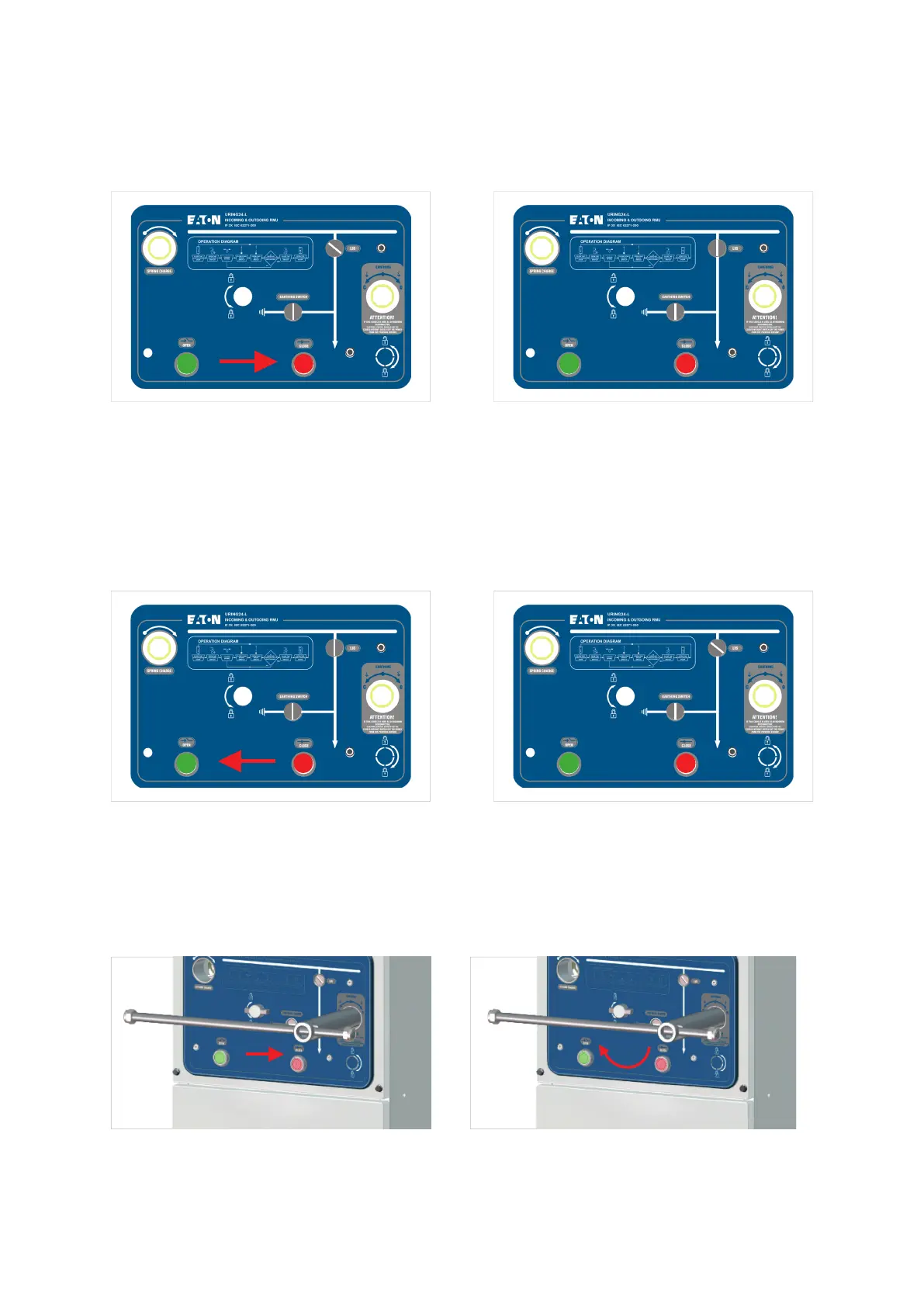

Find the manual Close (I) – Open (O) Buttons.
Press Closing (I) button to close.
Find the manual Close (I) – Open (O) Buttons.
Press Opening (O) button to close.
Check the position indicator for close position.
Check the position indicator for open position.
Put the lever into the earthing switch lever hole. Rotate the lever in the direction of the arrow.
(counterclockwise)
8.2.2 Closing Earthing Switch
Ulusoy URING12-24 - LLF - SF Insulated Compact RMU Switchgear with Fuse User Manual May 2020 www.eaton.com 9
6

Eaton Ulusoy URING12-24 - LLF - SF6 Specifications

General

Rated Voltage	24 kV
Rated Current	630 A
Insulation	SF6 Gas
Short-circuit Current	25 kA
Operating Mechanism	Spring-operated
Mechanical Life	10, 000 operations
Weight	250 kg (approximate)
