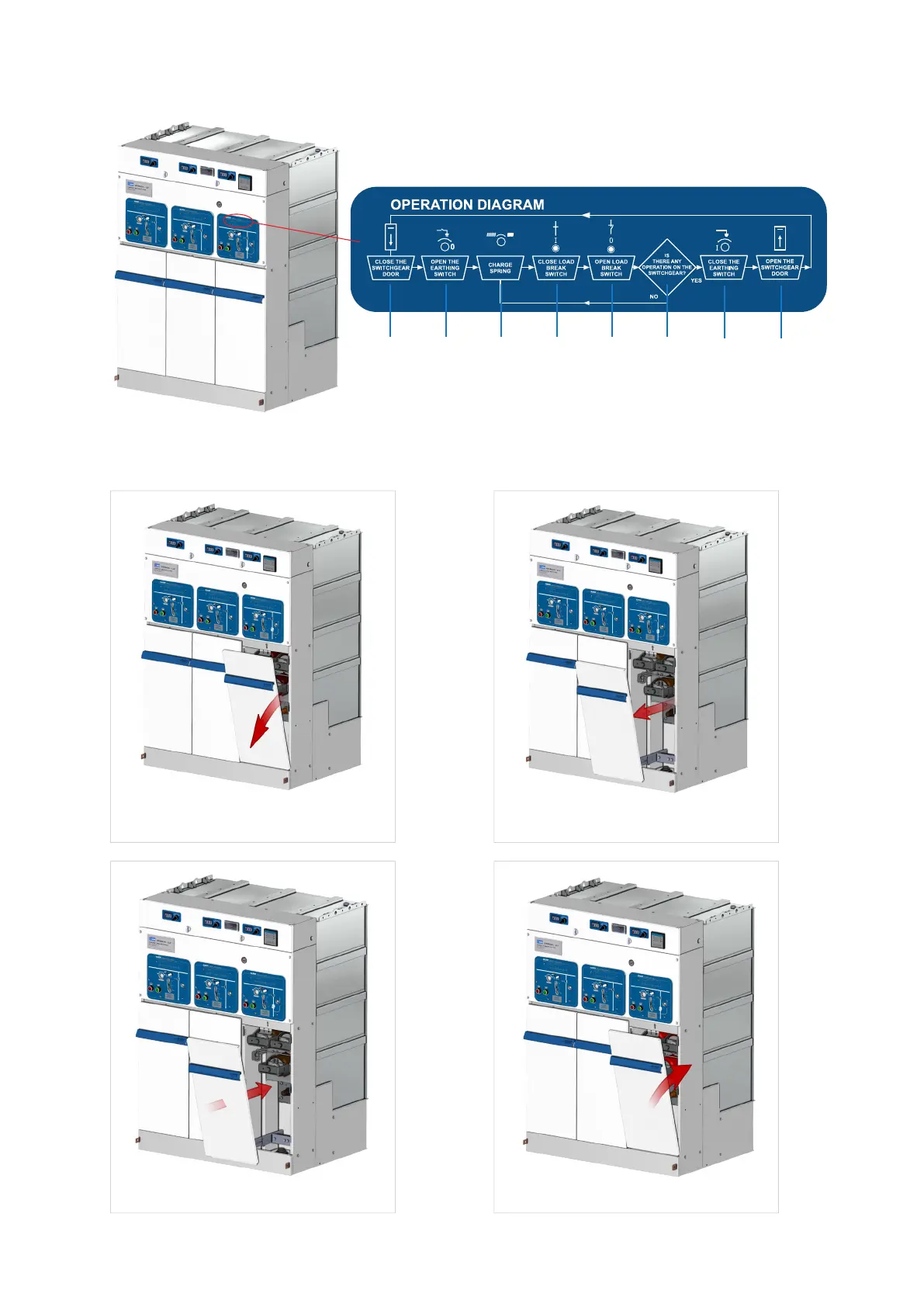

8.1.1 Closing the Switchgear Door
Put the bottom side of the door to the
switchgear.
Pull the door down.
Push the door towards the switchgear.
The door is now closed.
Ulusoy URING12-24 - LLF - SF Insulated Compact RMU Switchgear with Fuse User Manual May 2020 www.eaton.com 7
