Eaton VCP-W Series User Manual

11
Instruction Booklet IB131006EN
Effective March 2019
Instructions for installation,
operation, and maintenance of type
VCP-W vacuum circuit breakers
EATON www.eaton.com
1.4 Outlines and dimensions
29.13
(739.90)
27.80
(706.12)
29.56
(750.82)
2.25
(57.15)
20.88
(530.35)
24.63
(625.60)

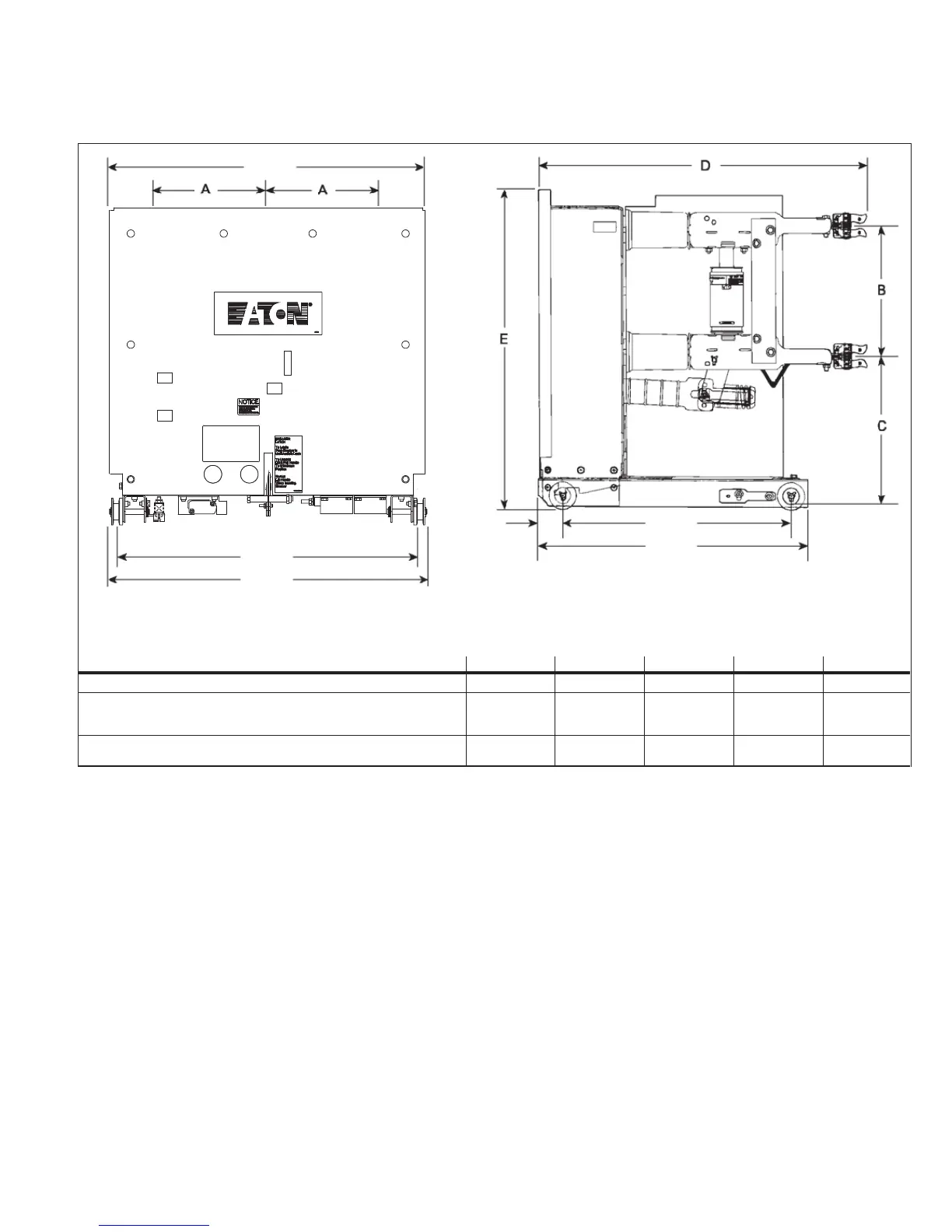

Figure 1. Type VCP-W (K = 1 & MVA), VCPW-SE, and VCP-WC circuit breaker outlines and dimensions in inches (mm).
Breaker Identification A B C D E
240 VCP-W, 270 VCP-W & 270 VCP-WC 10 (254.00) 14 (355.60) 16.25 (412.75) 34.80 (883.92) 35.22 (894.59)
50/350, 50/350C, 150/1000, 150/1000C, 150/63, 3000A VCP-W, VCPW-SE,VCP-
WC & VCP-W K=1>=50 kA
Except those immediately below
10 (254.00) 12 (304.80) 13.63 (346.20) 29.94 (760.48) 31.44 (798.58)
All Other VCP-W,VCPW-SE & VCP-W K=1<=40 kA
including 50/25C & 150/25C, 1200 A
10 (254.00) 12 (304.80) 13.63 (346.20) 29.81 (757.17) 29.4 4 (747.78)
