Eaton VCP-W Series User Manual

71
Instruction Booklet IB131006EN
Effective March 2019
Instructions for installation,
operation, and maintenance of type
VCP-W vacuum circuit breakers
EATON www.eaton.com
Figure 46. Optional automatic/manual secondary for BPI pan assembly.
This optional accessory is style number 1C20335G01.
8.3 Optional 3,000 A ball screw drive for BPI pan assembly
A ball screw kit has been developed for the BPI pan assembly to
reduce the required force to manually rack in a 63 kA or 3,000 A
breaker. If the customer is using a MR2 system to lever in the
breakers, then this system is not required.
This optional accessory is style number 1C20376G01.

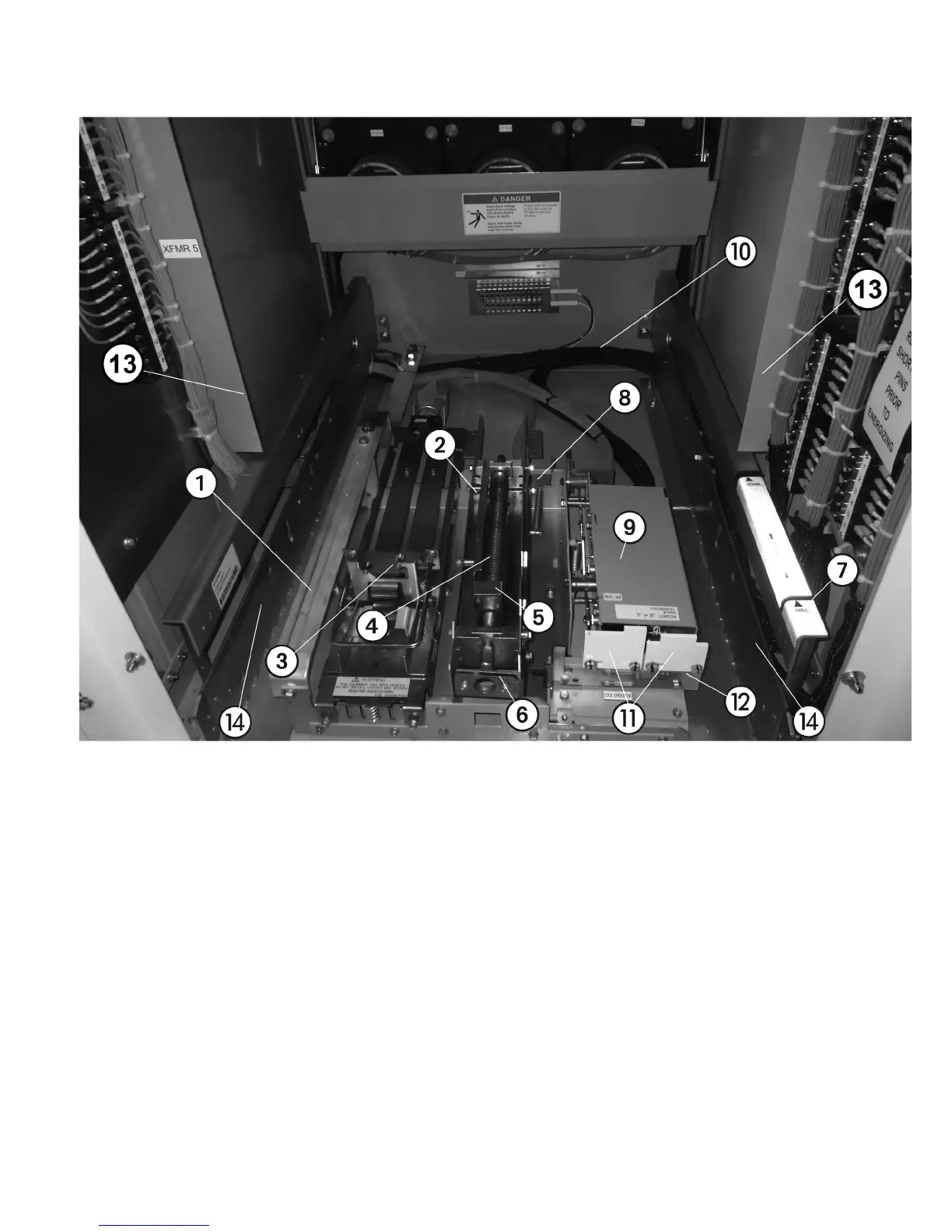

Legend
1. Ground contacts
2 Levering system.
3. Automatic/manual secondary
4. Racking screw
5. Moving block
6. Slider
7. Breaker position indication
8. Slider interlocks
9. MOC switch
10. TOC switch location (see Figure 12 for actual TOC)
11. Coding plates
12. Provision for padlocking
13. Picture frame
14. Breaker rail
