Eaton VCP-W Series User Manual

43
Instruction Booklet IB131006EN
Effective March 2019
Instructions for installation,
operation, and maintenance of type
VCP-W vacuum circuit breakers
EATON www.eaton.com

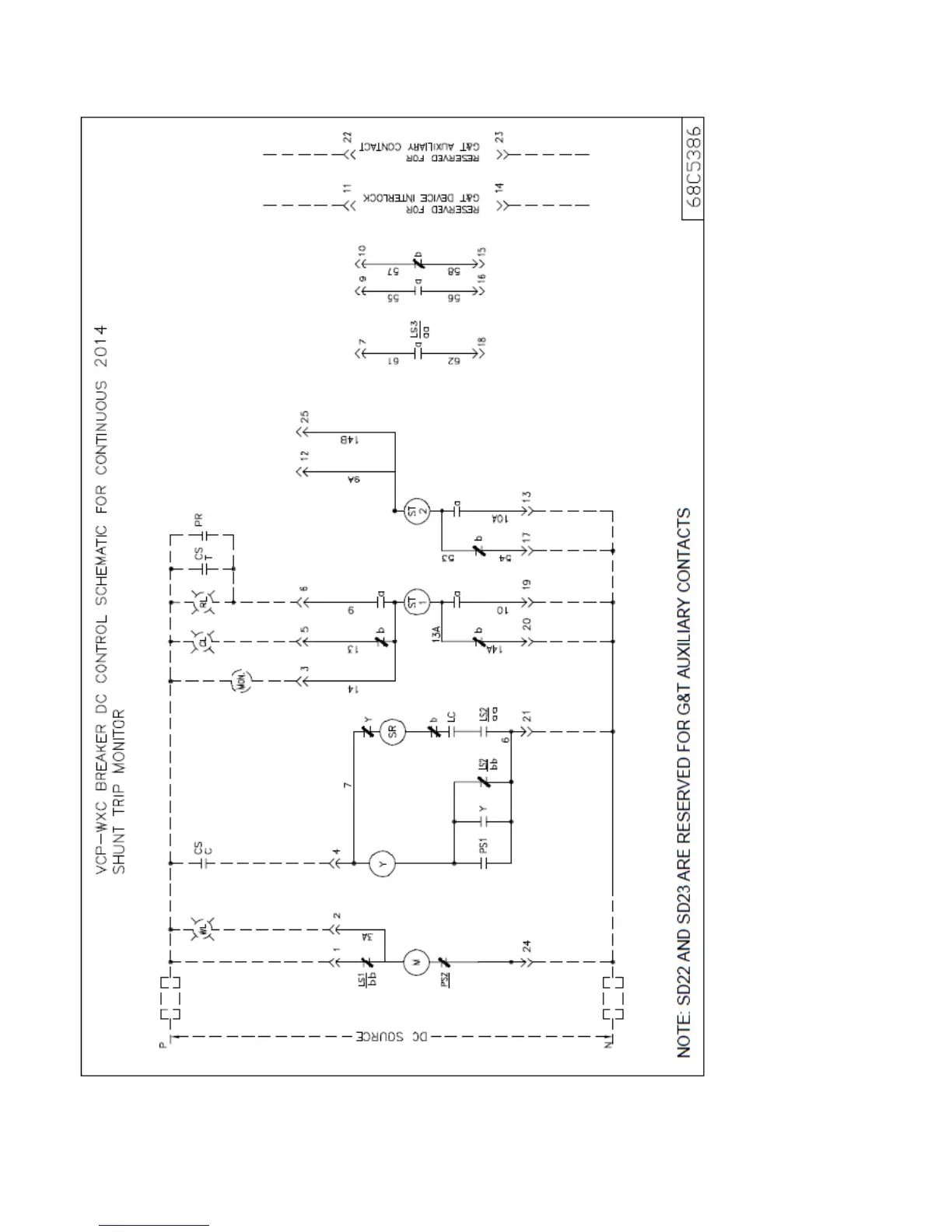

Figure 23. 15 kV VCP-WXC 63 kA 1200-3000 A special power plant breakers, styles: 4A35390G10, 4A35391G10,
4A35392G10 - DC control scheme and diagram. (Dashed lines represent customer wiring and components.)
ote:N This differs from the standard VCP-W breaker with the addition of a third motor-cut-off switch and other wiring changes.
