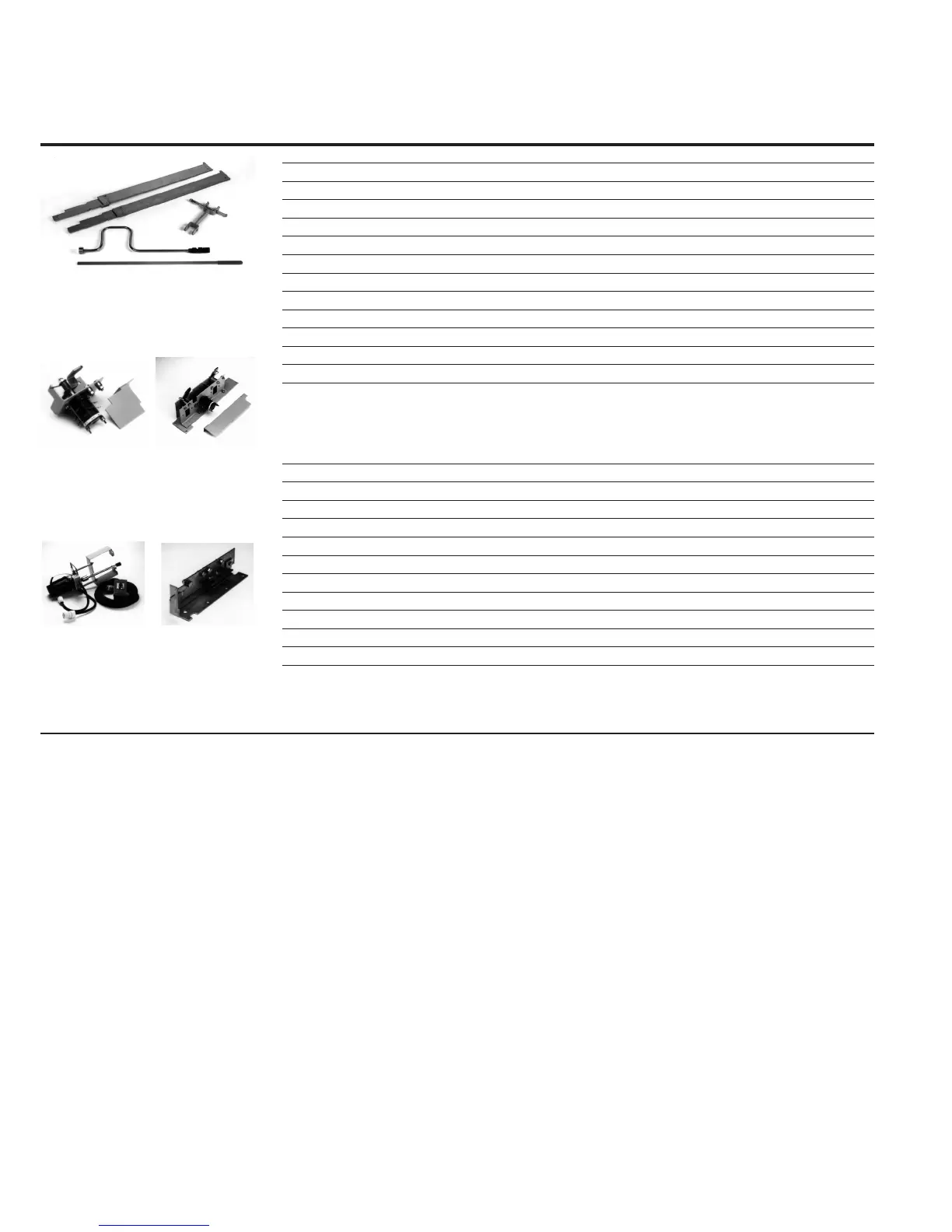

Table 8. Narrow design accessories for 26-inch-wide breaker compartments.
Description Style number
TOC (truck-operated cell) switch 4A/3B contacts 7797C20G01
MOC (mechanism-operated cell) switch
4A/3B contacts (test and connect) 7797C24G02
4A/3B contacts (connect only) 7797C24G03
8A/6B contacts (test and connect) 7797C24G04
8A/6B contacts (connect only) 7797C24G05
12A/9B contacts (test and connect) 7797C24G06
Spin-free levering-in crank with clutch 701B601G11
Primary contact spanner wrench 502A850G01
Extension rails (right and left, one set) 7813C41G03
Set of rail clamps 6511C83G12
Lifting yoke 691C607G02
Manual charging handle 8064A02G11
Set of ND accessories
Spin-free levering-in crank with clutch
Primary contact spanner wrench
Extension rails (right and left, one set)
Manual charging handle
Set of rail clamps
1A30136G04
Portable lifter (26-/36-inch convertible) 1C19086H01
MV breaker lift pan and short extension rail kit 1C19086G01
Drawout ramp 1C14163G01
Docking transport dolly 6510C71G02
Electrical levering-in device 1A30257G01
Test jumper 1C15331G01
Test cabinets
Any DC close and any trip 8346A28G41
AC or DC close and DC trip 8346A28G42
120 Vac close and capacitor trip 8346A28G43
240 Vac close and capacitor trip 8346A28G60
Padlock/key provisions with positional interlock
Includes the padlock assembly plus a
positional interlock. This allows for key
locking the levering-in cage when the
breaker is locked in the DISCONNECT position
6510C48G01
Set of ND accessories
ND 4A/3B
TOC switch
Padlock/key
interlock
Electric levering-in
device
ND 4A/3B
MOC switch
