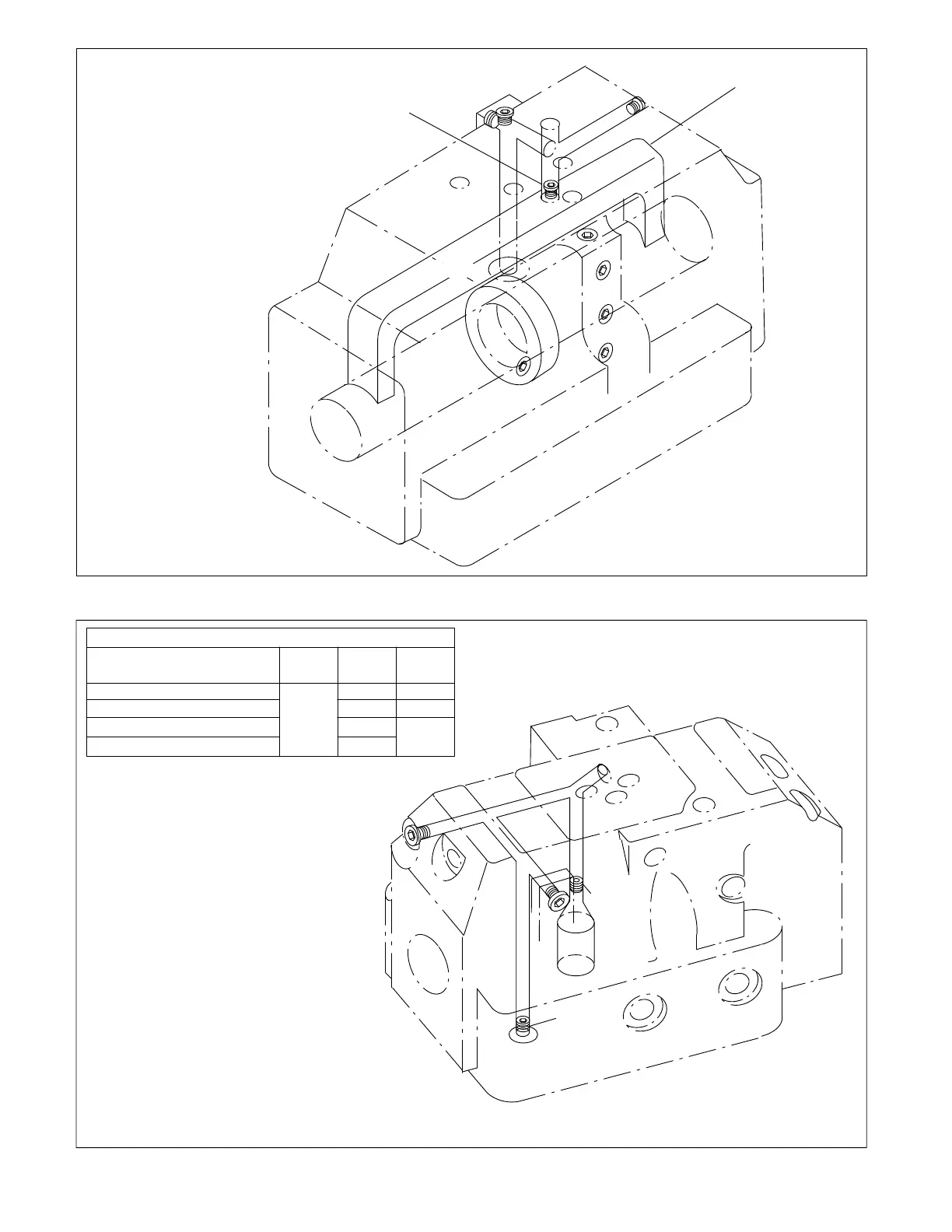

Figure 26c. DG5S4-10**-T-53 Internal Drain Passages & Plug Location
B
P
T
A
“T” Plug (Remove for
Internal Drain Models)
T
Drain Port
Internal Coring
“Y” Port
Figure 27a. DG5S-8-*-10 or DG5S-H8-*-20 Internal Pressure Passages & Plug Locations
B
P
A
T
“P” Port
Plug Installation Table
Model
“C”
Plug
“B”
Plug
“A”
Plug
DG5S-8-**-10
DG5S-8-**-E-10
DG5S-8-**-X-10
DG5S-8-**-X-E-10
*In
In
Out
In
Out
*In
* - Denotes Orifice Plug
Does
not
Exist
Out
“C” Plug
“B” Plug
