EBARA CDX 70 - Performance Curve CDX 120 Series

CENTRIFUGAL PUMPS CDX

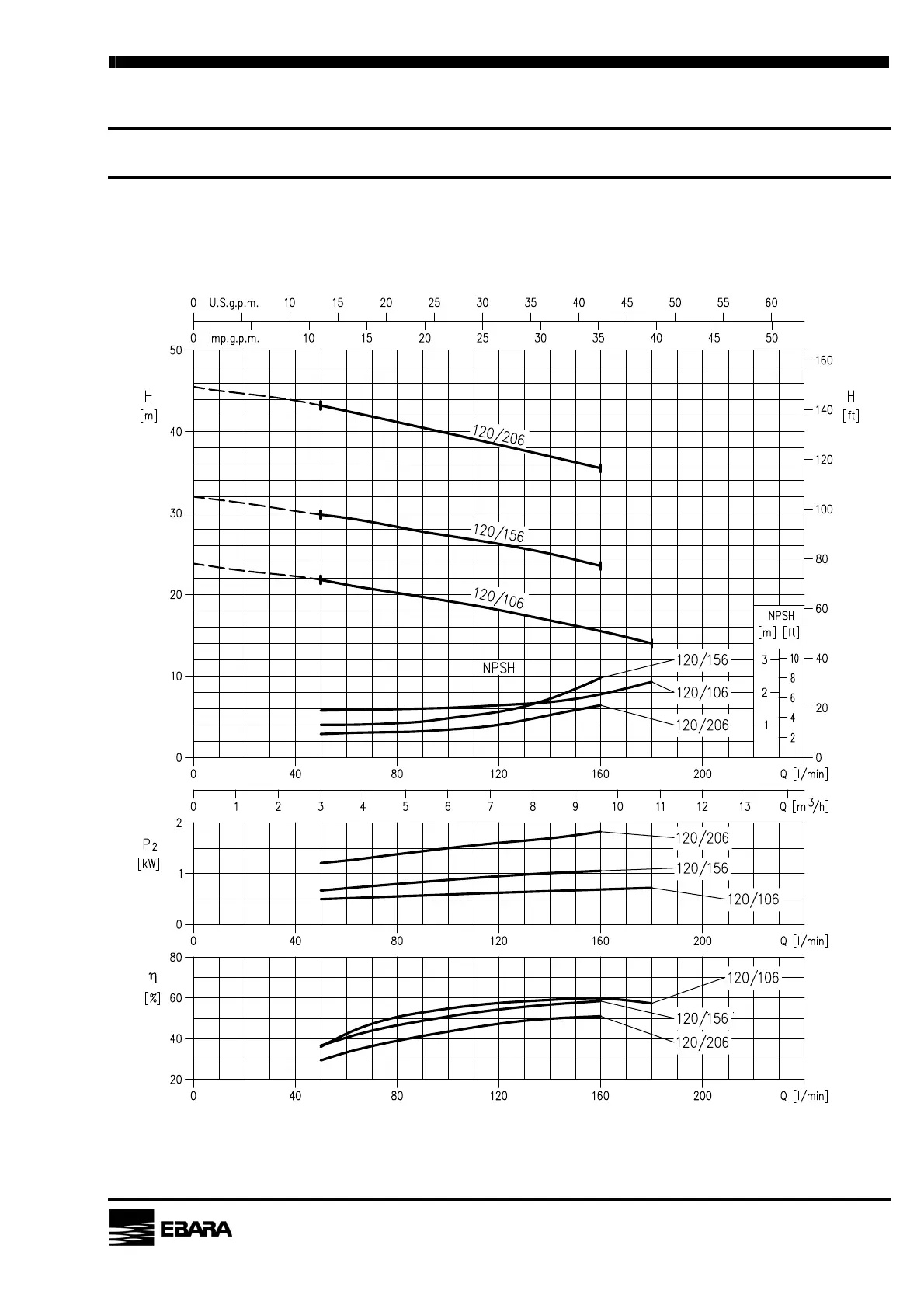

PERFORMANCE CURVE 60Hz
204
EBARA PUMPS EUROPE S.p.A.
Rev. E
CDX 120/106 (0.75 kW) - Impeller diameter = 115 mm
CDX 120/156 (1.1 kW) - Impeller diameter = 132 mm
CDX 120/206 (1.5 kW) - Impeller diameter = 157 mm
Rotation speed ≈ 3450 min
-1
Test standard: ISO 9906 – Annex A
