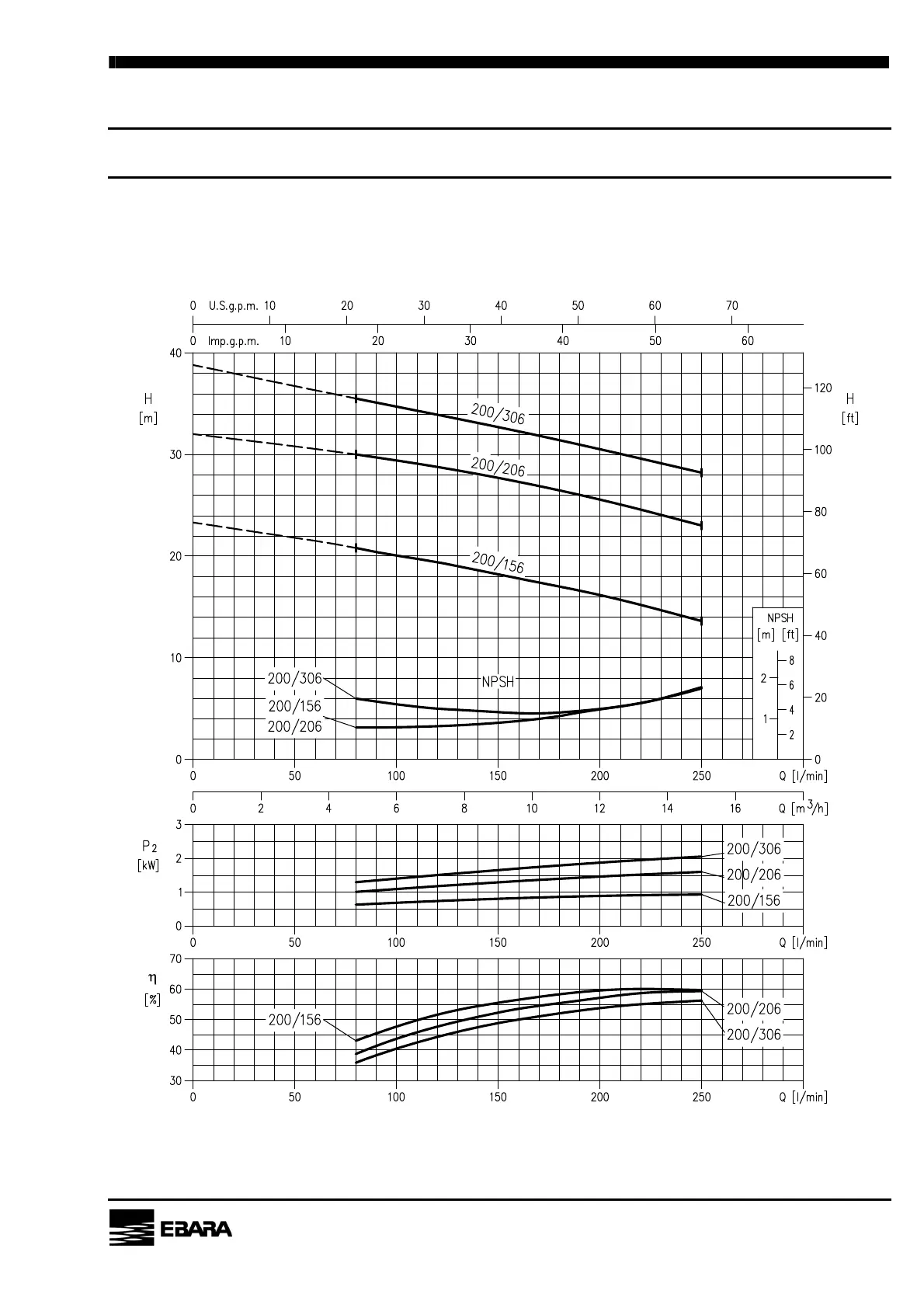

EBARA CDX 70 - Performance Curve CDX 200 Series

CENTRIFUGAL PUMPS CDX
PERFORMANCE CURVE 60Hz
205
EBARA PUMPS EUROPE S.p.A.
Rev. E
CDX 200/156 (1.1 kW) - Impeller diameter = 115 mm
CDX 200/206 (1.5 kW) - Impeller diameter = 132 mm
CDX 200/306 (2.2 kW) - Impeller diameter = 144 mm
Rotation speed ≈ 3450 min
-1
Test standard: ISO 9906 – Annex A
