EBARA FSA - Construction; Sectional View

- 8 -
Construction

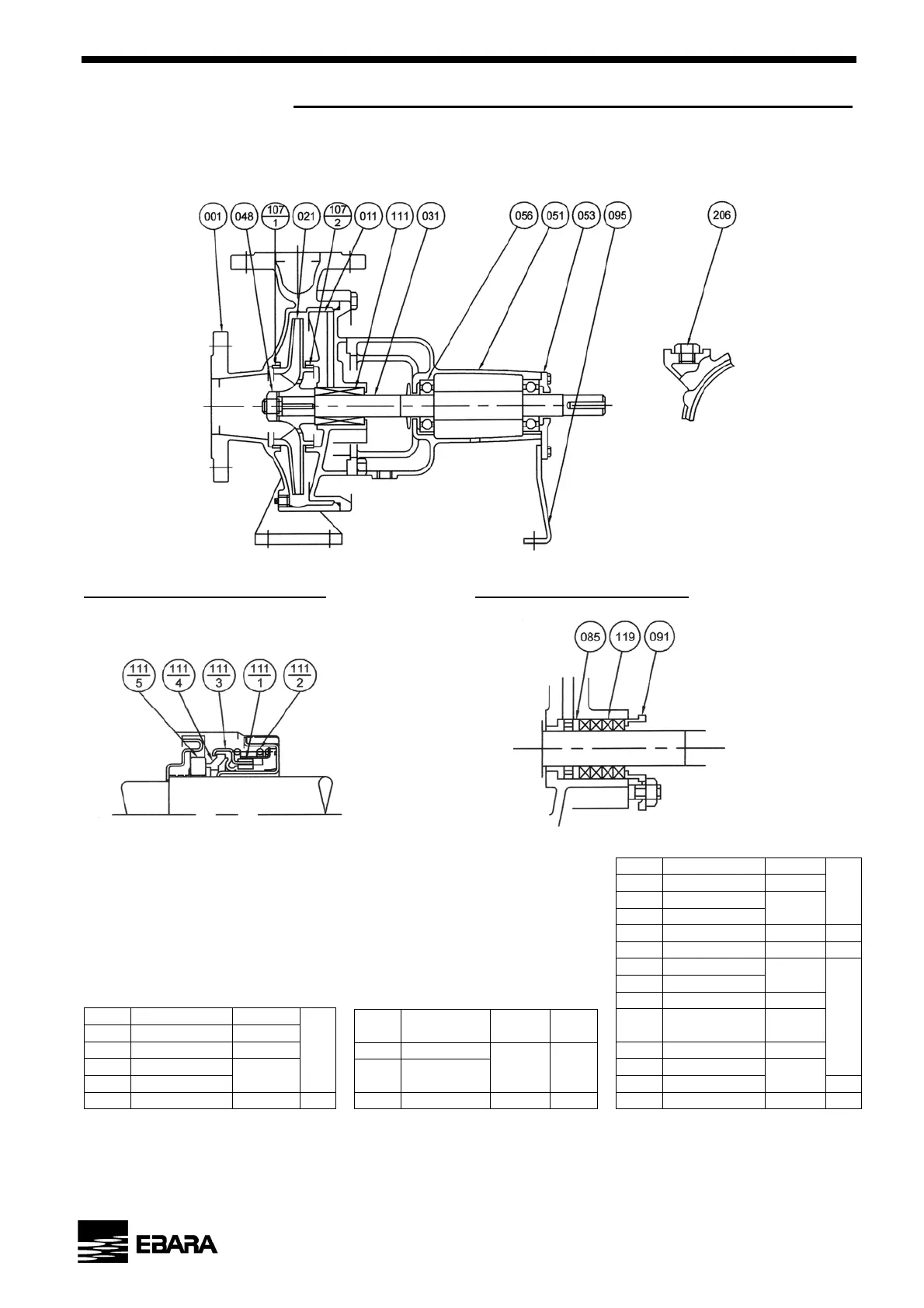

1. Sectional View
This drawing represents standard model FS. There may be some variations according to model.
Mechanical Seal Type (Standard) Gland Packing Type (Option)
Model FH
111-5 Mating Ring Ceramic
111-4 Seal Ring Carbon
111-3 Friction Ring NBR
111-2 Coil Spring
111-1 Spring Holder
Stainless
Steel
1
No. Part Name Material Qty
119
Gland
Packing
- 4 or 5
091 Gland
085
Lantern Ring
Bushing
Bronze 1
No. Part Name Material Qty
207 Plug Steel
111 Mechanical Seal -
107-2 Casing Ring
107-1 Casing Ring
Bronze
1
095 Stay Steel 1
056 Ball Bearing - 2
053 Bearing Cover
051 Bearing Housing
Cast
Iron
048 Impeller Nut Brass
031 Shaft
Stainless
Steel
021 Impeller Bronze
011 Casing Cover Cast
1
001 Casing Iron
No. Part Name Material Qty
