Eccotemp EM-2.5 - Installation Instructions

ENGLISH
PLEASE NOTE: MINI TANKS ARE FOR INDOOR PERMANENT INSTALLATIONS ONLY. BEFORE POWERING THE WATER HEATER, BE SURE THAT THE SYSTEM IS COMPLETELY FILLED WITH WATER
AND ALL AIR IS REMOVED. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE VISIT SUPPORT.ECCOTEMP.COM FOR MORE INFORMATION.
8
Support: Support.Eccotemp.com Shop Online: www.Eccotemp.com Phone: 866-356-1992
UNIT

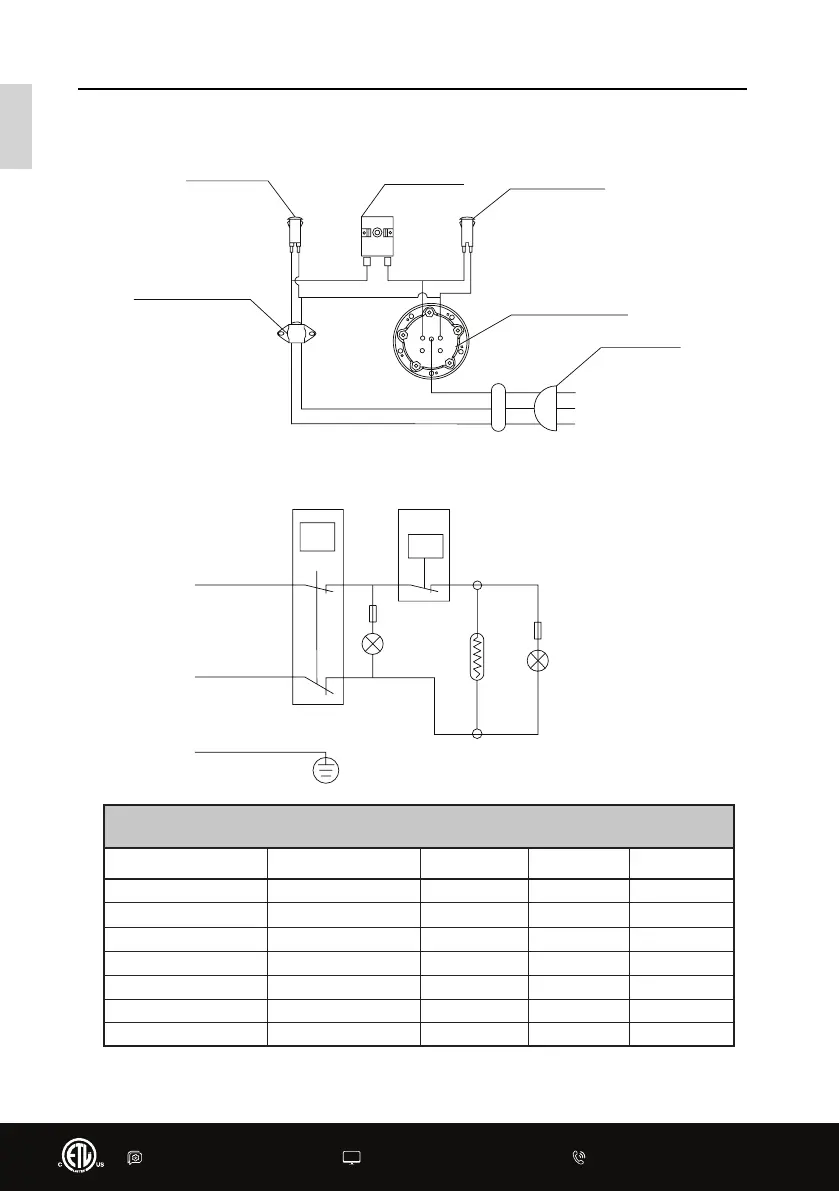

Wiring Diagram
Technical Specications
Technical Data
MODEL
Capacity
Voltage
Power @ 120 VAC
Max. Water Pressure
Weight (empty)
Amperage
Phases
Gallons
VAC
Watts
Psi
Lbs.
Amps
EM-2.5
2.5
110-120
1440
150
20
12
1
EM-4.0
4.0
110-120
1440
150
25
12
1
EM-7.0
7.0
110-120
1440
150
27
12
1
L
R
Power Lamp
Thermal
Cutout
Thermostat
Heating Element Heating Lamp(Red)
(Green)
R
N
E
Power Light
Overheat Limiter
Thermostat
Indicate Light
Heating Element
Power Plug
E
N
L
L
R
Power Lamp
Thermal
Cutout
Thermostat
Heating Element Heating Lamp(Red)
(Green)
R
N
E
Power Light
Overheat Limiter
Thermostat
Indicate Light
Heating Element
Power Plug
E
N
L
