Echo CS-2511T User Manual

DESCRIPTION CS-2511T
24 X7503332503
© 11/19 ECHO Incorporated

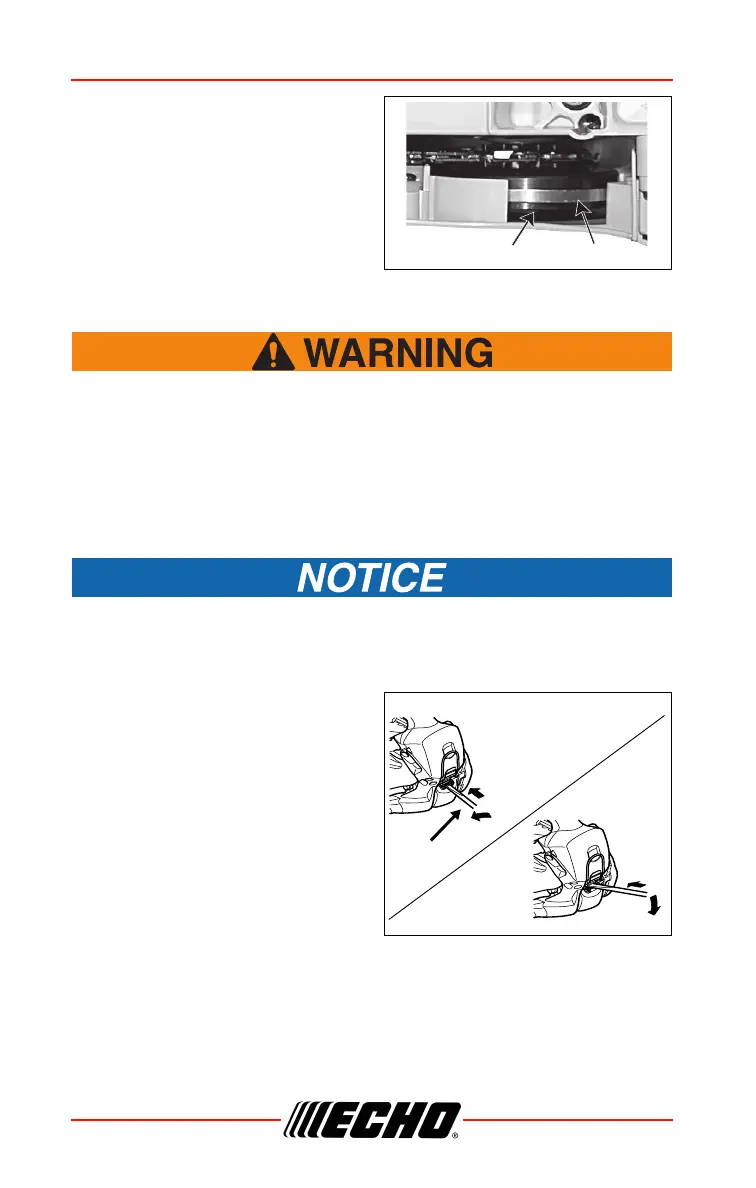

8. Turn saw over, and check Brake
Band (L) for correct position on
Clutch Drum (M). If Brake Band
is not in place around Clutch
Drum, remove Bar/Clutch Cover
Nut (B) and Bar/Clutch Cover
(C), realign, then reinstall.
Tighten Bar/Clutch Cover Nut
finger tight.
9. Adjust Saw Chain (G) tension, as instructed in “Adjusting Chain
Tension”.
Improper sprocket guard assembly can result in serious injury,
and will cause severe saw damage if unit is started. Never start
or operate saw if brake band is not in place on clutch drum.
Always check chain brake operation after replacing guard. Do
not use saw if chain brake does not function properly.
Adjusting Chain Tension
Always loosen sprocket guard nuts before turning the chain tension
adjuster, otherwise the sprocket guard and tensioner will be
damaged.
1. Release the spark plug cover
latch with the T-Wrench.
2. Disconnect the spark plug wire.
3. Unlock the chain brake and
loosen Bar/Clutch Cover Nut.
L
M
SPARK PLUG COVER LATCH
ENGAGE LATCH
RELEASE LATCH
T-Wrench

Echo CS-2511T Specifications

General

Engine Displacement	25.0 cc
Fuel Tank Capacity	190 ml
Oil Tank Capacity	140 ml
Weight (without bar and chain)	2.3 kg
Chain Pitch	3/8 in
Chain Gauge	0.050 in
Bar Length	12 in
Fuel Capacity	190 ml
Oil Capacity	140 ml
Guide Bar Length	12 in
