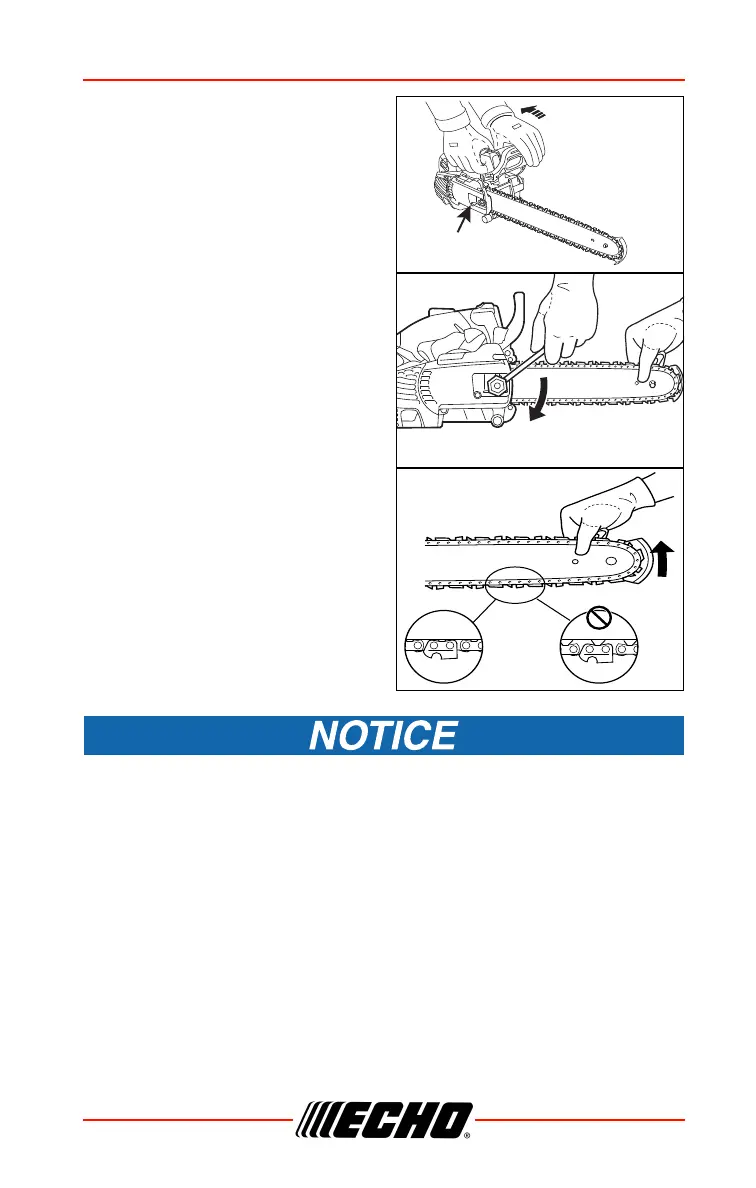

4. Hold the bar nose up, and turn
the Tension Adjuster (A)
clockwise towards (+) until chain
contacts underside of the bar.
5. Tighten Bar/Clutch Cover Nut
with the bar nose held up and
under tension.
6. Pull the chain around the bar by
hand. Loosen the Tension
Adjuster if you feel tight spots.
Tighten Bar/Clutch Cover Nut to 15 - 20 N•m (153 to 204 kgf•cm,
133-177 in•lbf). DO NOT over-tighten nut. Damage to saw can result.
7. Assemble components in reverse order.
8. Keep chain properly tensioned at all times.
Note: All chains require frequent adjustments.
A
Shown with
Kick Guard
TM
optional
Shown with optional
Kick Guard
TM
Shown with optional
Kick Guard
TM

Echo CS-2511T Specifications

General

Engine Displacement	25.0 cc
Fuel Tank Capacity	190 ml
Oil Tank Capacity	140 ml
Weight (without bar and chain)	2.3 kg
Chain Pitch	3/8 in
Chain Gauge	0.050 in
Bar Length	12 in
Fuel Capacity	190 ml
Oil Capacity	140 ml
Guide Bar Length	12 in
