Echo CS-352 User Manual

CS-352 DESCRIPTION
X7503275704 23
© 09/20 ECHO Incorporated

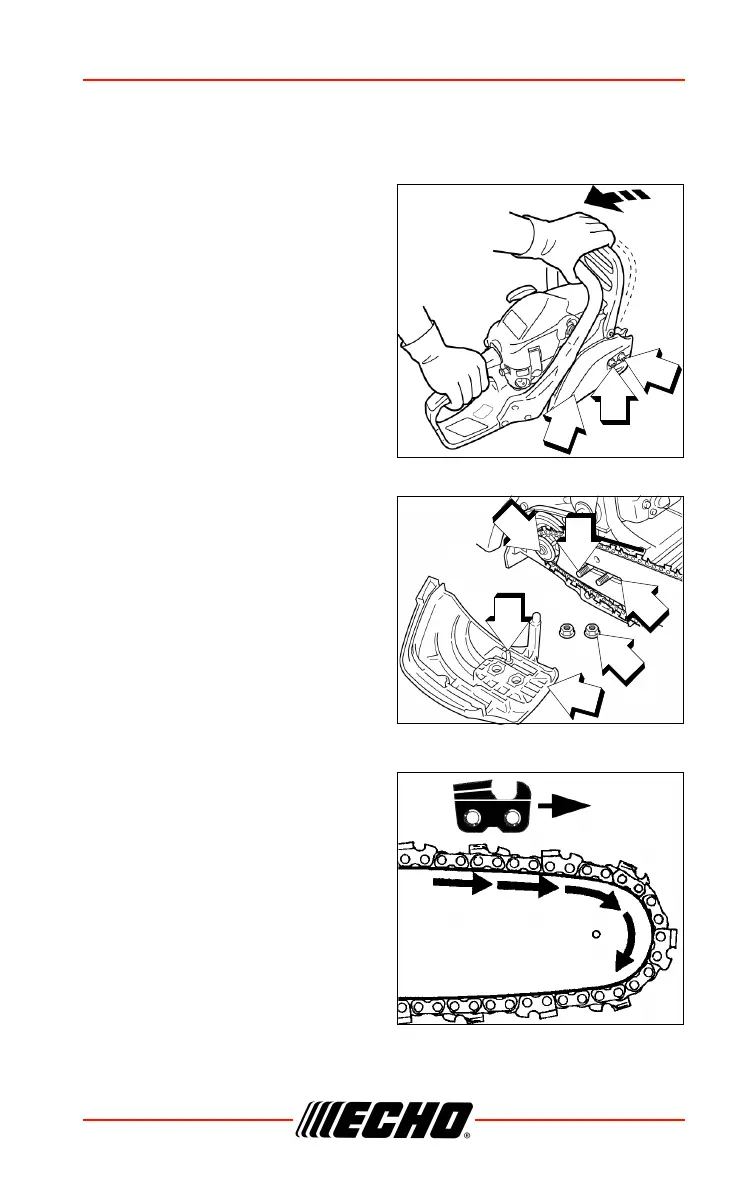

Guide Bar and Saw Chain Installation/Removal
1. Release the cylinder cover latches, and remove the cylinder cover.
2. Remove spark plug lead.
3. Remove sprocket guard nuts (A)
and remove sprocket guard (B).
4. Remove guide bar and saw chain
if necessary.
5. Unlock the chain brake, and
mount guide bar on studs (C)
and slide toward sprocket (E) to
make saw chain installation
easier. Install chain with cutters
on top of guide bar facing
forward.
6. Install the sprocket guard over
the guide bar studs. Ensure
chain tension adjuster pin (F) fits
into the guide bar adjuster hole
(D). Tighten sprocket guard nuts
finger tight.
7. Adjust saw chain tension, as
instructed in “Adjustment, Chain
Tension”.
Unlock chain brake
A
A
B
E
C
D
A
B
F

Echo CS-352 Specifications

General

Engine Displacement	34.0 cc
Engine Type	2-stroke
Chain Pitch	3/8 inch
Bar Length	16 inches
Weight	8.8 lbs
Power Output	1.3 kW
Chain Gauge	0.050 inch
