• Drive link serves to remove
sawdust from the groove of the
guide bar. Keep the lower edge of
the drive link sharp where
indicated.

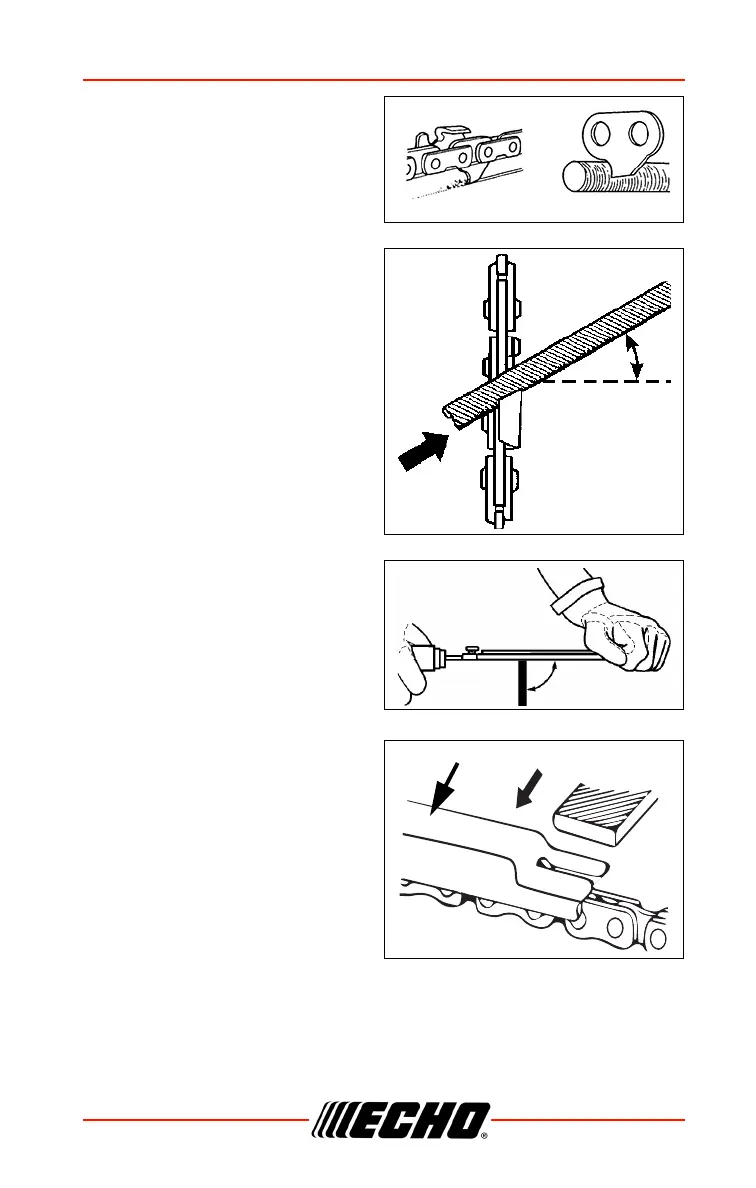

Setting the Saw Chain
• For setting saw chain, round file
(4.0 mm [5/32 in.] diam.) and flat
file are used.
• Push file as shown.
• To keep correct position and
correct angle, use a file holder.
• Hold the file horizontally.
• Place depth gauge tool firmly on
guide bar so that depth gauge
protrudes. Then file top of depth
gauge with the flat file until flat
with top of the depth gauge tool.
Sharpen lower edge
30°
Keep this angle
90°
Depth Gauge Tool

Echo CS-355T Specifications

General

Engine Displacement	35.8 cc
Engine Type	2-stroke
Bar Length	14 inches
Chain Pitch	3/8 inch
Chain Gauge	0.050 inches
