STARTER SYSTEM
CS-370ES
CS-420ES
8
4. Remove screw (C).
5. Remove pawl catcher (D) and power spring (E).
6. Remove rope reel (A) from starter case slowly to
prevent rewind spring (F) from unwinding.
7. Remove rewind spring case (G) from starter case.
WARNING DANGER
Wear eye protection and take care when re-
moving starter drum, because rewind spring
may unwind suddenly and cause injury to
eyes and body.
C
D
E
G
A

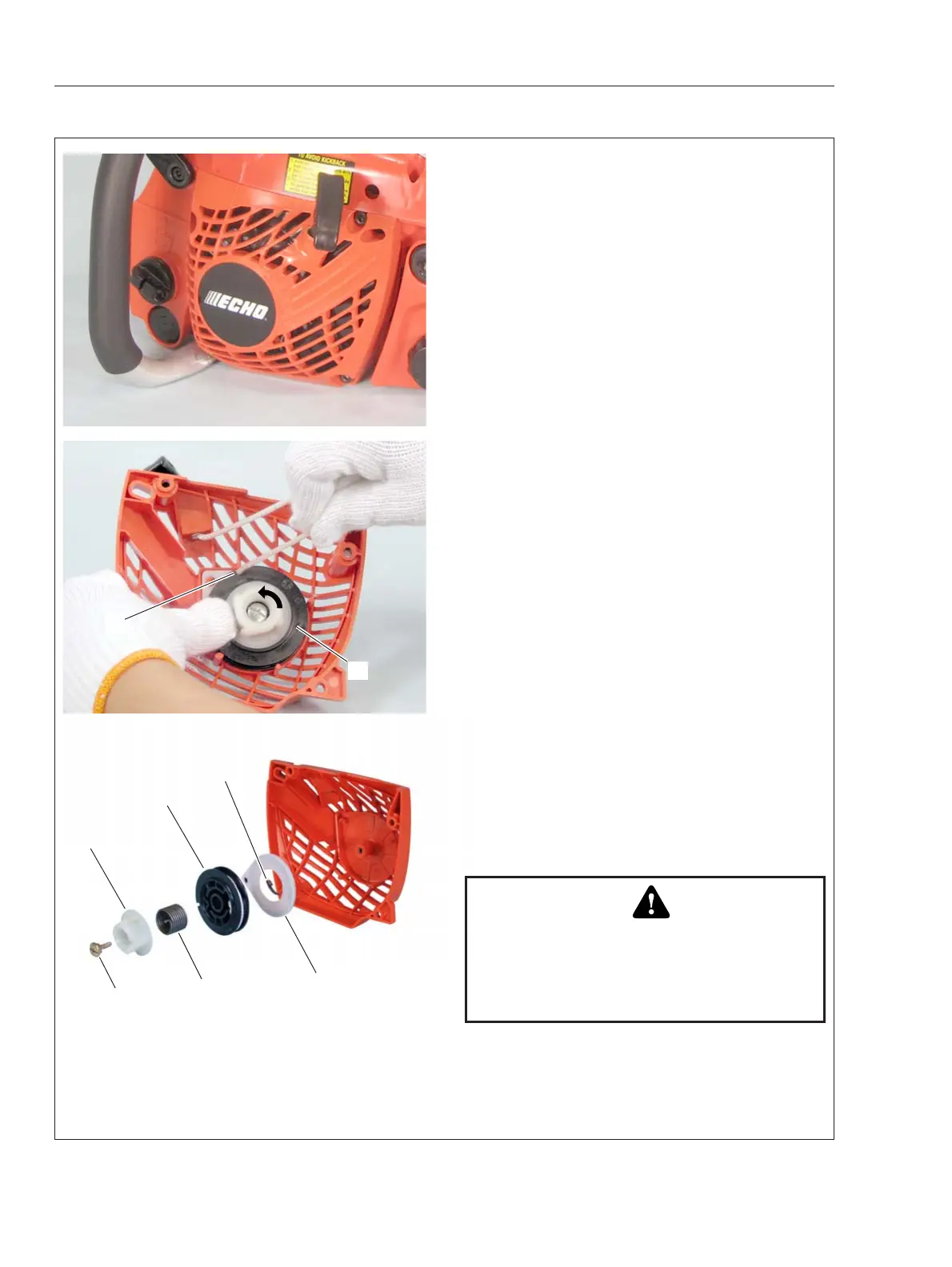

2-1 Disassembling starter assembly
1. Remove four bolts securing recoil starter
assembly. Remove recoil starter assembly from unit.
2. Pull out starter rope about 30 centimeters (12 in)
and hold rope reel (A). Loop excess rope in rope
reel notch (B) as shown.
3. Rotate rope reel (A) counterclockwise to release
tension of rewind spring.
A
B
F
