SAW CHAIN LUBRICATION SYSTEM
CS-370ES
CS-420ES
42

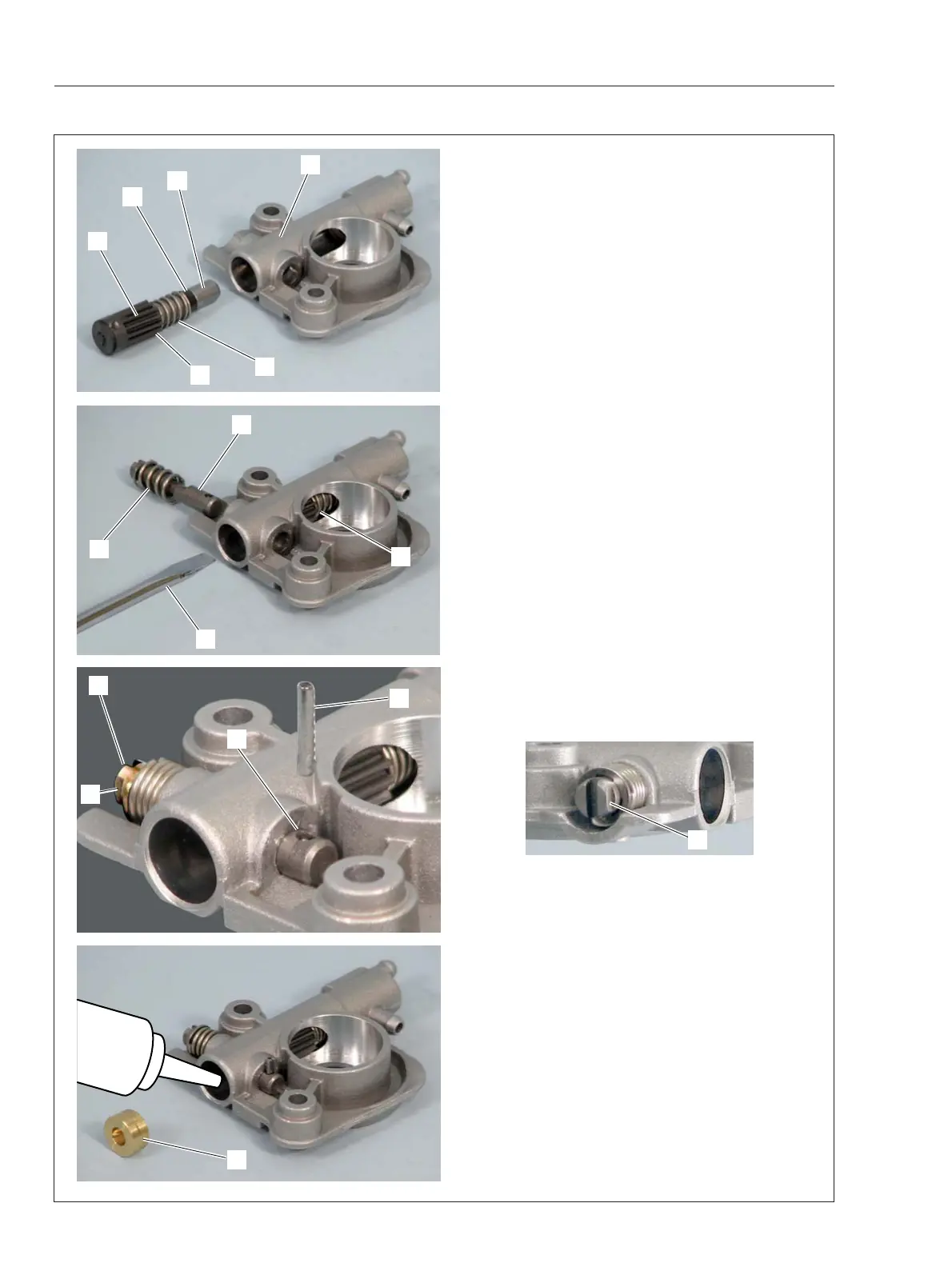

6-7 Assembling auto-oiler parts
1. Assemble spring (A) to plunger (B) as shown.
2. Coat plunger gear (b) and spring (A) with grease
and insert into cylinder (C) of auto-oiler body.
NOTE: Do not apply grease on V-ring (D) and
plunger shaft end (E), because these are a part of
chain oil passage.
3. Push in plunger with small screwdriver (F), and
hold plunger in place with finger through the center
hole (G) of auto-oiler body. Remove screwdriver (F).
4. Install adjuster needle (H) with spring (J) into oiler
body.
5. Press adjuster needle (H) to the bottom, orienting
the flat surface (h) as shown.
6. Tap in new spring pin (K) into hole (L) of adjuster
needle, until spring pin bottoms.
7. Apply grease in plunger hole. Tap plug (M) into
hole with plastic mallet until plug is flush with the
outer hole wall circumference.
A
B
C
b
D
E
G
H
J
M
H
K
L
F
h
h
