Echo CS-420ES Service Manual

9
STARTER SYSTEM
CS-370ES
CS-420ES
4K287
C
C
C

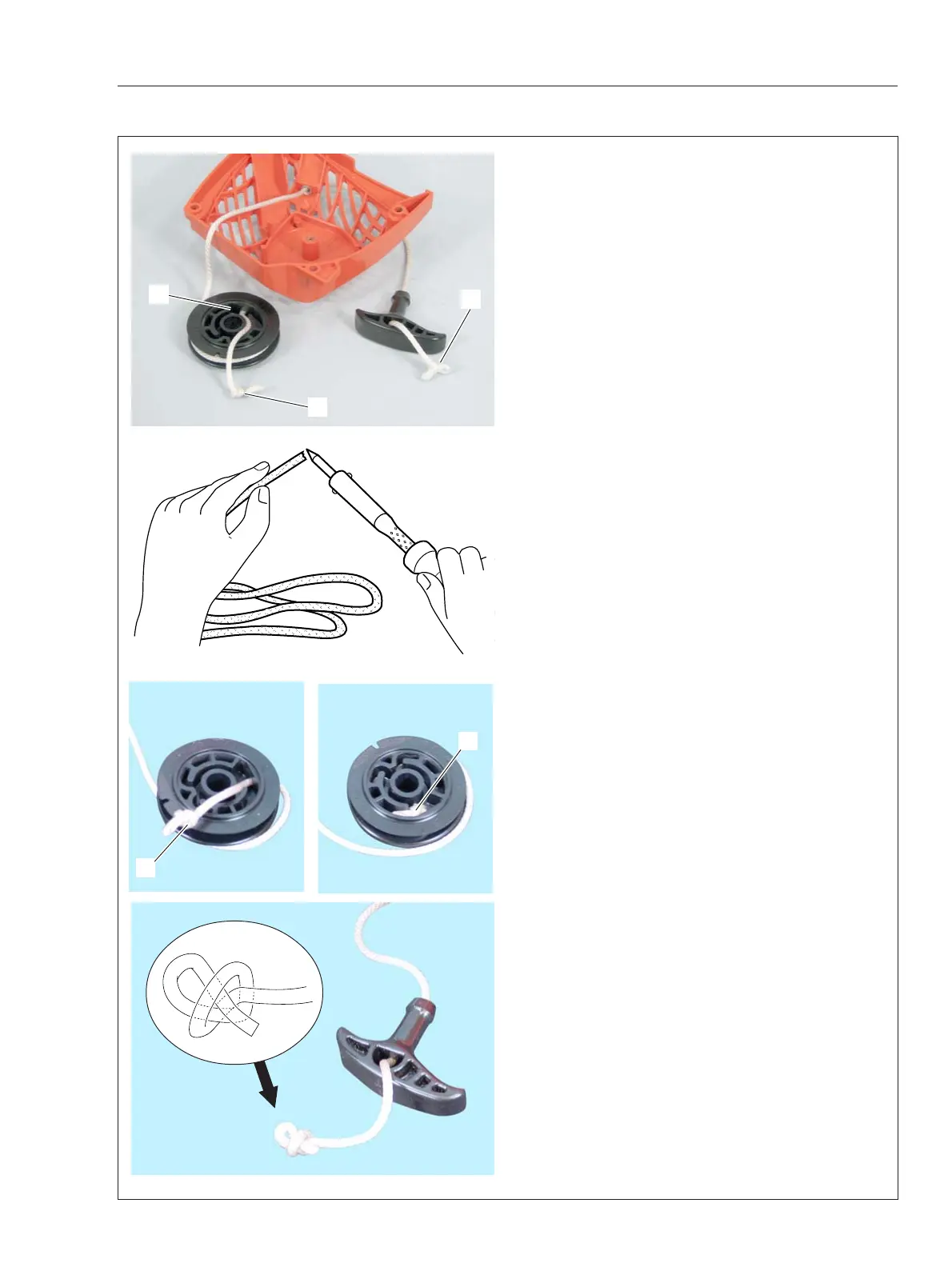

2-2 Replacing starter rope
1. Pull out and untie knot (A).
2. Pull out knot (C) from rope reel (B).
3. When installing a new starter rope, singe both
ends of the rope to prevent fraying.
4. Make a knot (C) at end of starter rope and pass
the rope through hole of rope reel, then press the
knot (C) into reel well as shown.
5. Pass the other end of starter rope through rope
guide on starter case, then pass starter rope through
starter grip and make a knot as shown.
B
A

Echo CS-420ES Specifications

General

Saw Chain Gauge	0.050 inches
Fuel Capacity	0.41 liters
Weight	4.6 kg
Saw Chain Pitch	3/8 inches
Bar Length	16 inches
