Echo CS-420ES Service Manual

STARTER SYSTEM
CS-370ES
CS-420ES
10

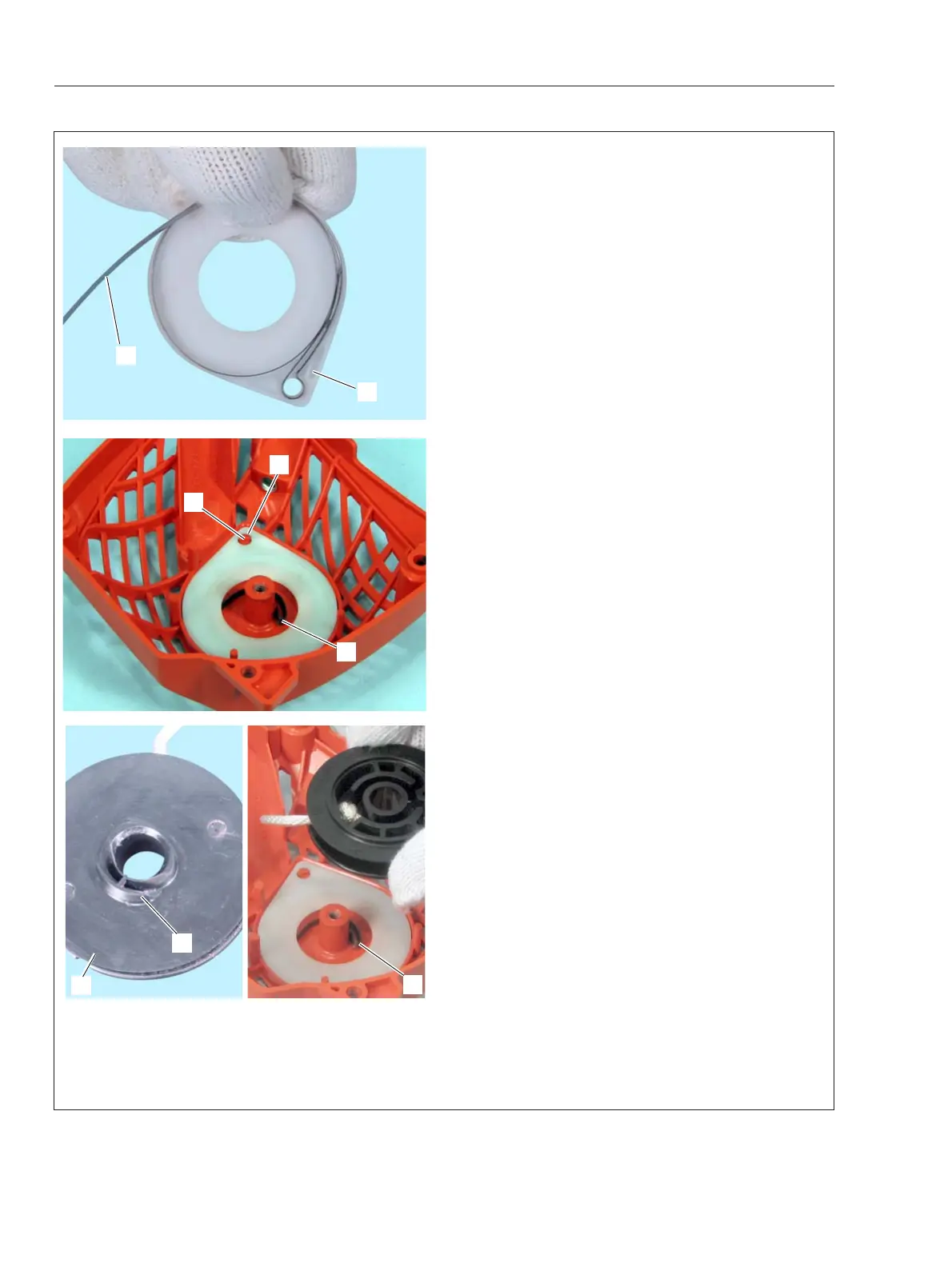

2. Install rewind spring case assembly on starter
case matching hole (C) with post (D). Hook (E) of
rewind spring should contact with post of starter
case.
3. Assemble rope reel (F) engaging hook (f) of rope
reel with hook (E) of rewind spring.
2-3 Assembling starter
1. If rewind spring (B) is unwound from rewind spring
case (A), wind the spring inside case as shown.
A
B
E
D
C
f
F
E
