Echo CS-420ES Service Manual

11
STARTER SYSTEM
CS-370ES
CS-420ES
6. Install pawl catcher, assembling power spring
hook (J) into pawl catcher hole (I).
F

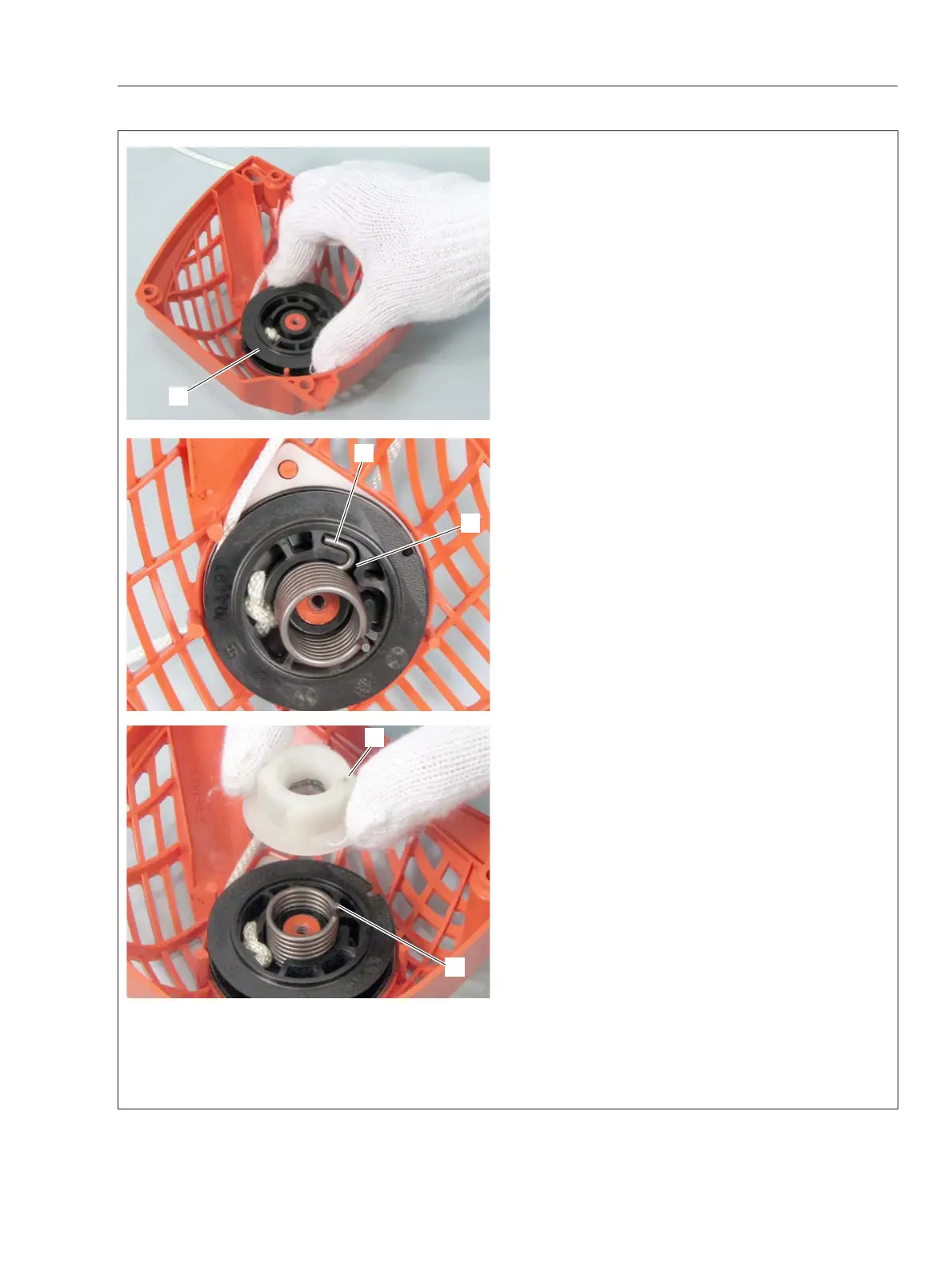

2-3 Assembling starter (continued)
4. Check for proper engagement of rewind spring
and rope reel by turning rope reel (F) clockwise and
counterclockwise.
5. Install power spring assembling hook (G) of power
spring into rope reel cutout (H).
G
H
J
I

Echo CS-420ES Specifications

General

Saw Chain Gauge	0.050 inches
Fuel Capacity	0.41 liters
Weight	4.6 kg
Saw Chain Pitch	3/8 inches
Bar Length	16 inches
