Echo CS-420ES Service Manual

CS-370ES
CS-420ES
54

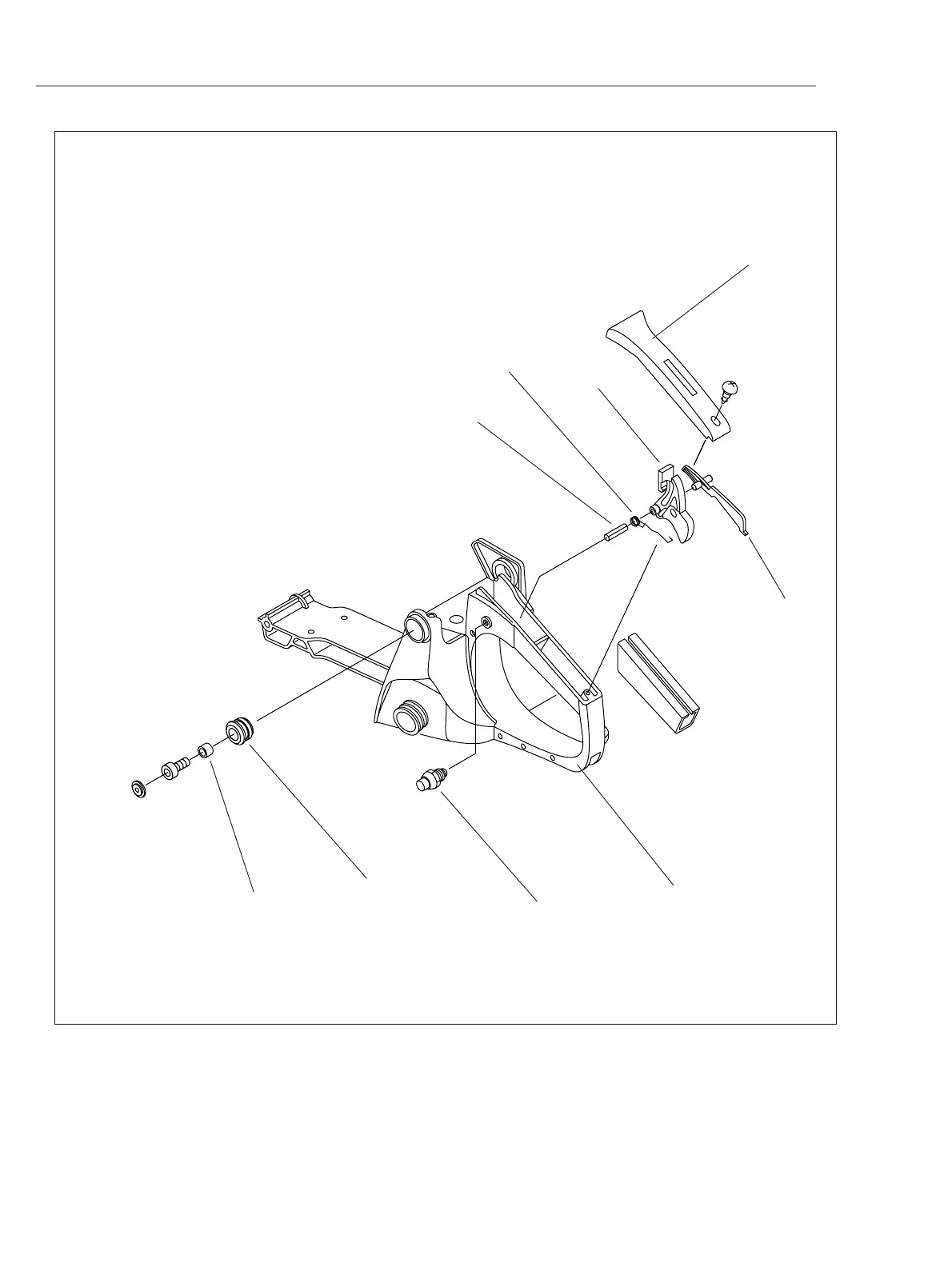

REAR HANDLE AND CONTROL SYSTEM
9 REAR HANDLE AND CONTROL SYSTEM
(A) Rear handle
(B) Torsion spring
(C) Spring pin
(D) Throttle trigger
(E) Throttle lockout
(F) Rear handle cover
(G) Throttle latch (CS-370)
(H) Cushion
(I) Collar
(H)
(A)
(F)
(D)
(C)
(I)
(E)
(B)
(G)

Echo CS-420ES Specifications

General

Saw Chain Gauge	0.050 inches
Fuel Capacity	0.41 liters
Weight	4.6 kg
Saw Chain Pitch	3/8 inches
Bar Length	16 inches
