13
STARTER SYSTEM
CS-370ES
CS-420ES

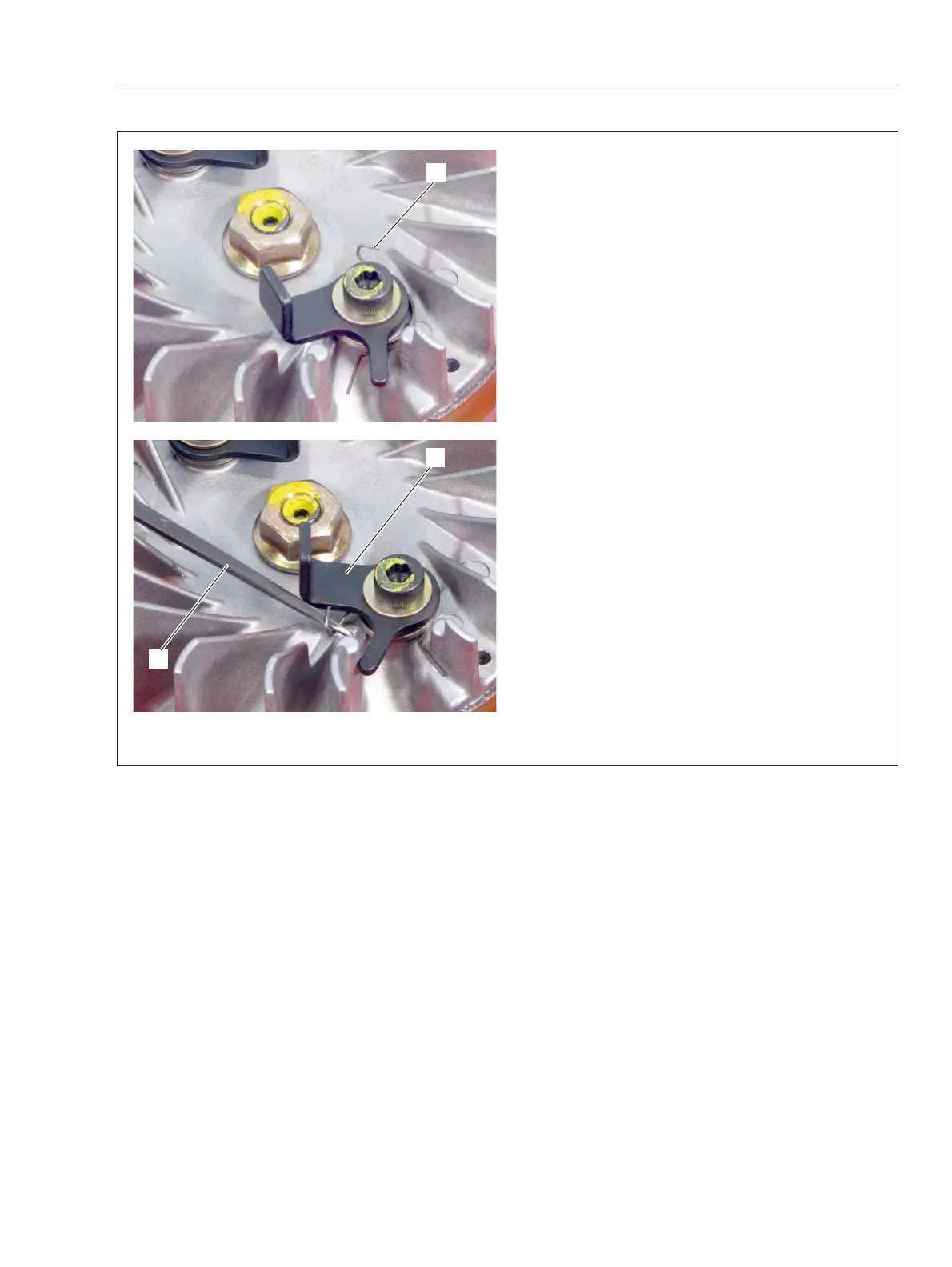

3. Install torsion spring, spacer, pawl, washer and
bolt. To avoid pinching of torsion spring, install these
parts without setting the hook (E) of torsion spring
on starter pawl. The bolt is pre-coated with sealant
on the thread. If the coat is peeled off, apply thread
locating sealant (Loctite #242, ThreeBond #1324 or
equivalent).
4. Using fine wire or hook tool (F), place hook of
torsion spring on pawl (G) as shown.
5. Make sure pawl can move smoothly. If it does not
move smoothly, check parts for correct installation.
E
G
F
2-4 Replacing starter pawl (continued)
