Echo CS-420ES Service Manual

CS-370ES
CS-420ES
56
REAR HANDLE AND CONTROL SYSTEM

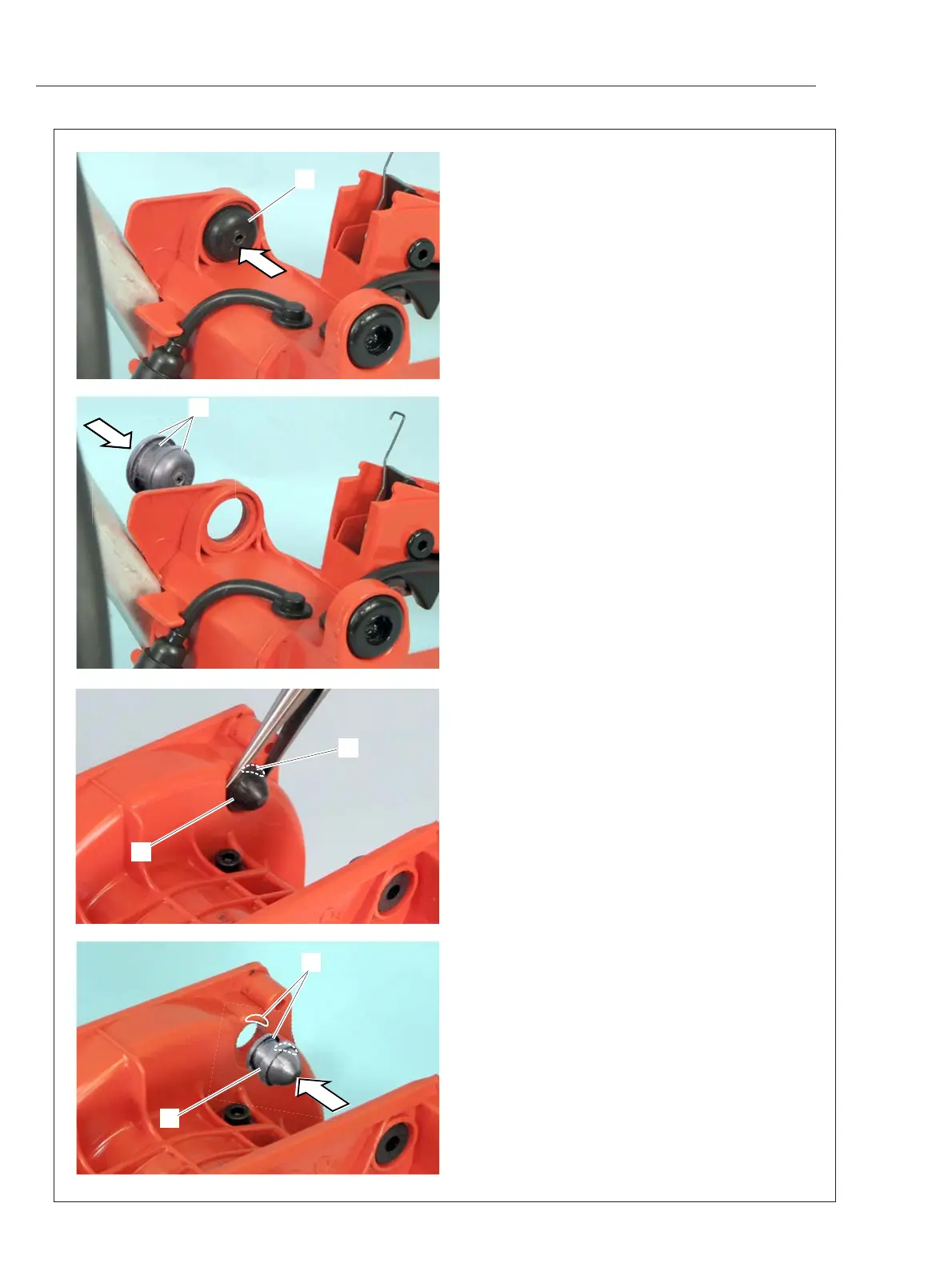

9-2 Replacing cushions (continued)
7. To remove cushion (B) and (C), push out cushion
as shown.
8. Apply lithium-based grease on outer surfaces (b),
then push in cushion as shown.
9. Remove cushion (D) with needlenose pliers,
cutting off glued part (d) with cutter.
10. Push in cushion (D) without applying grease/oil.
11. Apply adhesive (Loctite #424, ThreeBond #1741
or equivalent) on the part (d) between cushion and
engine cover.
NOTE: If grease/oil is applied on cushion, adhesive
force may be weak.
B
d
D
b
D
d

Echo CS-420ES Specifications

General

Saw Chain Gauge	0.050 inches
Fuel Capacity	0.41 liters
Weight	4.6 kg
Saw Chain Pitch	3/8 inches
Bar Length	16 inches
