DSRM-200 ASSEMBLY
X7508161200 15
© 3/2014 ECHO Inc.
ASSEMBLY

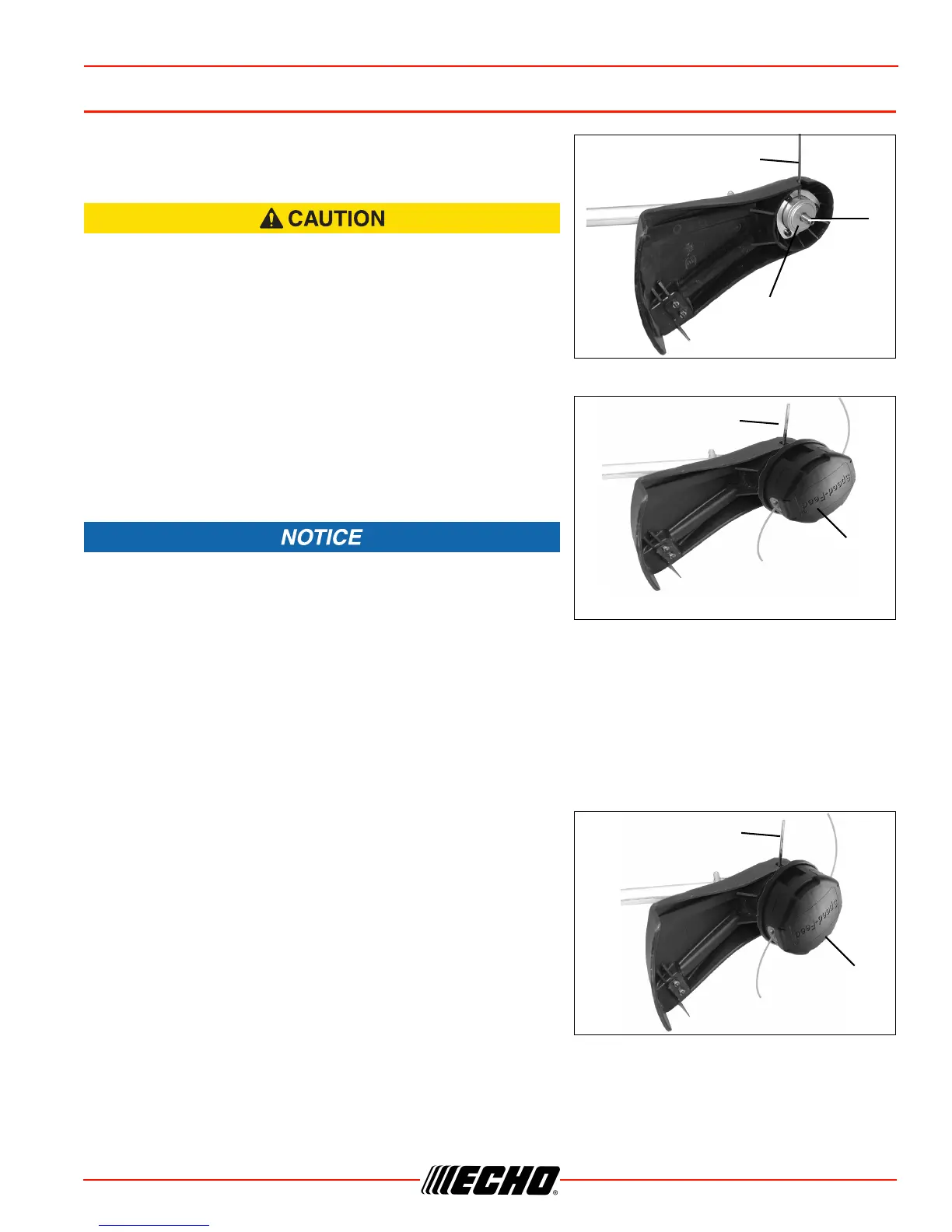

Nylon Line Head Installation
Wear Gloves or personal injury may result:
• Cutoff knife is sharp.
• Gearcase and surrounding area may be hot.
1. Be sure adapter plate (C) remains on PTO shaft (A).
2. Align locking hole in upper plate with notch in edge of gear housing and insert head locking tool (D).
3. Thread line head (E) onto shaft by turning it
counter-clockwise until head is tight against adapter plate
(C).
4. Remove locking tool (D).
Semi-automatic nylon line heads must be used only with plastic
debris shield with cut-off knife. Using nylon line heads with
metal debris shield can result in trimmer damage, caused by
operation with excessive line length.
Note: Your nylon line head may appear different than nylon line head shown.
To Advance Trimmer Line
See Maintenance Section for nylon line replacement.
Note: To advance trimmer line, tap trimmer head against the ground while the head is turning at normal
operating speed.
Remove Nylon Line Head
Note: Do not disassemble nylon line head.
1. Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (D).
2. Remove line head (E) by turning it clockwise until head is
completely off of shaft.
3. Remove locking tool (D).
Parts Required: Nylon Line Head.
