ASSEMBLY DSRM-200

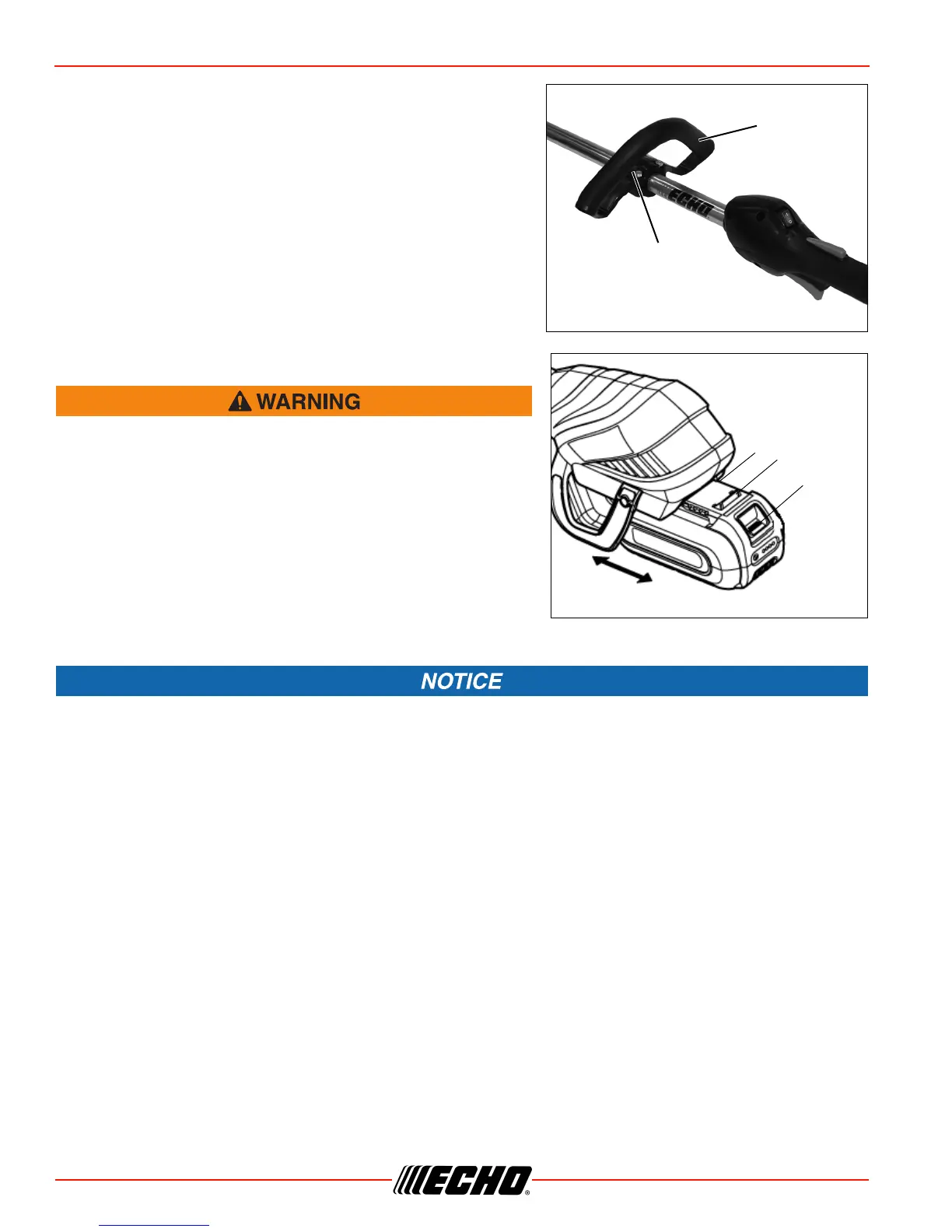

Support Handle Adjustment
Note: The ECHO label shows minimum spacing for support
handle location.
1. Position support handle (A) for comfortable operation.
2. Secure screws (B).
Battery Installation
The attachment will operate when the battery is installed,
the stop switch is in the “I” position, and the triggers are
engaged. Make sure the trimmer is properly positioned to
prevent loss of control and possible serious injury. Keep
movable parts of the attachment off the ground and away
from objects that could become entangled or thrown.
Note: The battery comes partially charged from the factory and
needs to be fully charged before first use.
1. Make sure the stop switch is in the "O" position.
2. Align ridges (A) on battery pack with grooves in power head. Slide battery pack into power head.
Assure the battery pack latch (B) snaps into place and battery pack is secure before beginning operation.
3. Depress battery pack latch release (C) to remove battery pack.
