Description
Description

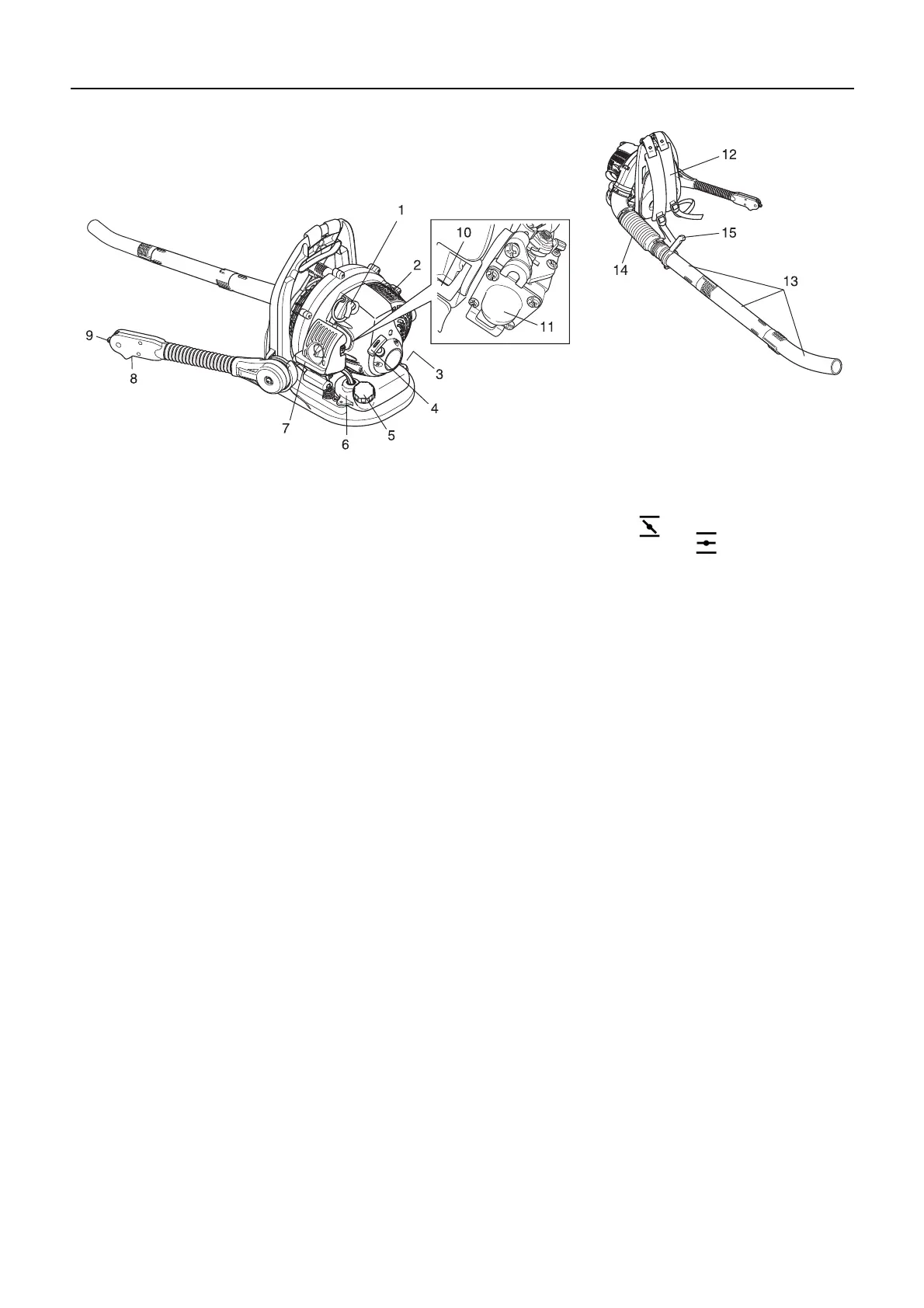

1. Spark plug Provides spark to ignite fuel mixture.
2. Spark arrestor - Catalytic silencer / Silencer The si-
lencer or catalytic silencer controls exhaust noise and
emission. The spark arrestor screen prevents hot, glow-
ing particles of carbon from leaving the silencer. Keep
exhaust area clear of flammable debris.
3. Serial number label Lists model number and serial
number of unit.
4. Starter handle The grip of the starter, for starting the en-
gine. ("ES" START)
5. Fuel tank cap Covers and seals fuel tank.
6. Fuel tank Contains fuel and fuel filter.
7. Air cleaner Contains replaceable air filter element.
8. Handle Rotates downward for throttle control access.
Spring loaded for flexible operation.
9. Throttle position lever/Stop switch Combination stop
switch and variable speed throttle lever. When the lever
is moved all the way forward the blower is at Wide Open
Throttle (W.O.T.). When the lever is moved rearward to
detent, the blower is at idle. When the lever is moved
rearward past the idle detent the blower will stop.
10. Choke Choke is located on the side of the air cleaner.
Move choke lever to position to close choke for cold
starting. Move choke lever to position to open
choke.
11. Purge bulb Pumping purge bulb before starting engine
draws fresh fuel from the fuel tank, purging air from the
carburettor. Pump purge bulb until fuel is visible and
flows freely in the clear fuel tank return line. Pump
purge bulb an additional 4 or 5 times.
12. Shoulder harness Used to support unit on operator's
back. The straps are adjustable.
13. Blower pipes Exclusive positive locking system.
14. Flexible pipe Allows for full range of movement.
15. Stick handle Used by operator to direct air flow.
