Echo PB-9010 T User Manual

ASSEMBLY PB-9010 H/T
22 X7501200700
© 08/20 ECHO Incorporated

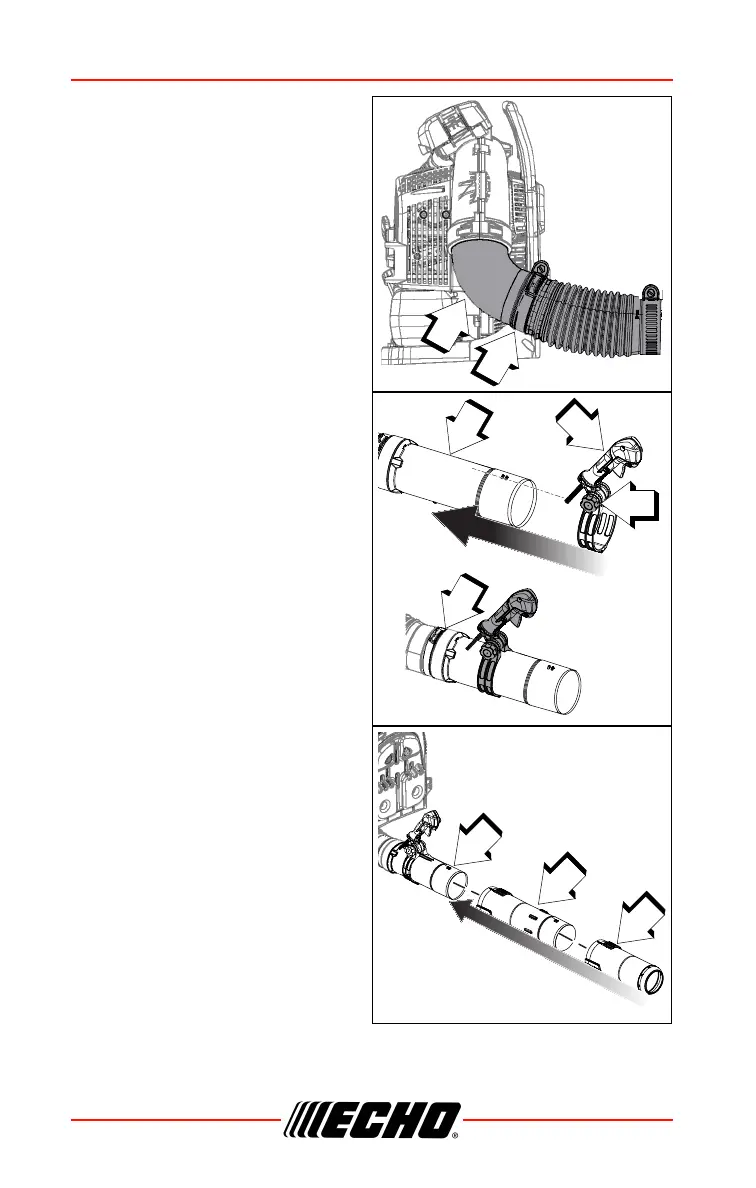

3. Assemble flexible pipe to elbow
(D) on blower. Position clamp
with cable guide loop (G) on
outside of flexible pipe and
tighten clamp.
Note: Hang handle freely from
blower to assure throttle
cable is not twisted
before installing handle
(E).
4. Position throttle cable along the
outside of elbow. Loosen knob
(H) on handle (E). Install onto
swivel pipe (C).
5. Insert anti-static wire into swivel
pipe.
6. Assemble swivel pipe into
flexible pipe and tighten clamp
(A).
7. Clip throttle cable into throttle
cable guide loop.
8. Move handle (E) to desired
position. Tighten knob (H).
9. Assemble straight pipe (J) onto
swivel pipe, until you feel light
resistance. Hold swivel pipe
and turn straight pipe
clockwise, engaging positive
locking channels, until
connection is firm. Do not force
connection.
10. Assemble end pipe (K) to
straight pipe as in step 9.
Note: Blower use will eventually
loosen pipe connections.
Exclusive positive locking
system allows pipes to be
tightened. If loosening
occurs, remove two straight pipes and install according to
steps 9 and 10.
C
G
D
H
C
E
A
J
C
K

Echo PB-9010 T Specifications

General

Engine Displacement	79.9 cc
Air Volume	1110 CFM
Air Speed	220 MPH
Type	Backpack Blower
Starting System	Standard
Fuel Capacity	83.8 fl. oz.
Fuel Tank Capacity	83.8 fl. oz.
