POWER PRUNER
TM
OPERATOR'S MANUAL
11
WARNING DANGER
Saw chain is sharp! Always wear gloves when handling cutting
attachment, otherwise serious personal injury may result.

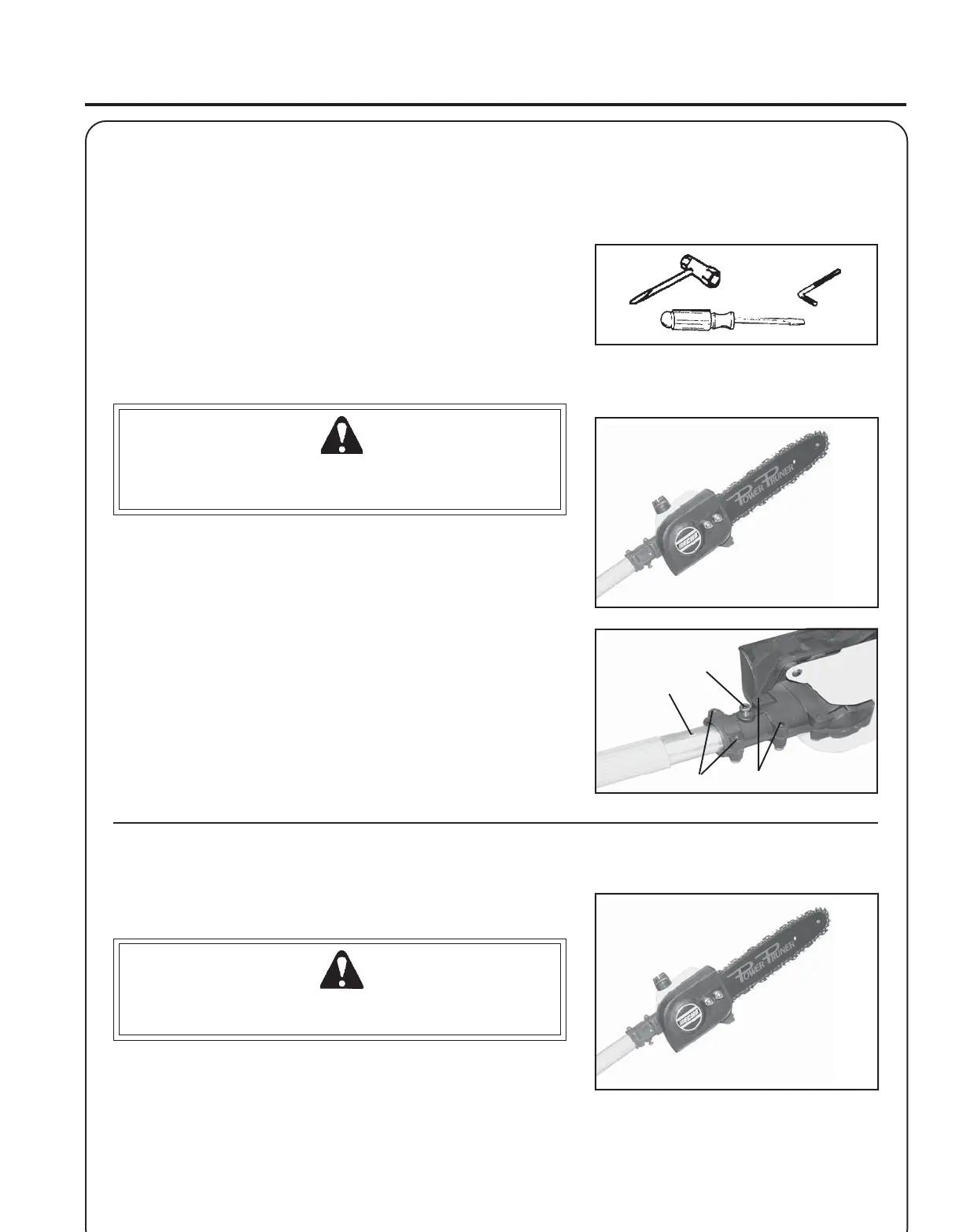

1. Loosen the (4) four lower bolts (A) on the cutting attachment, and
remove location bolt (B).
2. Slide the cutting attachment onto the shaft housing until the hole
in the neck of the cutting attachment is aligned with the hole (C) in
the housing. (It may be necessary to rotate the saw chain slightly
to align the internal pinion and
drive shaft.)
3. Insert location bolt (B) into hole (C) and tighten to snug.
4. Tighten bolts (A), clamping the cutting attachment onto the
housing.
3-FOOT EXTENSION INSTALLATION
(Optional)
WARNING DANGER
Saw Chain is sharp! Always wear gloves when handling cutting
attachment, otherwise serious personal injury may result.
B
A
A
C
ASSEMBLY
For your convenience the Power Pruner
TM
has been shipped with the
power head attached and throttle linkage assembled. We recommend
the power head remain attached to the drive shaft and housing at all
times.
Tools Required: 3 mm Hex Wrench, Screwdriver, T-wrench
Parts Required: Power Head/Drive Shaft, Cutting Attachment, 3-foot
Extension (Optional) P/N 99946400010
CUTTING ATTACHMENT TO DRIVE SHAFT INSTALLATION
