Symbol
description/application
Symbol form/shape
Symbol
description/application
Symbol form/shape
Hot
Surface
Carburetor adjustment
- Idle speed
Carburetor adjustment
- High speed mixture
Symbol
description/application
Symbol form/shape
Symbol
description/application
Symbol form/shape
Read and understand
Operator's Manual.
Wear eyes, ears and
head protection
Emergency stop
Fuel and oil mixture
Finger Severing
Carburetor adjustment
- Low speed mixture
Safety/Alert
Avoid all power
lines. This unit is not
insulated against
electrical current.
Do not operate clos-
er than 15 M (50 ft.)
from electrical
hazards.
Keep bystanders at
least 15 meters
(50 feet) away.
Plan retreat path
from falling
objects.
Wear hand
protection. Use
two handed.
DO NOT smoke
near fuel.
DO NOT allow
flames or sparks
near fuel.
Wear slip resistant
foot wear.
Engine choke
control.
Ignition
ON/OFF
Chain lubrication
Primer bulb

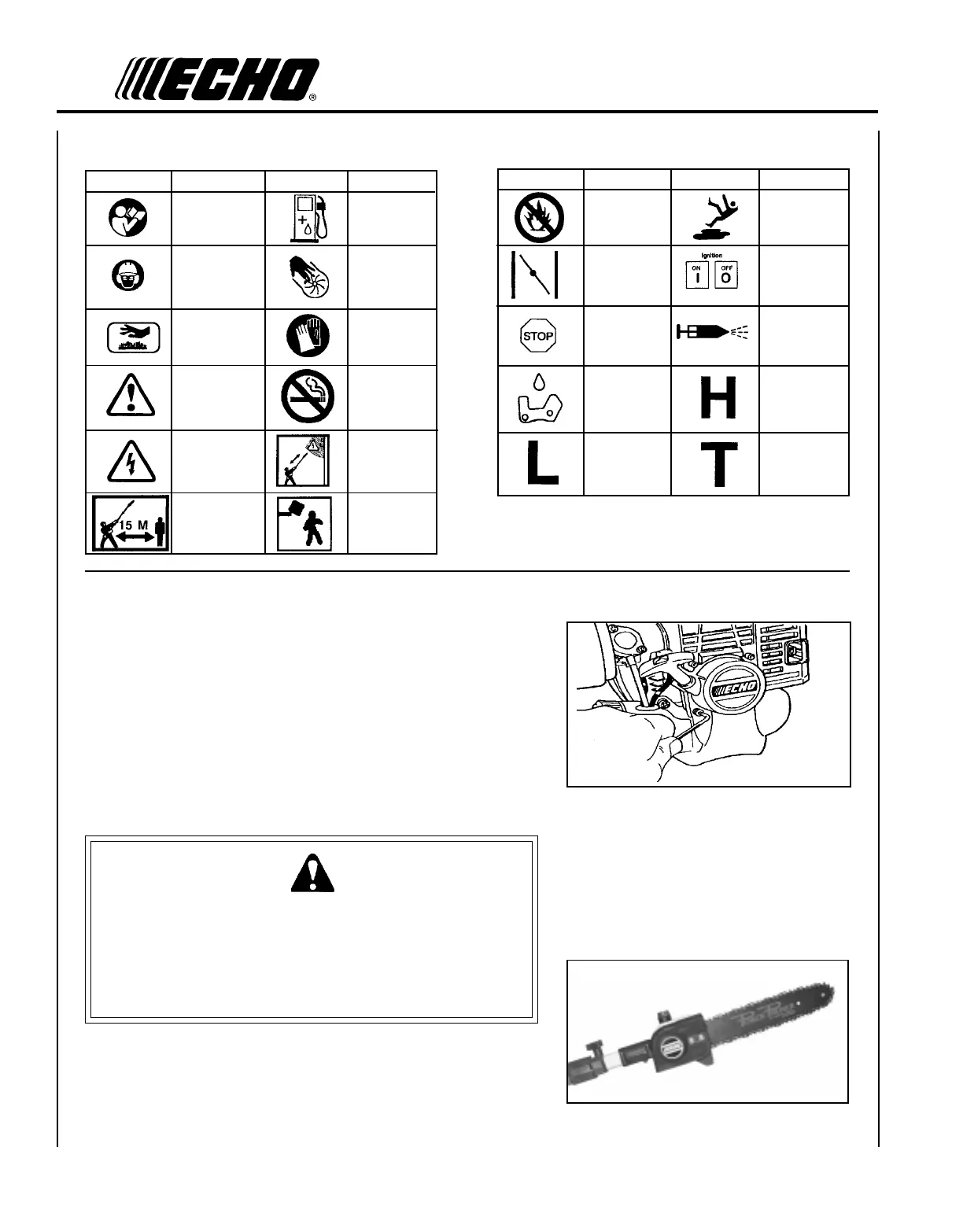

INTERNATIONAL SYMBOLS
EQUIPMENT
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten
and/or replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks.
DO NOT operate unit if leaks are found.
• Never adjust the guide bar or saw chain when the engine is operat-
ing.
Guide Bar and Saw Chain
WARNING DANGER
• Serious injury may result from the use of non approved guide bar
and saw chain combinations. Read and comply with all safety
instructions listed in this manual.
• ECHO, INC. will not be responsible for the failure of cutting
devices or accessories which have not been tested and ap-
proved by ECHO for use with this unit.
• Check that the cutting attachment, guide bar and saw chain is firmly
attached and in safe operating condition.
• Only use ECHO approved guide bar and saw chain.
• Only use one ECHO approved extension on the pruner.
• Do not hit rocks, stones, tree stumps and other foreign objects with
the saw chain.
