PPT-2620 ASSEMBLY
X7507820600 21
© 2/2017 ECHO Inc.
ENGLISH

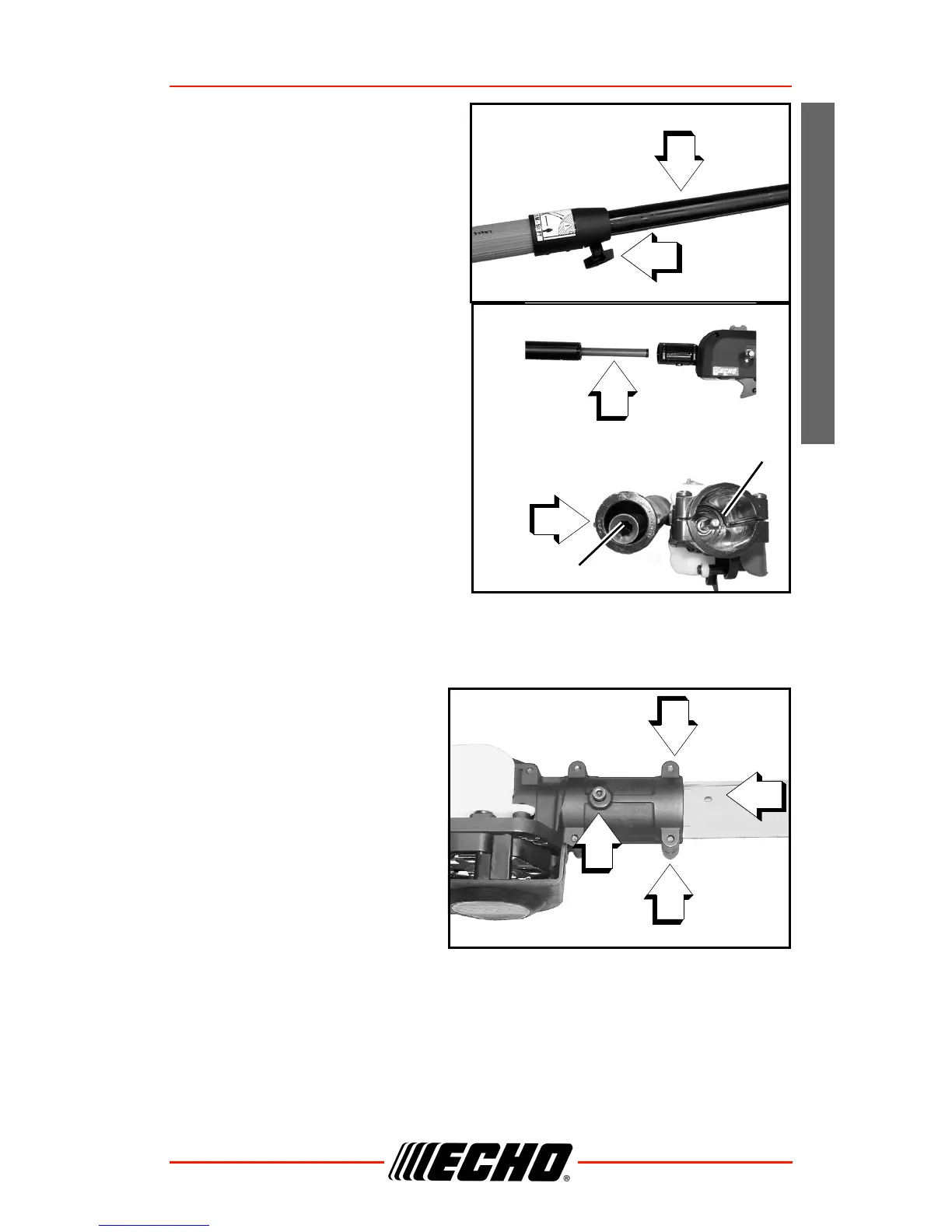

2. Loosen clamp knob (E)
turning counterclockwise.
3. Pull upper tube (F) out of
fiberglass lower tube 127-152
mm (5-6 in.), then slide (F)
back into fiberglass lower tube
exposing inner drive shaft (G).
Align and join star shaped
drive end of inner drive shaft
(G) with cutting attachment
shaft (H).
4. Align ridges (J) on upper tube
with seams in cutting
attachment.
5. Slide together, aligning locator
hole (D) in cutting attachment
with locating hole (I) in upper tube.
6. Install and tighten locator screw (B). Tighten two (2) cutting attachment
screws (A).
7. Extend upper tube to
desired length. Tighten
clamp knob (E) turning
clockwise.
