MAINTENANCE PPT-2620
44 X7507820600
© 2/2017 ECHO Inc.

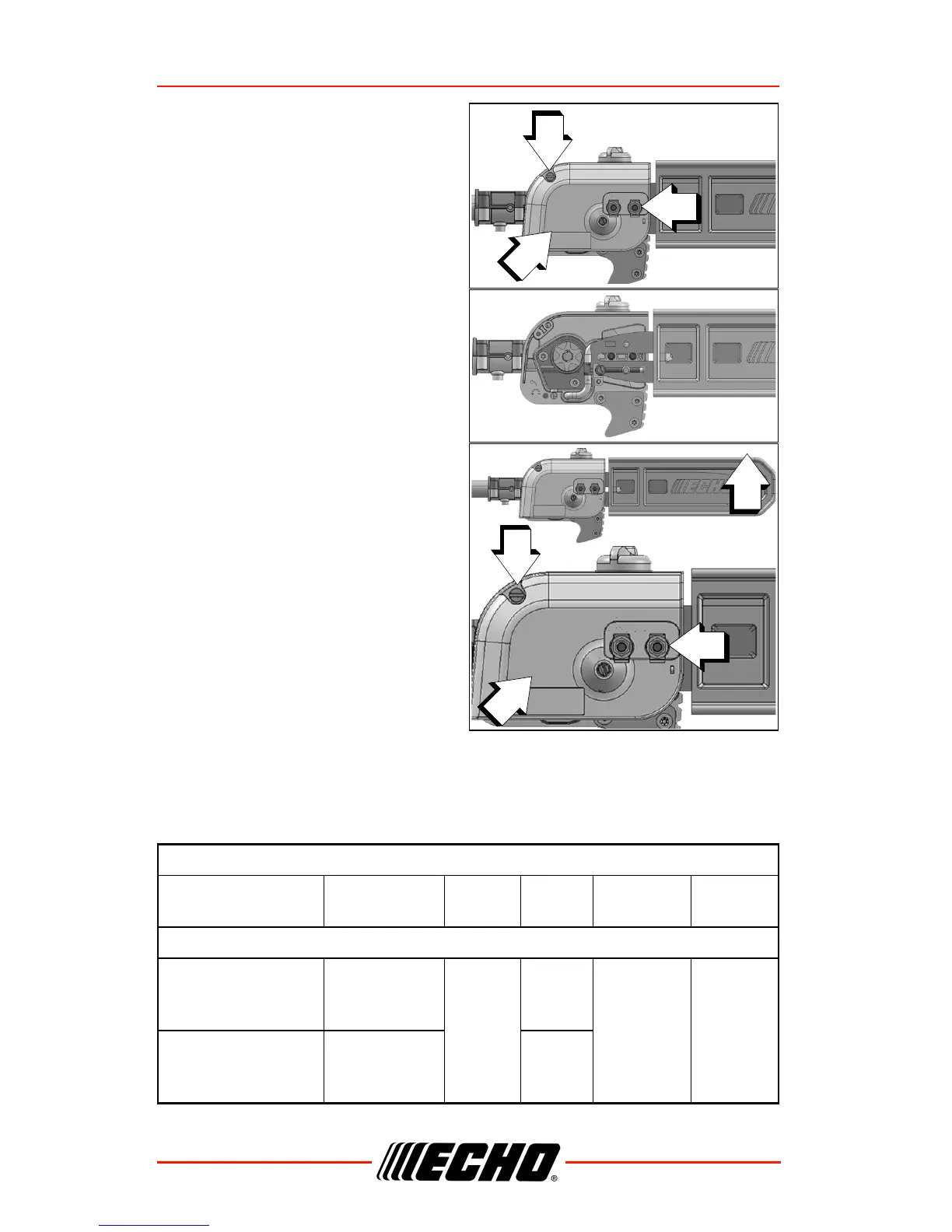

2. Remove guide bar cover (C).
3. Gently brush debris from inside
guide bar cover and from
around sprocket.
4. Hold the bar nose up. Install
guide bar cover (C). Install the
guide bar nuts (A). Tighten the
rear nut first, then tighten the
front nut. Install and tighten the
guide bar cover screw (B).
Filing Standard Saw
Chain
Level 2
Power Pruner Bar and Chain Combinations
BAR P/N CHAIN P/N
CHAIN
TYPE
LINK
S
PITCH GUAGE
Narrow Kerf
254 mm (10 in.)
narrow bar
P/N 10A4CD3739
90PX39CQ
90
39
9.5 mm
(0.375
in.)
0.043
305 mm (12 in.)
narrow bar
P/N 12A4CD3744
90PX44CQ 44
C
A
B
C
C
C
A
B

Echo PPT-2620 Specifications

General

Engine Displacement	25.4 cc
Engine Type	2-Stroke
Power Source	Gasoline
Bar Length	12 inches
Chain Gauge	0.05 inches
