OPERATION PPT-2620
26 X7507820600
© 2/2017 ECHO Inc.
Lubricating the Guide Bar and Saw Chain
Automatic Oiling System

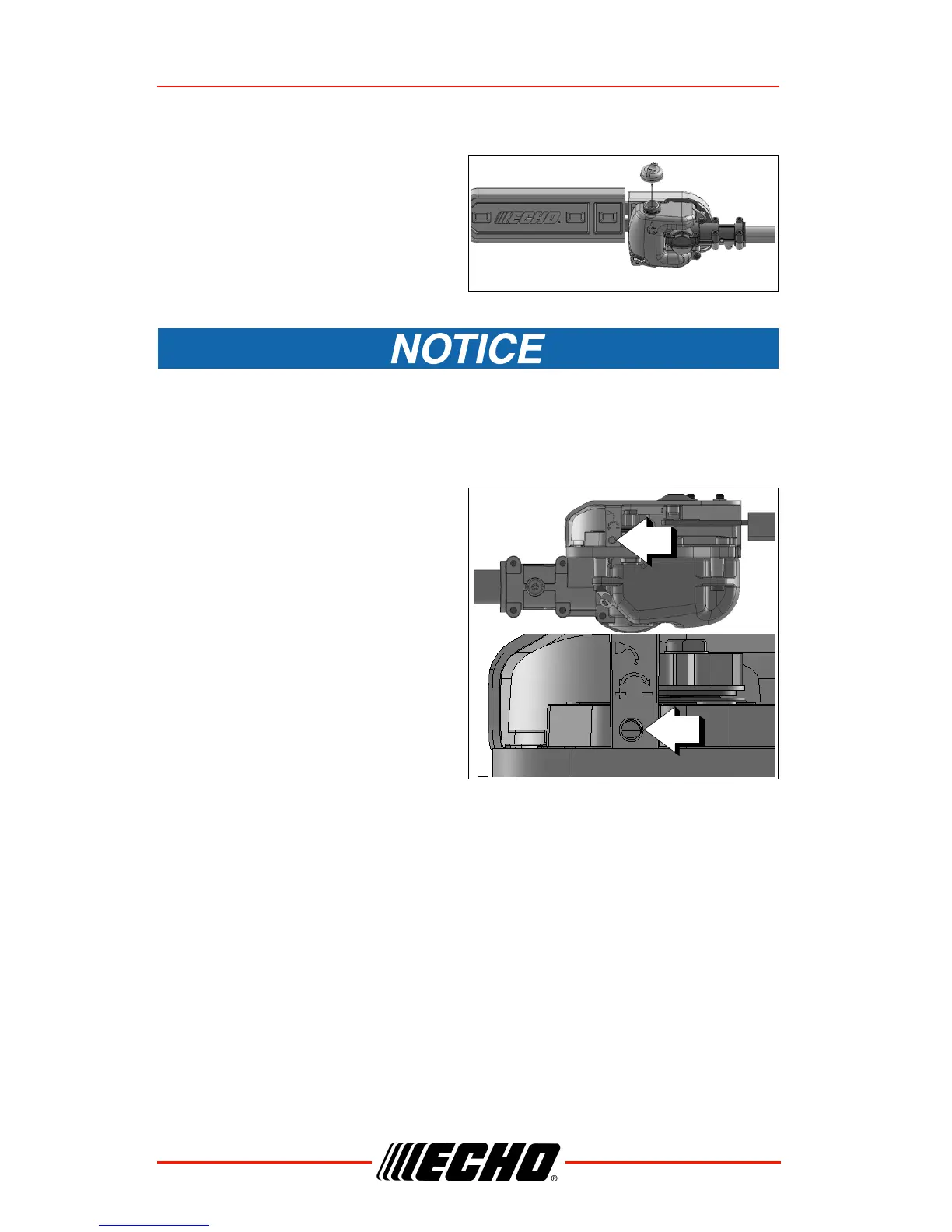

1. Wipe debris from around oil fill
cap.
2. Remove oil fill cap and fill
reservoir with a quality, low
viscosity guide bar and saw
chain oil.
To prevent plastic deterioration, do not use synthetic or silicone
based oil.
Adjusting Automatic Oiler
1. From bottom of gear case, turn
adjustment screw (A) clockwise
to decrease oil volume, or
counterclockwise to increase oil
volume.
Note: The automatic oiler is preset
to deliver a sufficient oil discharge
volume during normal operating
conditions. During heavy or dry
cutting conditions, the oil discharge
volume may be increased to assure
adequate lubrication. If oil is leaking
from the bar cover area, reduce the
oil discharge volume. Refill the oil
reservoir with each tank of fuel.
