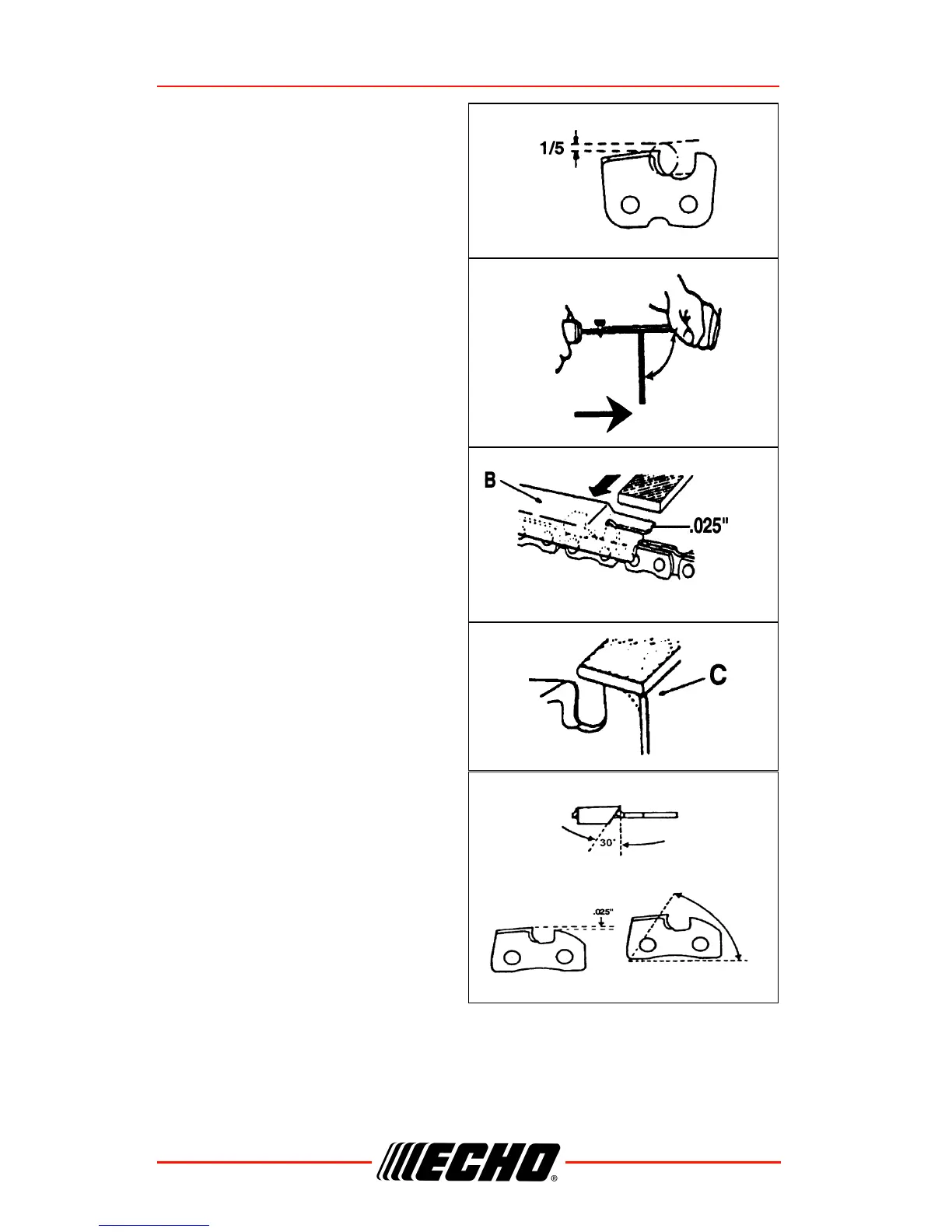

2. Keep file horizontal in cutter
and file in one direction.
3. File until cutter top and side
bevel edges are sharp without
nicks.
4. Place depth gauge tool (B)
firmly on top of cutter with
0.635 mm (0.025 in.) slot and
end against front cutter raker.
File cutter raker with flat file
until flush with top of depth
gauge.
Finish cutter sharpening by
rounding front raker edge (C)
with flat file.
5. Properly filed cutter is as
shown.
6. Apply clean oil and rotate saw
chain slowly to wash away
filings.
7. If saw chain is coated or
clogged with resin, clean in
kerosene, then soak in oil.
