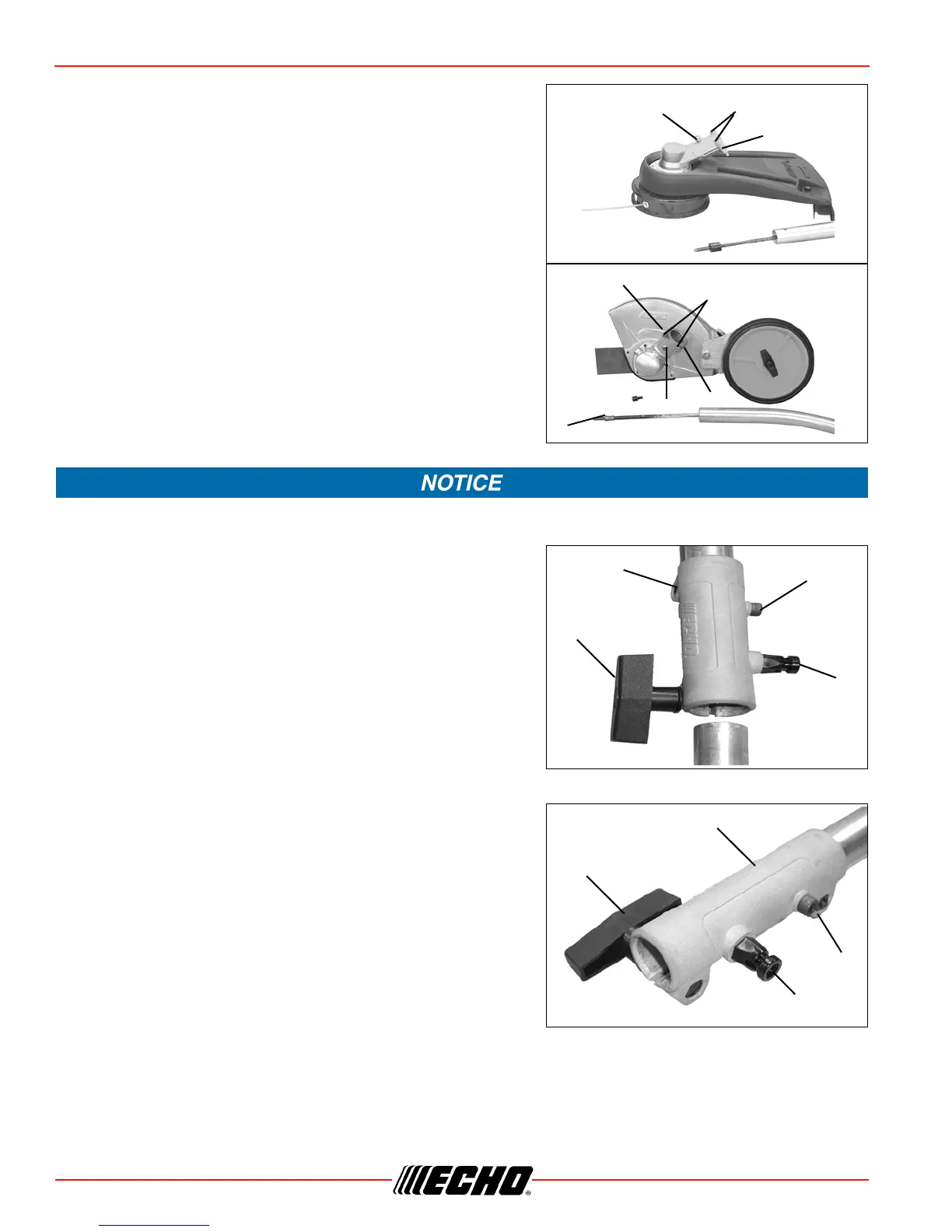

MAINTENANCE PAS-225VP
Drive Shaft (lower)
1. Loosen two (2) screws (B) and remove center locating
screw (C). Pull gear box and shield from drive shaft housing.
2. Pull flexible cable from the drive shaft housing, wipe clean
and re-coat with a thin coating [15 ml (1/2 oz.)] of grease.
3. Slide the flexible cable back in the drive housing. DO NOT
get dirt on the flex cable.
4. Install the gear housing and shield assembly.
Flat edge of washers (D) must be against drive shaft.
Drive Shaft Upper
1. Loosen clamping knob (A).
2. Pull locator pin (B) and rotate 1/4 turn counter clockwise to
lockout position.
3. Remove attachment.
4. Remove coupler (E) from upper drive shaft assembly by
loosening clamping screw (C) and removing set screw (D).
C
B
D
C
D
B
D
C
A
C
D
B
A
E
D
B

Echo Pro Attachment PAS-225 Specifications

General

Engine Displacement	21.2 cc
Weight	2.7 lbs
Shaft Length	1.8 m
Category	Trimmer
Fuel Capacity	14.9 fl. oz.
Cutting Swath	17 in
Fuel Tank Capacity	14.9 fl. oz.
Cutting Width	17 in
