PAS-225VP MAINTENANCE
© 12/2013 ECHO Inc.
X7722273906 29

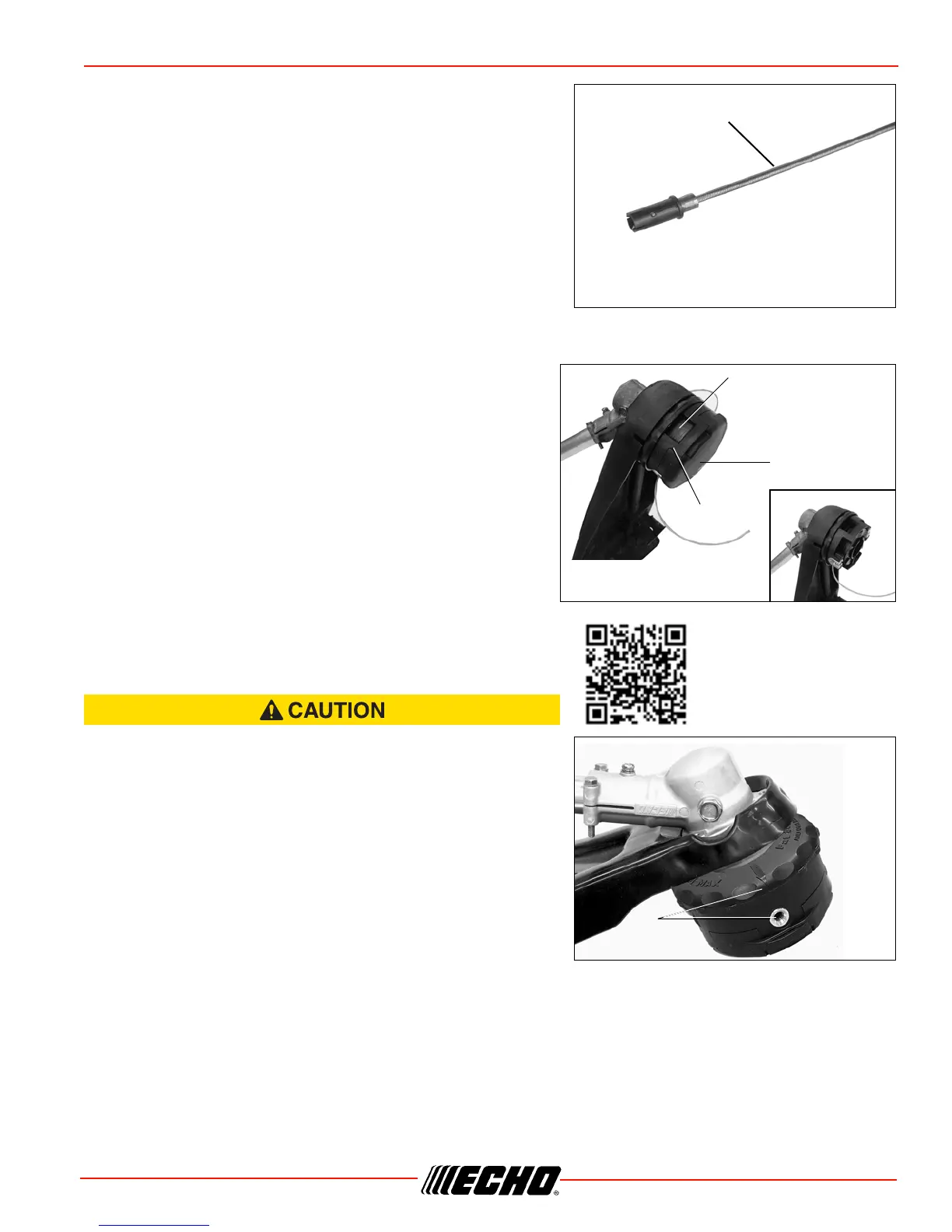

5. Remove upper flex cable (F), wipe clean, and apply a thin
coating of 1/2 oz. (15ml) of grease.
6. Install cable. Make sure that the flex cable fully engages into
the clutch square drive socket.
7. Slide coupler on upper drive shaft until fully seated, and
align set screw hole in coupling with hole in upper drive
shaft.
8. Install and tighten set screw (D), and tighten clamping screw
(C).
Nylon Line Head Disassembly Instructions
Note: For normal use, Speed Feed
©
head disassembly is not
necessary. However, if circumstances require
disassembly, follow these instructions.
1. Press top of locking tabs (A) on both sides of Speed Feed
©
head to release cover (B) from eyelet carrier(C).
2. Remove cover from eyelet carrier.
Nylon Line Replacement
Wear Gloves or personal injury may result:
• Cutoff knife is sharp.
• Gearcase and surrounding area may be hot.
1. Cut one piece of line to recommended length.
.080 (2.0 mm) dia. – 20’ (6 m)
.095 (2.4 mm) dia. – 20’ (6 m)
2. Align arrows on top of knob with openings in eyelets.
For more information
scan this QR code.
