Description
Description

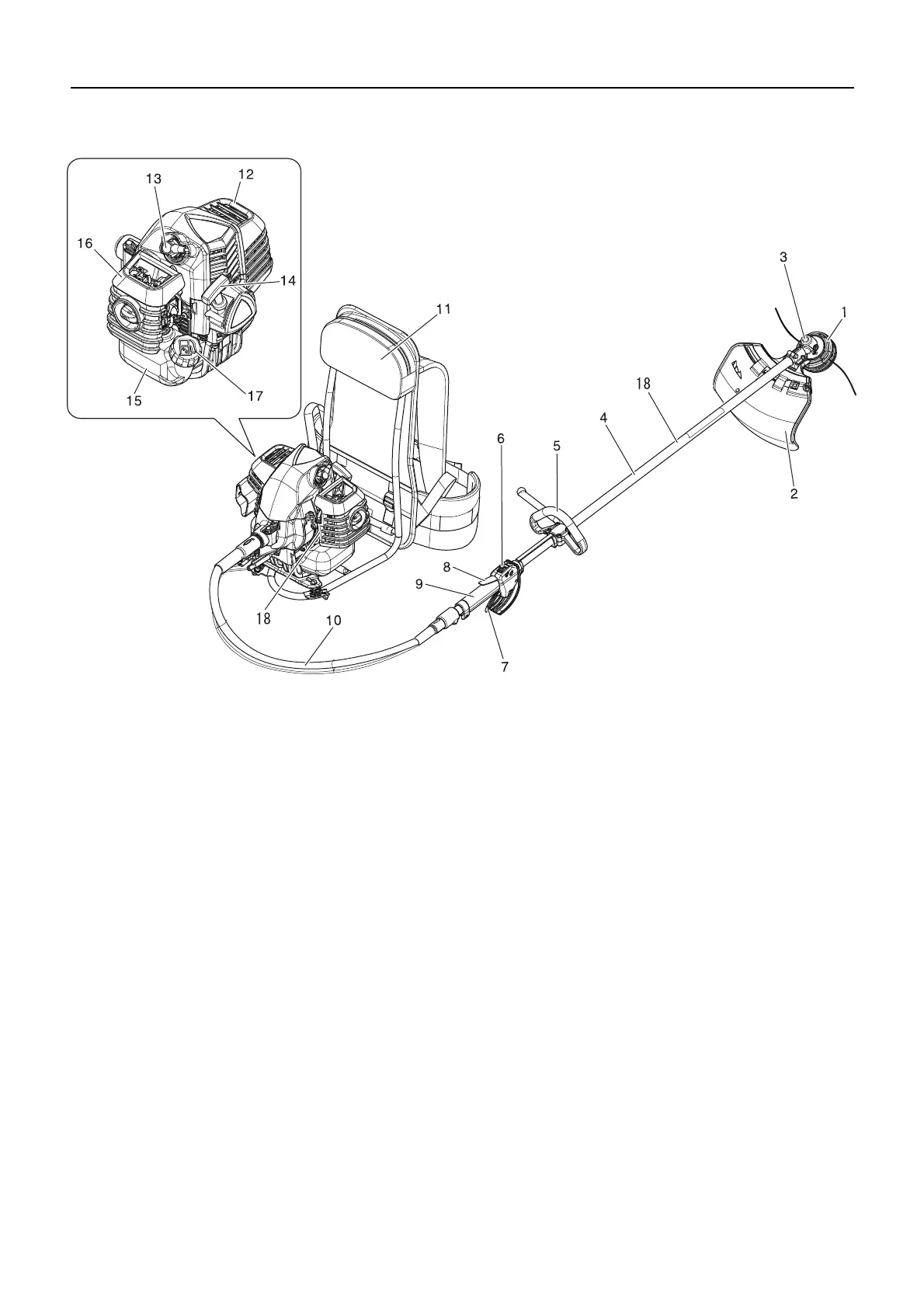

1. Cutting attachment - Nylon line cutting head for cutting
grass and weed.
2. Shield - Device to protect the operator from accidental
contact with the cutting head and thrown objects.
3. Angle transmission - Having two gears to change to
angle of rotating axis.
4. Shaft tube - Part of the unit that provides a casing for
power transmission shaft.
5. Front handle - Handle located towards the cutting de-
vice.
6. Ignition switch - "Slide switch" mounted on top of the
throttle trigger housing, move switch upward to RUN,
downward to STOP position.
7. Throttle trigger - Activated by the operator's finger for
controlling the engine speed.
8. Throttle trigger lockout - Locks throttle trigger in the
idling position until you have a proper grip with your right
hand around the handle.
9. Rear handle - Handle located towards the knapsack
power unit.
10. Flexible shaft assembly - Flexible tube for the power
transmission shaft.
11. Tool bag - For tool and accessories.
12. Silencer cover - Cover the silencer not to make opera-
tor touch to hot surface of silencer.
13. Spark plug
14. Starter handle - Pull handle to start the engine.
15. Fuel tank - Contains fuel and fuel filter.
16. Air cleaner cover - Covers air filter.
17. Fuel tank cap - For closing the fuel tank.
18. Type and serial number
