Before you start
Assembly

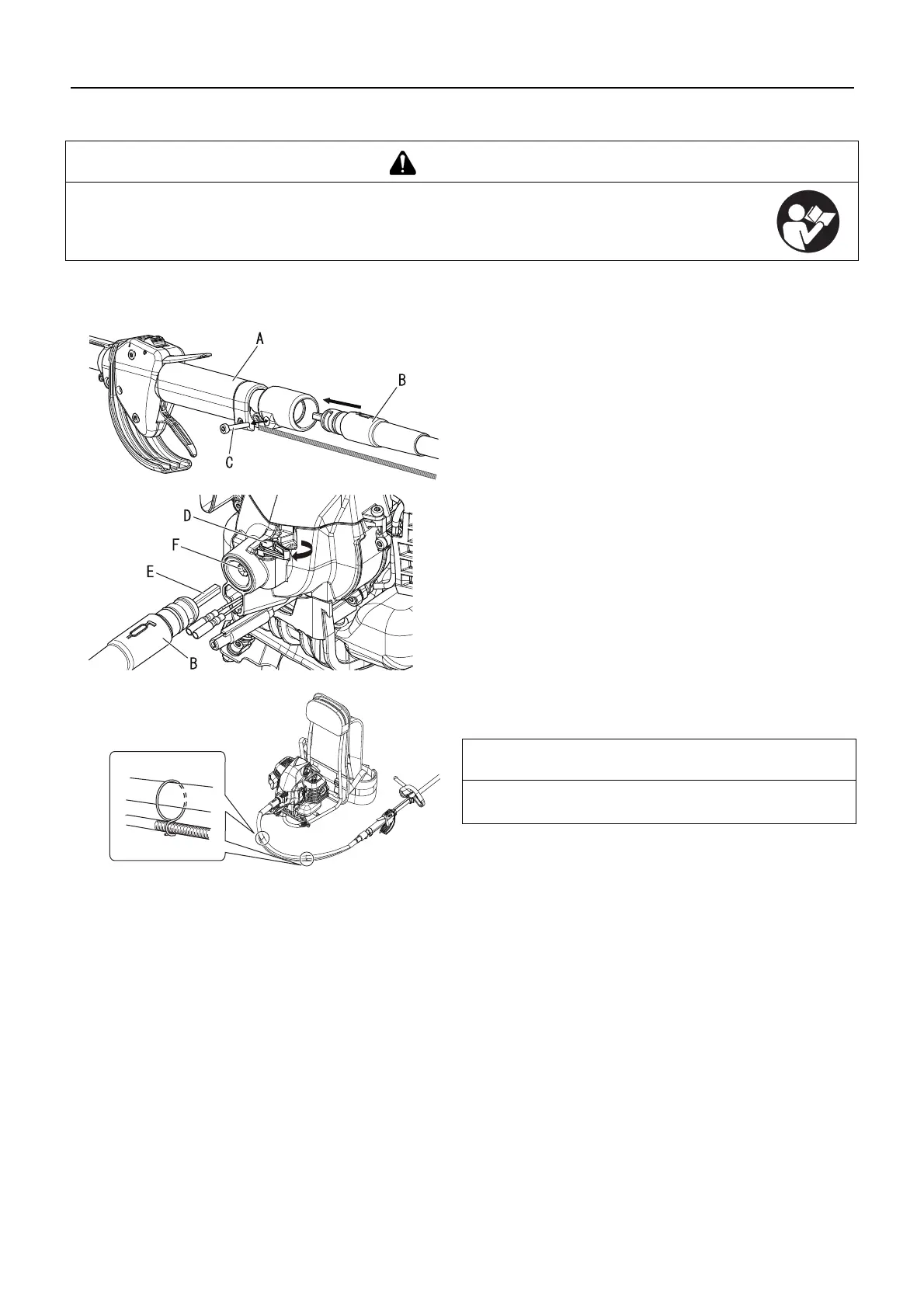

Operation shaft assembly
First stage of assembling is coupling of the trigger tube (A) and
the flexible shaft assembly (B).
Remove the lock bolt (C).
Insert the flexible shaft assembly (B) into the trigger tube (A).
Tighten the lock bolt (C).
Second stage is coupling of the flexible shaft assembly (B) and
the engine.
While opening the lock lever (D) all the way in, connect the
flexible shaft (E) to the drive shaft (F) of the engine.
After set the lock lever (D) free, confirm that the flexible shaft
assembly (B) can not be drawn out and is coupled properly
with the engine.
The two pieces of clip attached to flexible shaft assembly must
be set to appropriate positions on the throttle cable (at equal
distance on the whole length of the flexible shaft assembly).
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
NOTE
To disassemble, reverse assembly instructions. Insert the
plastic cap to the coupler in order to prevent grease leakage
