14

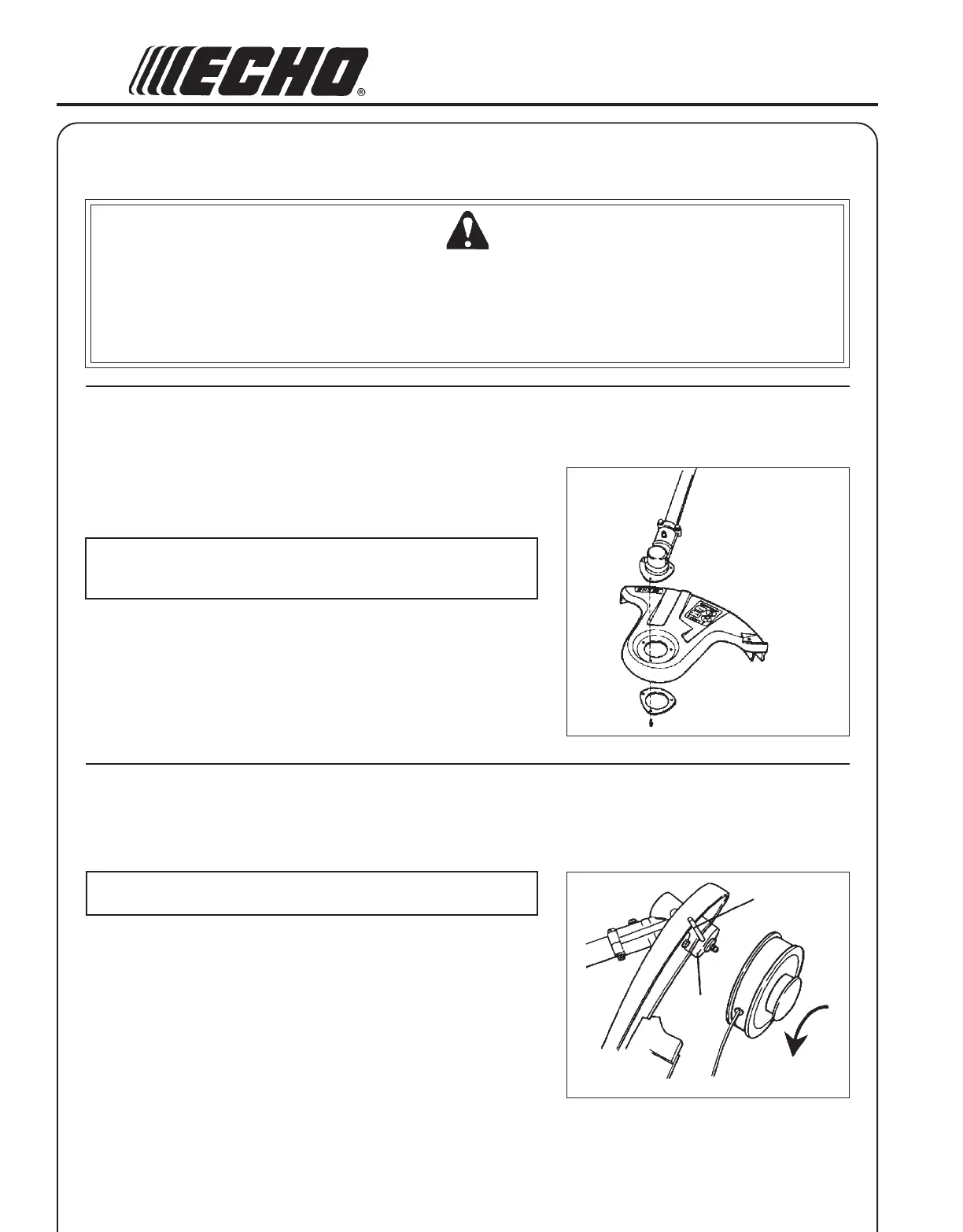

PLASTIC SHIELD INSTALLATION
(for Nylon Line Operation)
Tools Required: Screwdriver.
Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 15mm
screws.
NOTE
The plastic shield is for use with the Nylon Line Head only.
Install Metal Shield when using plastic or metal blades.
1. (SRM-2410) Remove split pin, blade nut and lower plate from PTO
shaft.
1. (SRM-2400) Remove plastic sleeve from PTO shaft.
2. Snap the shield on the bottom of the bearing housing flange.
3. Place shield plate on shield, align holes and install three (3)
screws.
NYLON LINE HEAD INSTALLATION
Tools Required: Head Locking Tool, 17x19mm Scrench
Parts Required: Nylon Line Head.
NOTE
On SRM-2400 use steps 1, 5 and 6 only.)
1. Align locking hole in upper plate (B) with notch in edge of gear
housing and insert head locking tool (A).
2. Remove split pin from hole in PTO shaft.
3. Remove 10mm nut by turning it clockwise (as viewed from under-
side of grass shield) with 17x19mm scrench.
4. Remove lower plate. Retain lower plate, 10mm nut and split pin for
future use.
5. Be sure upper plate (B) remains on PTO shaft.
6. Thread line head onto PTO shaft by turning it counter clockwise
until head is tight against upper plate (B).
A
B
ASSEMBLY
ECHO
APPROVED OPTIONAL ATTACHMENTS
WARNING DANGER
• Use only ECHO approved attachments for these models. Serious injury may result from the use of non approved
attachment combinations. Read and comply with all safety instructions listed in this manual and attachment
manual.
• ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not
been tested and approved by ECHO for use with these units.
