GRASS TRIMMER/BRUSH CUTTER
OPERATOR'S MANUAL
17
A
B
E
D
C
F
G
J
H

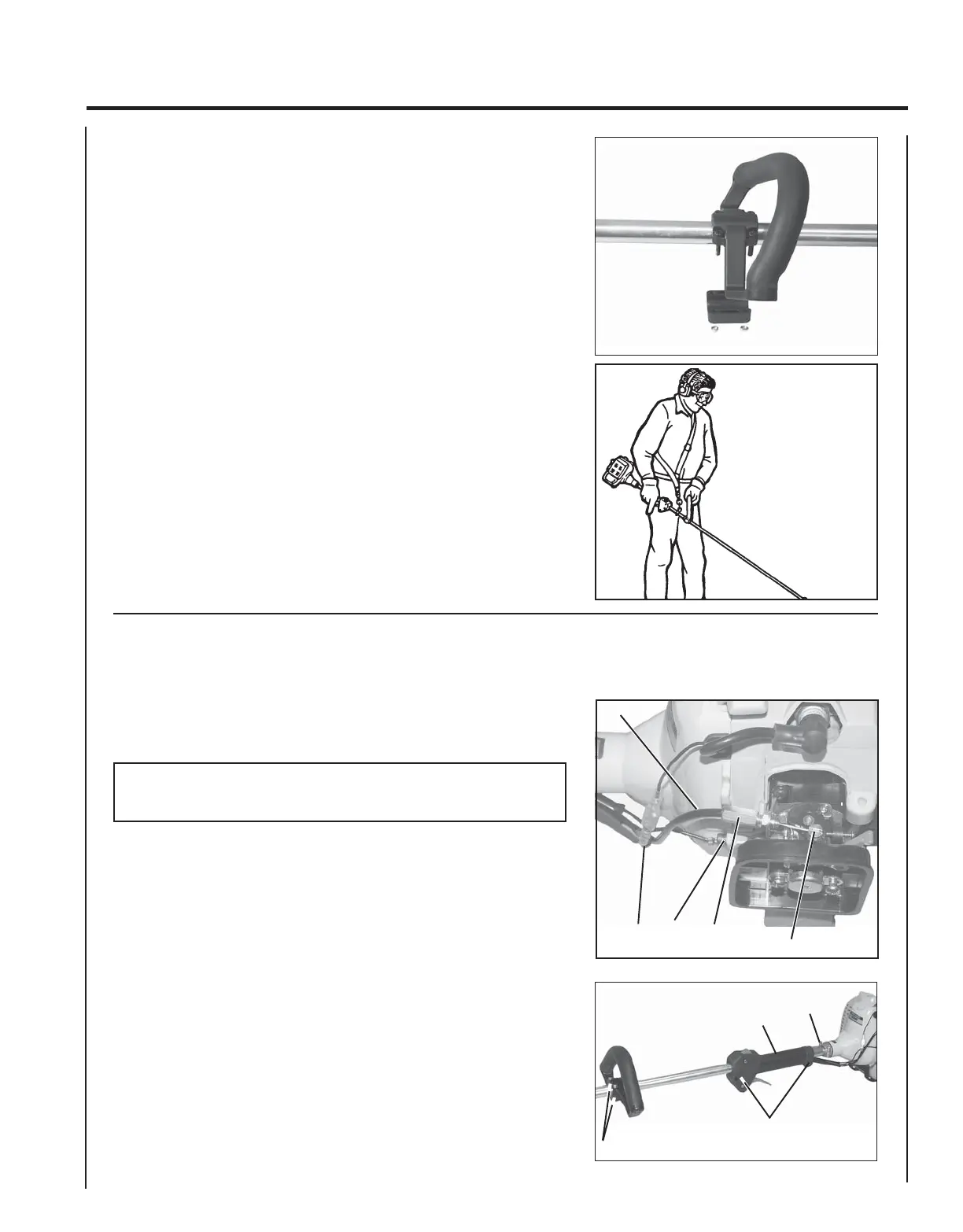

FRONT HANDLE INSTALLATION
Tools Required: Screwdriver.
Parts Required: None
1. Position front handle for comfortable operation and secure with
screws.
U-HANDLE INSTALLATION
Tools Required: 8mm x 10mm Open End Wrench, Slotted Screwdriver,
3mm and 4mm Hex Wrench, Scrench, Pliers.
Parts Required: U-Handle Kit P/N 99944200521
NOTE
On model 2410 use Steps 1, 10, 12, 13, 14B, 15, 17 and 18 only.
1. Close choke and remove air filter cover.
2. Disconnect ignition stop lead (A). Remove bolt (B) and ground
lead.
3. Remove inner throttle linkage from carburetor swivel (C).
4. Remove throttle linkage (D) from throttle linkage fixture (E).
5. Loosen two (2) bolts (F) and pull drive shaft assembly from clutch
case.
6. Loosen two (2) rear handle screws (G) and pull rear handle (H) from
the drive shaft assembly.
7. Loosen four (4) screws and remove front handle (J).
