Echo SRM-2400 TYPE 1E - 09-99 User Manual

GRASS TRIMMER/BRUSH CUTTER
OPERATOR'S MANUAL
19
RR
RR
R
NN
NN
N
PP
PP
P
QQ
QQ
Q
A
B
SRM-2410

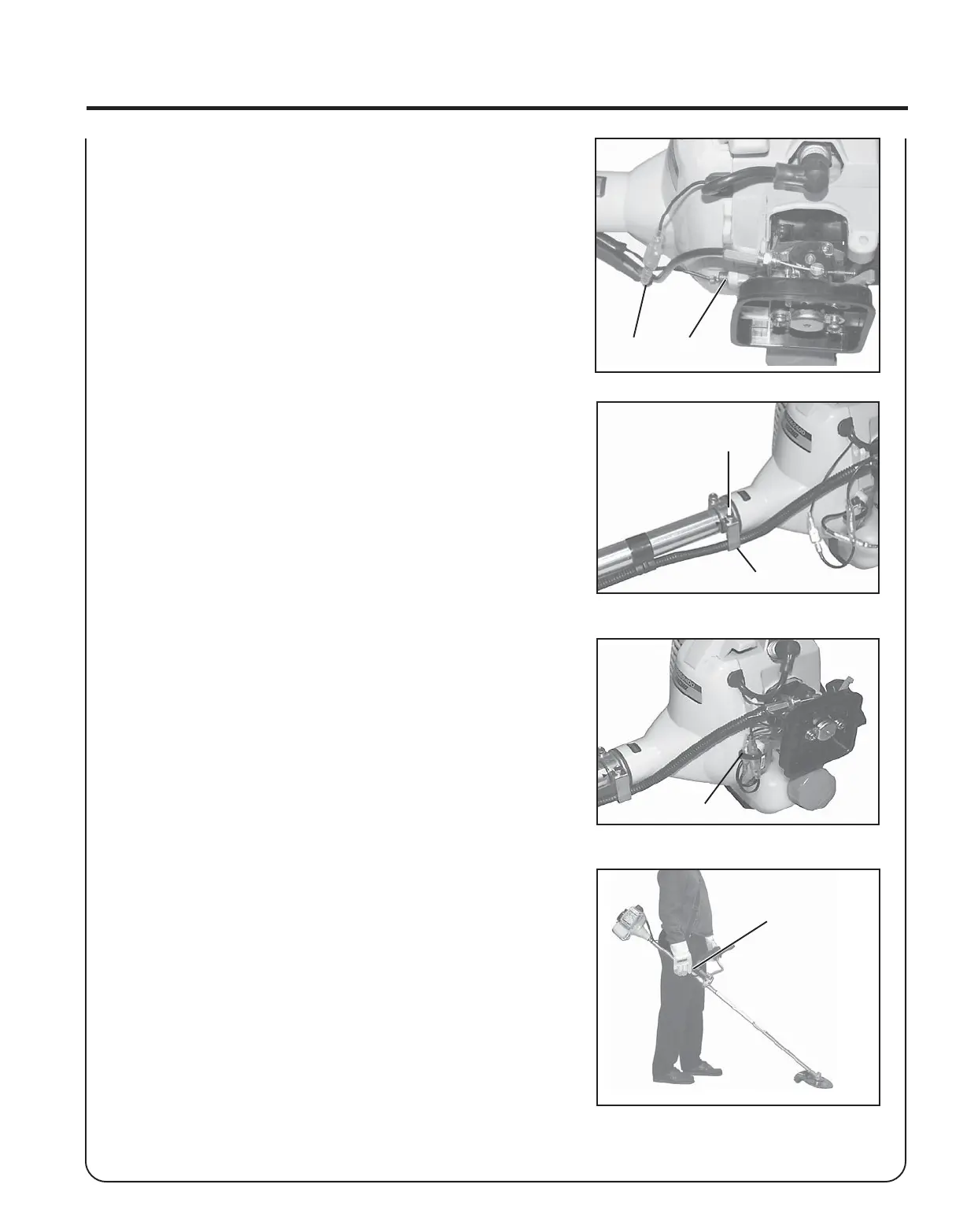

14B. Connect ignition stop lead (A). Install ground lead with bolt (B).
15. Remove left side clutch case bolt (P). Install metal bracket clamp
(Q) with curved end down. Install throttle linkage into bracket
clamp and pinch tight with pliers.
16. Loosely fold ignition leads and retain them with black wire holder
(N).
17. Install air filter and cover.
18. Balance unit.
a. Put on harness and attach unit to harness.
b. Slide harness clamp (R) up or down until unit balances with
cutting attachment approximately 2 - 3" from ground.
c. Tighten harness clamp screw.

Echo SRM-2400 TYPE 1E - 09-99 Specifications

General

Engine Type	2-Stroke
Weight	5.2 kg
Shaft Type	Straight
Starter System	Recoil
Fuel Tank Capacity	14.9 fl. oz (440 ml)
