6. INSTALLATION OF UNIT
● Install the unit firmly.
If not, it may cause the human injuries.
Install the unit correctly according to the following instruction.
For overhead mounting, install the unit to safe location with the
consideration of dropping incident.
● Install the unit to the location with less vibration.
[Procedure of Installation]
<Installation of Unit>
Fix the unit with enclosed screws by using bracket holes(4 locations).
Refer to the picture below.
1．<Positioning>
Set the unit with mounting bracket and fixation spot. Put the mark.
Leave some room in the backside of unit for cable connections.
2．<Installation of Bracket>
Fix it with enclosed screws by using 4 holes on the bracket.
The cutting slits for both edges of bracket’s face to front side.

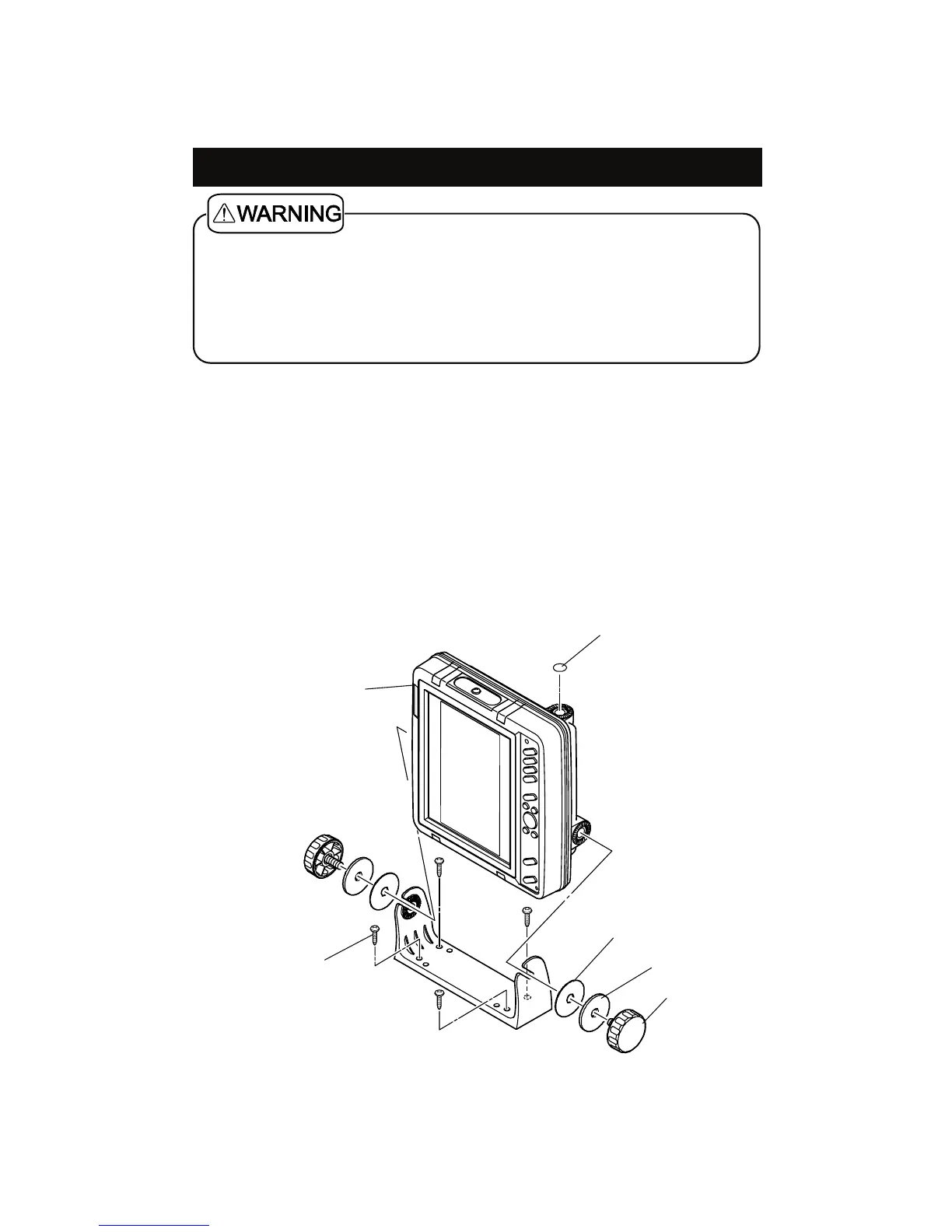

3．<Installation of Unit>
Refer to the picture below and fix the unit.
Display Unit
Rubber Ring
Put the disk plate for unused
hole for knob.
Clam
