Eclipse CD3414 User Manual

65

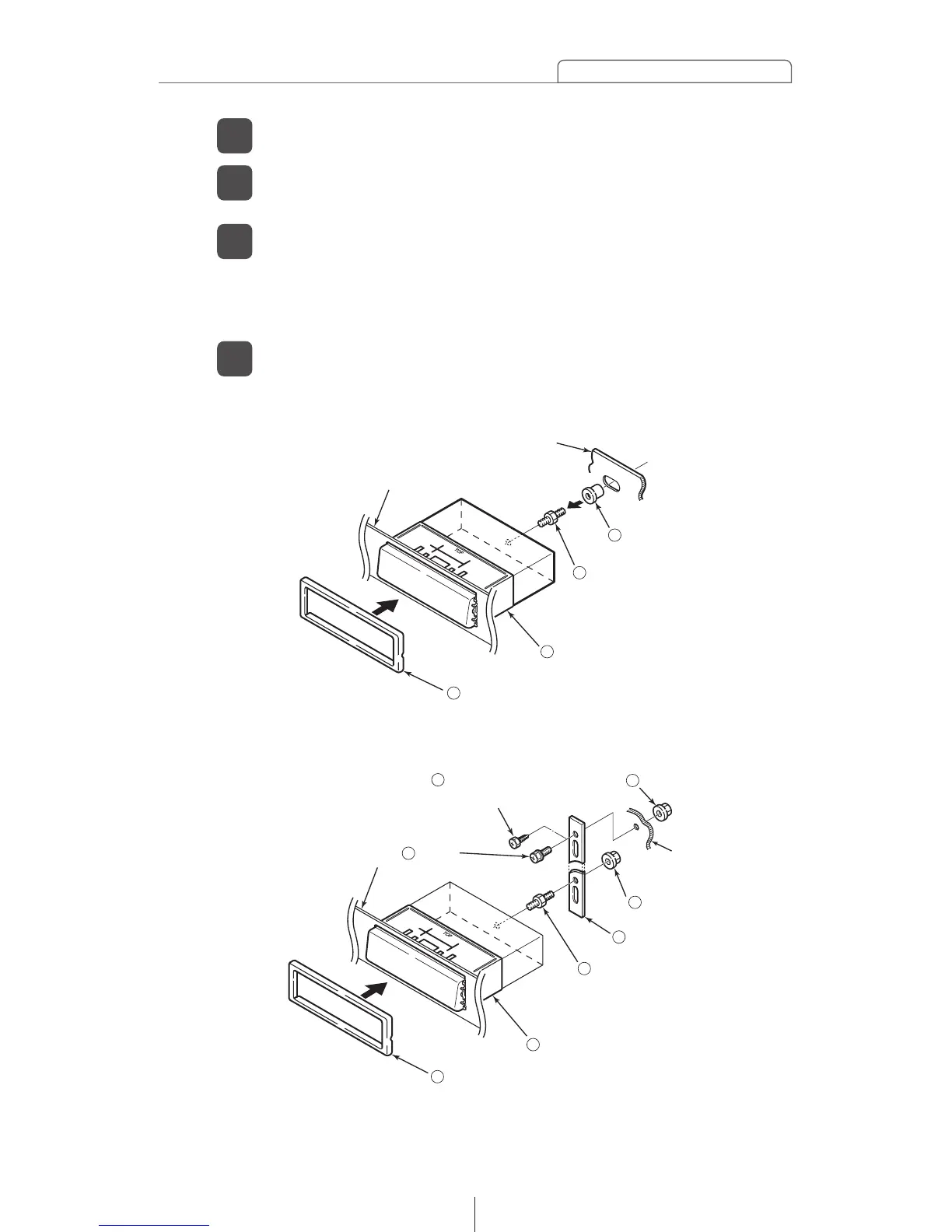

Mounting instruction
Mount the stud bolt to the main unit.
4
Insert the main unit into the mounting sleeve until it locks
in place.
5
Fasten the rear of the main unit using either method [A]
or [B].
6
Install the bezel on the main unit.
7
BEZEL
5
MOUNTING SLEEVE
2
STUD BOLT
8
BUSHING
METAL OF
VEHICLE
DASH BOARD
OR CONSOLE BOX
6
Select method [A] or [B] to suit the interior configuration of the
vehicle.
[A]
BEZEL
5
MOUNTING SLEEVE
2
STUD BOLT
8
REAR BRACKET
4
SELF TAPPING
SCREW (6 x 16mm)
DASH BOARD
OR CONSOLE BOX
7
NUT (5mm)
METAL OF
VEHICLE
11
BOLT
(5 x 20mm)
10
NUT (5mm)
11
[B]
