64

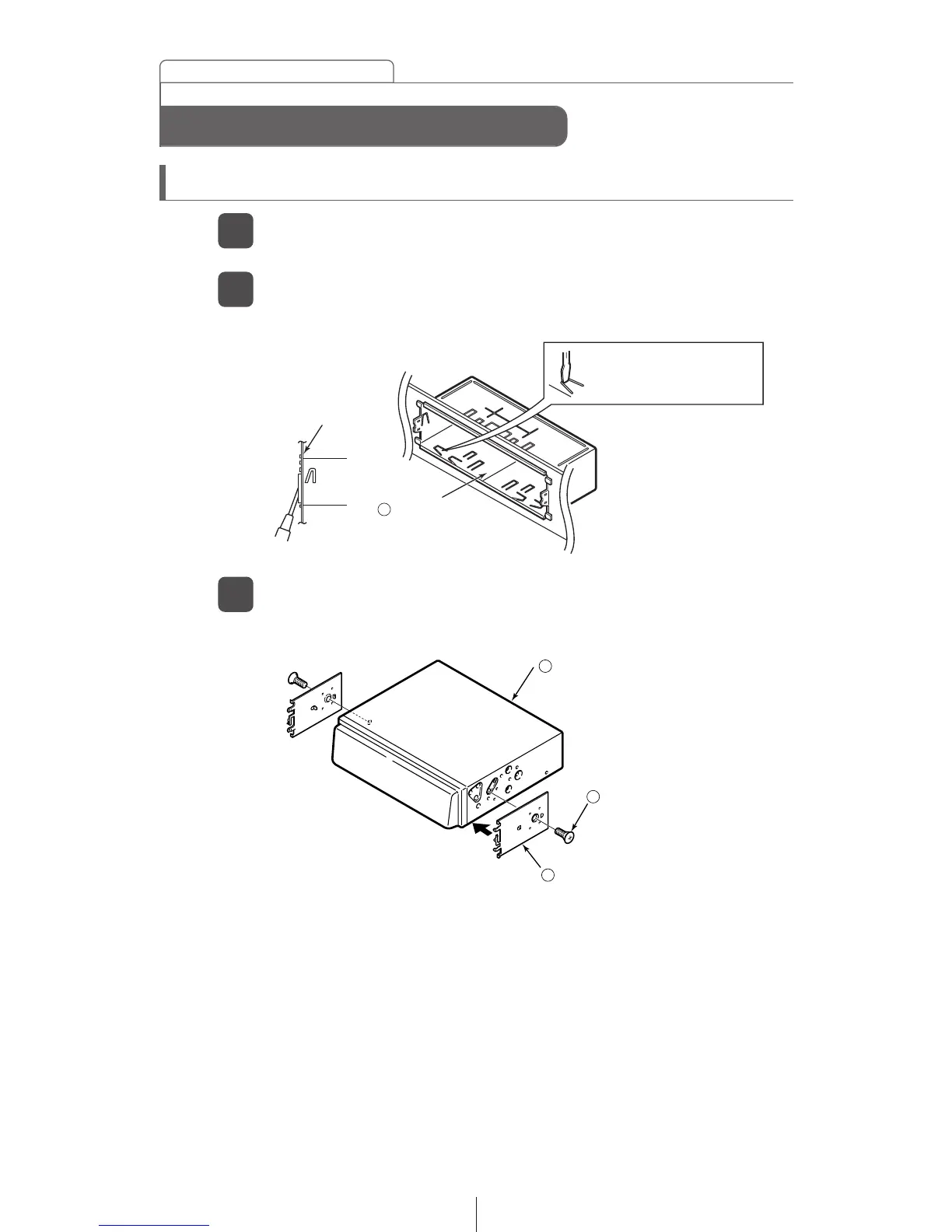

Mounting instruction
Mounting the main unit
Insert the mounting sleeve into the opening in the vehicle
dash board or console box.
1
Use a screwdriver or the like to bend the tabs in the
mounting sleeve to secure the mounting sleeve.
2
Attach the side brackets to the main unit using flathead
screws.
3
BEND THE MOUNTING
T
ABS.
DASH BOARD
OR CONSOLE BOX
MOUNTING
SLEEVE
2
MAIN UNIT
1
SIDE BRACKETS [ x 2 ]
3
FLA
T HEAD
SCREWS [ x 2 ]
(5 x 8mm)
9
Mounting instruction
63
65
Table of Contents
Default Chapter
7
Table of Contents
7
Operating Precautions
10
Notes on Operation
10
About Compact Discs
11
About Cleaning a CD
13
Names of Controls and Parts
14
ESN Security Operating Procedure
15
About ESN
15
How to Operate the ESN (Key CD) Security
16
How to Program the Key CD
16
How to Cancel the Key CD
17
How to Change the Key CD
18
How to Resume Normal Operation (ESN Security Lock Out)
18
What Happens if an Incorrect CD Is Inserted
19
How to Turn the Security Indicator On/Off
20
How to Read the Electronic Serial Number
20
Basic Operation
21
Turning the Power on and off
21
Listening to a CD
22
Listening to the Tuner
23
Adjusting Audio Volume
23
Switching Audio Control Modes
24
VOL (VOLUME) Mode
24
BASS Mode
24
TREB (TREBLE) Mode
24
BAL (BALANCE) Mode
25
FAD (FADER) Mode
25
Enabling the Loudness Control
25
Making Changes with Function Mode
26
Disabling the Guide Tone Feature (for Button Operation)
26
Setting the Time
27
How to Operate the CD Player
28
Listening to Cds
28
Advancing to the Next Track or Returning to the Beginning of the Track Being Played
29
Fast Forward/Rewind
29
Playing the Beginning of Tracks (SCAN)
29
Repeating the same Track (REPEAT)
30
Playing Tracks in Random Order (RANDOM)
30
Ejecting the Disc
31
Displaying CD TEXT
31
How to Operate the MP3 Player
32
About MP3
32
What Is MP3
32
Playable MP3 File Standards
32
ID3 Tags
32
Media
33
Format of Discs
33
File Names
34
Multi-Sessions
34
Playing MP3
34
MP3 Playing Time Display
34
Display Order of MP3 File/Folder Names
34
Listening to MP3 File
35
Advancing to the Next Track (File) or Returning to the Beginning of the Track (File) Being Played
36
Fast Forward/Rewind
36
Skipping to the Next or Previous Folder
36
Return to the Root Directory of the CD
36
Playing the Beginning of Files (SCAN)
37
Repeating the same File (REPEAT)
37
Playing Files in Random Order (RANDOM)
38
Displaying Title
38
How to Operate the Tuner
39
Tuning to a Station
39
Entering Stations into Memory Automatically (the Automatic Preset Mode: ASM)
40
Manually Setting Stations into Memory
41
Preset Station Scan
42
Switching the Display
42
Changing the Reception Sensitivity for Automatic Scanning
43
Changing the Radio Band Location
43
FM Reception Characteristics
44
FM Reception Differs from am
44
Fading out
44
Reception Area of FM Broadcasts
45
Multipath
45
How to Use an Optional Card Remote Control
46
Precautions in Use of the Remote Control
46
Cleaning the Remote Control
46
Turning the Power On/Off
47
Adjusting the Audio Volume
47
Cutting the Volume Instantly (Muting)
47
Switching Playback Modes
48
How to Play the Tuner
48
Selecting the FM/AM Band
48
Selecting a Station (Manually or Automatically)
49
Selecting Preset Stations
49
How to Play Cds
49
Switching Disc Mode
49
Advancing to the Next Track or Returning to the Beginning of the Track Being Played
50
Replacing the Battery
51
How to Use an Optional NOB Remote Control
52
Turning the Power On/Off
52
Adjusting the Audio Volume
52
Cutting the Volume Instantly (Muting)
52
Switching Playback Modes
53
How to Play the Tuner
53
Selecting the FM/AM Band
53
Selecting a Station (Manually or Automatically)
54
Selecting Preset Stations
54
How to Play Cds
54
Switching Disc Mode
54
Advancing to the Next Track or Returning to the Beginning of the Track Being Played
55
Replacing the Battery
56
If You Have a Question
58
Displayed Information (for Troubleshooting)
59
Specifications
62
Before Installation
63
Components
63
Installation Angle
63
Mounting Instruction
64
Mounting the Main Unit
64
Names of Lead Wires and Destinations
66
System
67
How to Contact Customer Service
70
